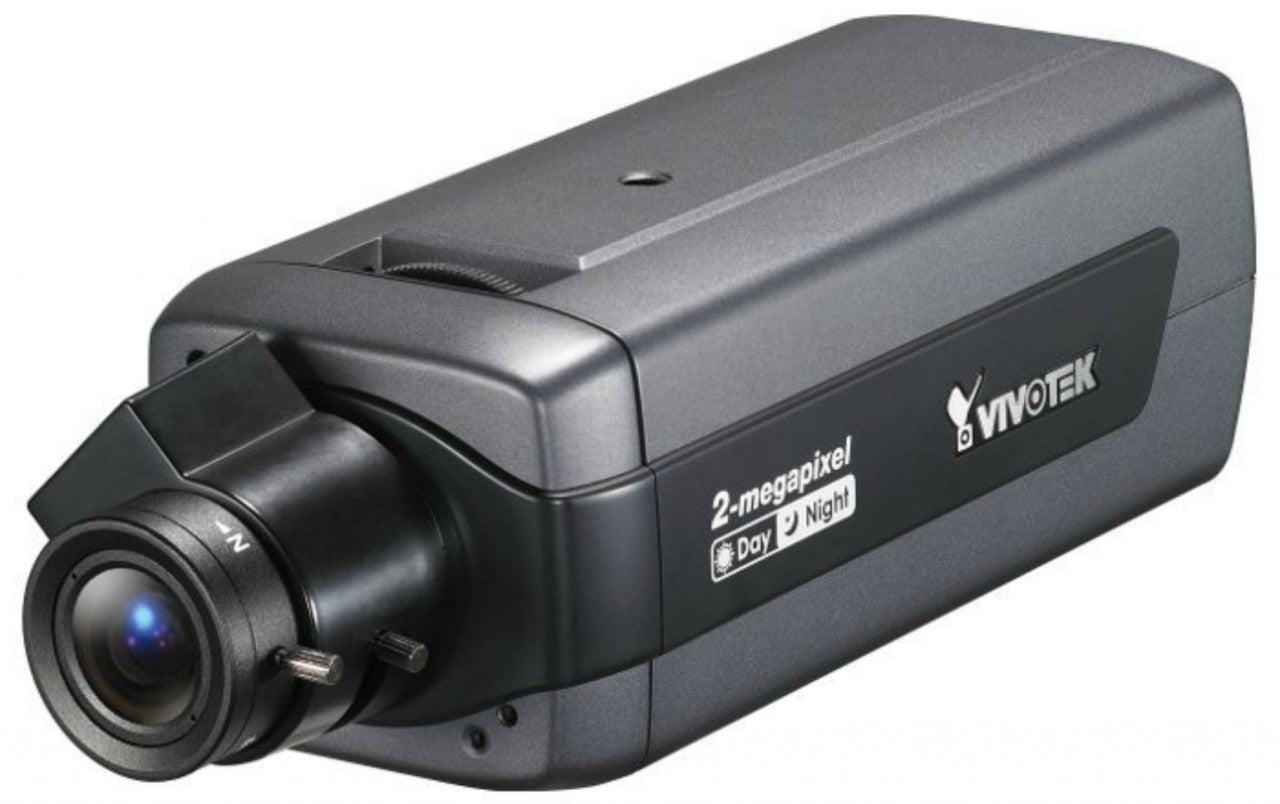

Vivotek IP7161 2 Megapixel Day/Night Network Camera

Vivotek

Vivotek IP7161 2 Megapixel Day/Night Network Camera

Sale price$380.00
Discontinued
SKU: IP7161

Discontinued. Replaced by the IP8161.

Vivotek IP7161 Features

  • Max Resolution: 1600x1200
  • Image Sensor: 1/3.2" CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.8 Lux / F1.6
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: f = 4.5 ~ 10 mm, F1.6
  • Zoom: ePTZ
  • Iris: Auto, DC-Iris
  • Focus: Manual
  • Field of View: 21.8 ~ 43.6° (horizontal)
  • Compression Styles: MPEG-4, MJPEG
  • Frame Rate: MPEG-4: Up to 20 fps at 1280x720, Up to 10 fps at 1600x1200; MJPEG: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure, AGC, AWB, AES, Automatic, manual or scheduled day/night mode, BLC (Backlight Compensation), Supports privacy masks
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: External microphone input, Audio output, External/Internal microphone switch, Supports two-way audio via SIP protocol, Supports audio mute
  • Alarm/Event Management: Triple-window video for motion detection, Tamper detection, One D/I and one D/O for external sensor and alarm, Event notification using HTTP, SMTP or FTP, Local recording of MP4 file
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, SD/SDHC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 6.1 x 2.8 x 2.4" (154 x 72 x 62mm)
  • Weight: 1.5 lbs (662g)
  • Operating Temperature: 32 ~ 122°F (0 ~ 50°C)
  • Operating Humidity: 90% RH
  • Power: 12V DC, 24V AC, Power consumption: Max. 8 W, 802.3af compliant Power-over-Ethernet
  • Warranty: 2 Year
  • What's Included: Power Adapter, Camera Stand, CS-Mount Lens, Software CD, Quick Installation Guide, L-Type Hex Key Wrench

Vivotek IP7161 Overview

VIVOTEK IP7161 is a high-end 2-megapixel network camera with true day and night functions ideally suited for wide, open spaces such as building entrances and airports, or applications requiring accurate identification of individuals, objects, and vehicle license plates. With high-definition 2-megapixel (1600 x 1200) resolution, the IP7161 can deliver extremely clear and detailed images and provide coverage 6 times larger than a VGA camera. Its ePTZ function enables users to quickly move to a target area for close-up shots without moving the camera physically. In addition, multiple video streams can be delivered simultaneously in different resolutions, frame rates and image qualities for viewing on different platforms, so as to meet different needs or bandwidth constraints. To consistently maintain superior image quality during 24-hour surveillance, the IP7161 comes with a built-in removable IR-cut filter to accept IR illumination and an auto-iris lens to adapt to frequent light changes. For safe and secure monitoring, the IP7161 also supports tamper detection so that security staff can be alerted immediately if the camera is blocked, redirected, defocused, or spray-painted. The exceptional activity adaptive streaming can optimize bandwidth usage by allowing for a low frame rate in normal monitoring and a high frame rate during event-triggered recording. The IP7161 includes other advanced features such as a C/CS-mount adjustment ring, SD/SDHC card on-board storage, 802.3af Compliant PoE, two-way audio, andHTTPS encrypted data transmission.
