Vivotek IP8130

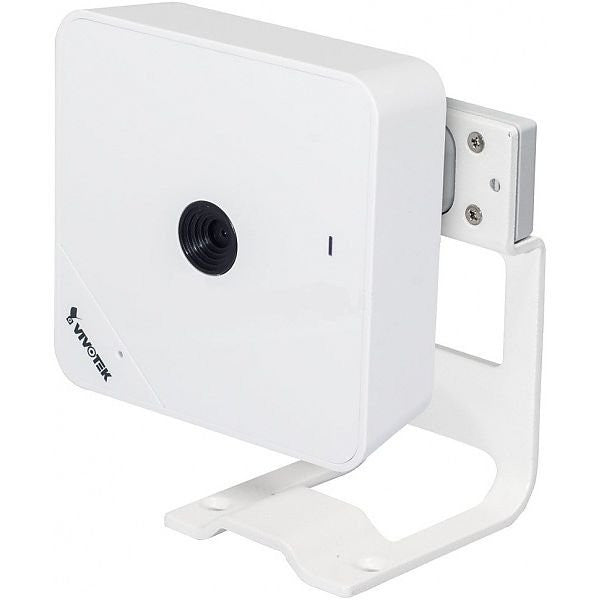

Vivotek IP8130 Front View
Vivotek IP8130 Compact Cube Network Camera
Vivotek IP8130 Banner
Network Camera Store is an Authorized Vivotek Reseller
Vivotek IP8130 microSD card slot
Vivotek IP8130 H.264 compression
Vivotek IP8130 Compact Cube Network Camera


Vivotek IP8130 Compact Cube Network Camera

Sale price$0.00
SKU: IP8130

Vivotek IP8130 Features

Discontinued & Replaced by the Vivotek IP8130W

  • Max Resolution: 1280x800
  • Image Sensor: 1/4" Progressive CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 1.46 Lux, 50 IRE
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed-focal
  • Focal Length: f = 3.45 mm
  • Zoom: 16x digital zoom (4x on IE plug-in, 4x built-in)
  • Focus: Auto
  • Field of View: 47° (horizontal), 31° (vertical), 55° (diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps at 1280x800 in all Compression Styles
  • Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Audio input/output (full duplex), Built-in Microphone & External line output
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection & Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Built-in MicroSD/SDHC Card Slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 31mm (D) x 80mm (W) x 80mm (H)
  • Weight: 83 g
  • Operating Temperature: 0°C ~ 40°C ( 32°F ~ 122°F )
  • Power: PoE Capable & DC 12V, 1.5A
  • Warranty: 2 Year
  • What's Included: IP8130 Network Camera, Camera Stand, Screws, Ethernet Cable, Power Adapter, Quick Installation Guide, Software CD
Vivotek IP8130 Overview
VIVOTEK IP8130 is a compact cube camera designed for indoor surveillance. The elegant design makes it an ideal solution for offices, shops and homes. A built-in microphone further increases the level of surveillance by recording sound within a 5 meter radius. The IP8130 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease. VIVOTEK also provides the smart phone application iViewer, both on iPhone and Android phones, enable users to monitor live video off-site. With built in PoE capabilites & a built inMicroSD/SDHC Card Slot for On-board Storage the IP8130 is a wonderful choice for a network camera that is easy to install. All the features are hear in the newest compact cube camera from Vivotek!
