Vivotek IP8130W

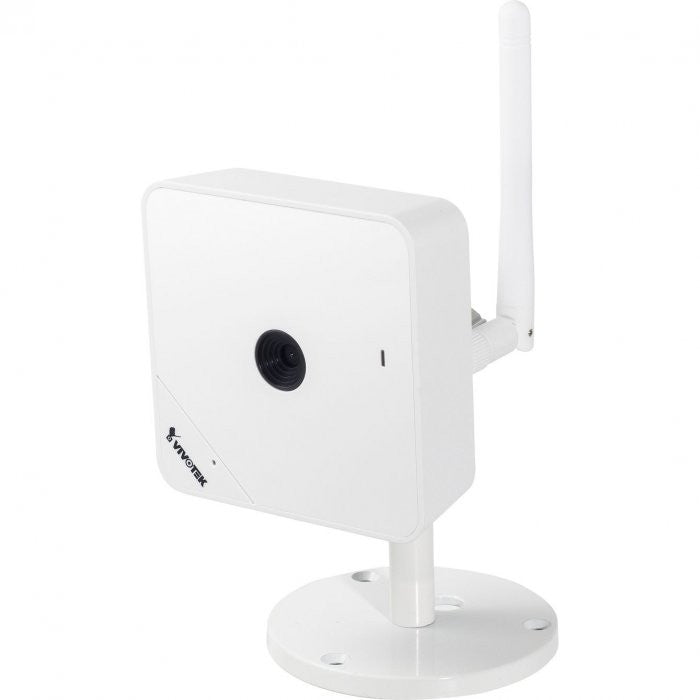

Vivotek IP8130W Front View
Vivotek IP8130W Banner
Network Camera Store is an Authorized Vivotek Reseller
Vivotek IP8130W microSD card slot
Vivotek IP8130W H.264 compression
Vivotek IP8130W Compact Cube Network Camera


Vivotek IP8130W Compact Cube Network Camera

Sale price$190.00
SKU: IP8130W


Vivotek IP8130W Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/4" Progressive CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 1.46 Lux, 50 IRE
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed-focal
  • Focal Length: f = 3.45 mm
  • Zoom: 16x digital zoom (4x on IE plug-in, 4x built-in)
  • Focus: Auto
  • Field of View: 47° (horizontal), 31° (vertical), 55° (diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps at 1280x800 in all Compressions
  • Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Audio input/output (full duplex), Built-in Microphone & External line output
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection & Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Built-in MicroSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 31mm (D) x 80mm (W) x 80mm (H)
  • Weight: 99 g
  • Operating Temperature: 0°C ~ 40°C ( 32°F ~ 122°F )
  • Power: 12V DC
  • Warranty: 2 Year
  • What's Included: IP8130W Network Camera, Quick installation guide, warranty card, camera mounting kit, Ethernet cable
Vivotek IP8130W Overview

VIVOTEK IP8130W is a compact cube camera designed for indoor surveillance. The elegant design makes it an ideal solution for offices, shops and homes. A built-in microphone further increases the level of surveillance by recording sound within a 6 meter radius.The IP8130W supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Moreover, the IP8130W boasts 802.11b/g/n compatible wireless connection, making installation easier and more cost-efficient. The WPS function of IP8130W makes wireless configuration easy and straightforward. Together with the multi-lingual 32-channel recording software ST7501, users can set up an easy-to-use IP surveillance system with ease. VIVOTEK also provides the smart phone application iViewer, both on iPhone and Android phones, enable users to monitor live video off-site. All the features are hear in the newest wireless compact cube camera from Vivotek!
