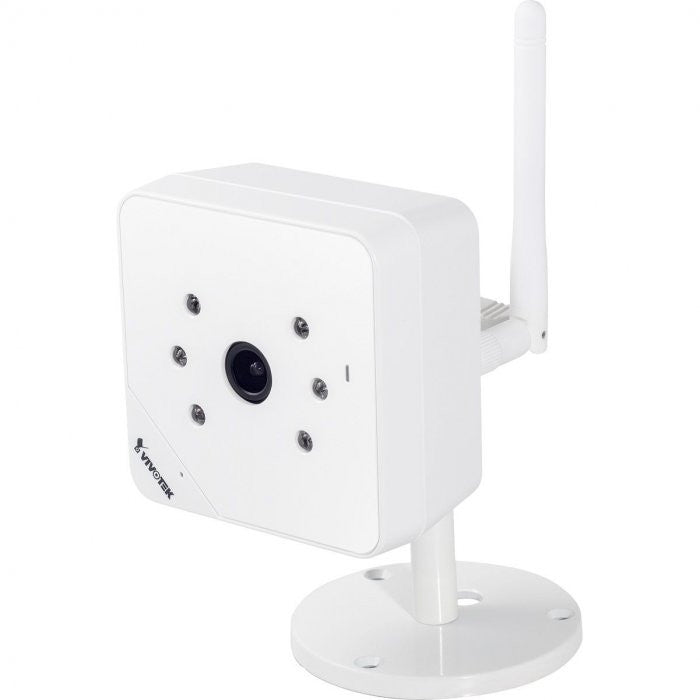

Vivotek IP8131W Compact Cube Network Camera

Vivotek

Vivotek IP8131W Compact Cube Network Camera

Sale price$200.00
Discontinued
SKU: IP8131W

Discontinued.

Vivotek IP8131W Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/4" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.3 Lux, 50 IRE (Color), 0.001 Lux, 50 IRE (B/W)
  • IR Illuminators: Yes
  • IR Illuminator Range: effective up to 6 meters
  • Lens Type: Fixed-focal
  • Focal Length: f = 3.6 mm, F1.8
  • Zoom: ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)
  • Focus: Auto
  • Field of View: 60° (horizontal), 39° (Vertical), & 70° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps at 1280x800 in both compressions
  • Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, effective up to 5m
  • Audio Capabilities: Audio input/output (full duplex), Built-in Microphone & External line output
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, Built-in MicroSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 46mm (D) x 80mm (W) x 80mm (H)
  • Weight: 138 g
  • Operating Temperature: 0°C ~ 40°C
  • Power: 12V DC
  • Warranty: 2 Year
  • What's Included: IP8131W, camera stand, screws, power adapter, quick installation guide, warranty card, Ethernet cable
Vivotek IP8131W Overview

VIVOTEK IP8131W is a compact cube camera designed for indoor surveillance. The elegant design makes it an ideal solution for offices, shops and homes. A built-in microphone further increases the level of surveillance by recording sound within a 6 meter radius. Moreover, the IP8131W is equipped with IR LEDs and IR-cut filter, providing clear video in completely dark environments.The IP8131W supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Moreover, the IP8131W boasts 802.11b/g/n compatible wireless connection, making installation easier and more cost-efficient. The WPS function of IP8131W makes wireless configuration easy and straightforward. Together with the multi-lingual 32-channel recording software ST7501, users can set up an easy-to-use IP surveillance system with ease. VIVOTEK also provides the smart phone application iViewer, both on iPhone and Android phones, enable users to monitor live video off-site.
