Vivotek IP8132 HD H.264 IP Network Camera

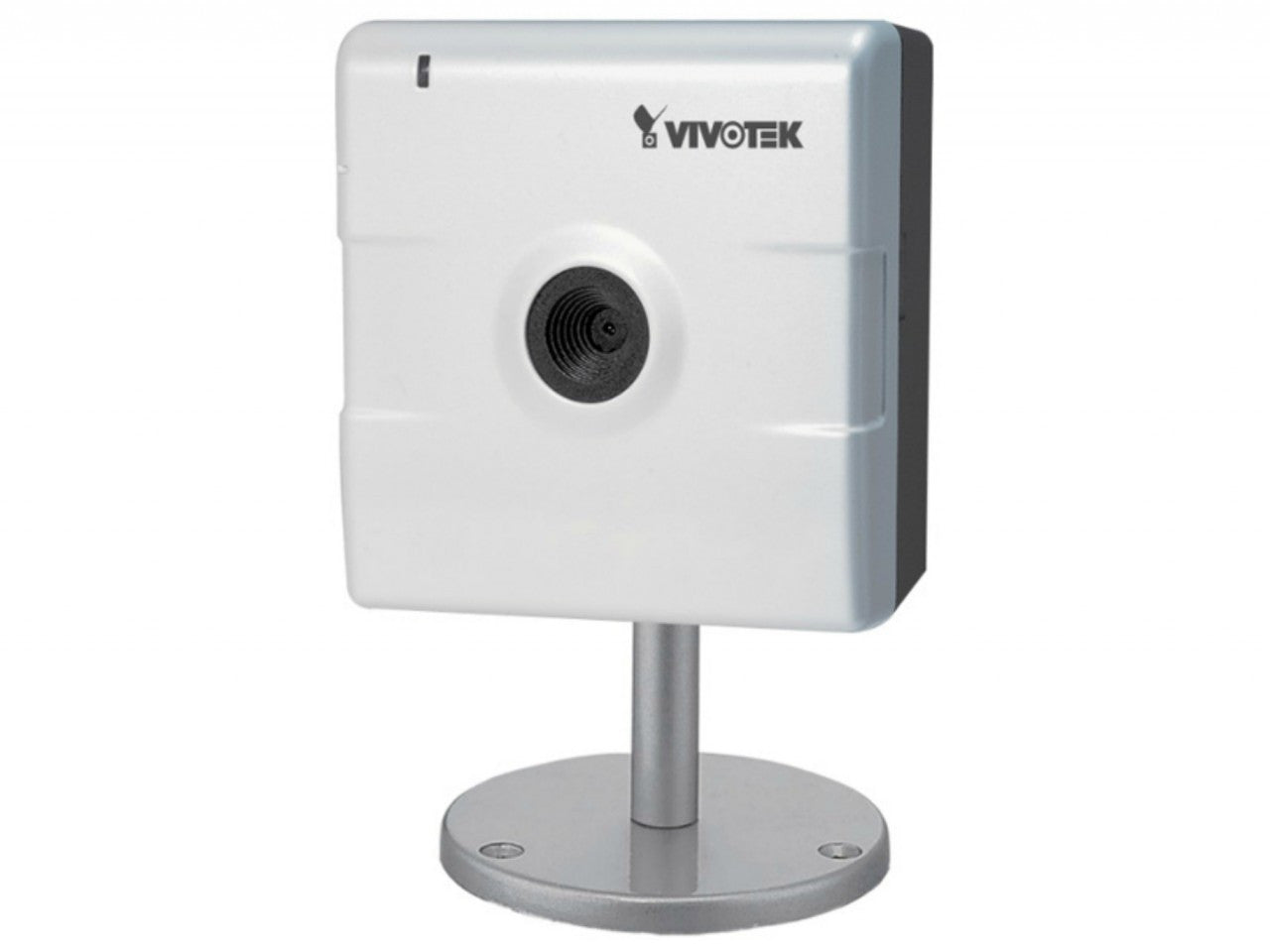

Front View
Back View
Vivotek IP8132 HD H.264 IP Network Camera


Vivotek IP8132 HD H.264 IP Network Camera

Sale price$0.00
SKU: IP8132

Vivotek IP8132 Features

Discontinued & Replaced by the IP8133 or the IP8131

  • Resolution: 1280x800 Resolution
  • Image Sensor: 1/4" CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 3.0 Lux/F2.4 (typical)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Board Lens F 2.4
  • Focal Length: f=3.45 mm
  • Field of View: 58.1° (horizontal) 37.9° (vertical) 65.9° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30 fps at 1280x800
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure, AGC AWB AES, Supports privacy masks, BLC (Backlight compensation)
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Supports Audio Mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, or FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: IP55 rating against dust and dripping water
  • Weight: 0.39 lb (180 g)
  • Operating Temperature: 32-104 °F (0-40 °C)
  • Operating Humidity: 90%
  • Power: 5V DC, Power consumption: Max. 3.4 W
  • Warranty: 2 Years

Vivotek IP8132 Overview

The Vivotek IP8132 fixed 1 megapixel network IP camera is an ideal security camera for home use. With a compact, sleek design, the IP8132 can be easily mounted indiscreetly for home monitoring. With a 1 megapixel image sensor, the Vivotek IP8132 provides high quality video at 1280x800 resolution with 30 frames per second. With H.264 compression, the IP8132 provides quality video while still minimizing network bandwidth and video file size. Simultaneous streaming is supported allowing users or software to view separate video streams with customizable video resolution, frame rate and video quality. The Vivotek IP8132 is an ideal Nanny Cam for viewing children, elderly or even pets while away. The IP8132 also includes tamper detection for alerts of video blockage, redirecting, defocusing and spray-painting. The onboard MicroSD card slot allows for onboard recording of a PC cannot be connected with recording software. The Vivotek IP8132 includes free PC based IP recording and monitoring software allowing 32 Vivotek devices to be connected.
