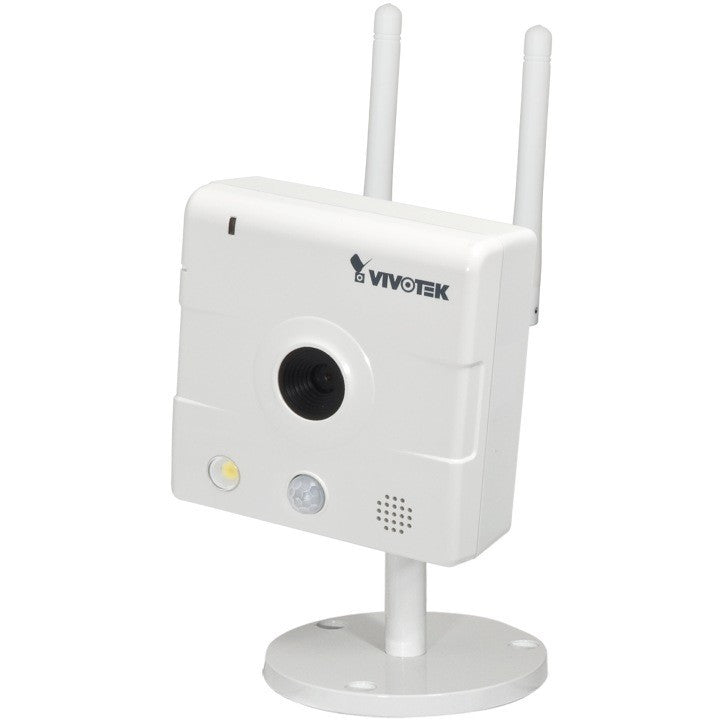

Vivotek IP8133W HD H.264 Wireless Camera

Discontinued; replaced by the IP8160-W.

Vivotek IP8133W Features

• Max Resolution: 1280x800
• Image Sensor: 1/4" CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 3.0 Lux @ F2.4 (color)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed board lens
• Focal Length: 3.45 mm, F2.4
• Field of View: 47.4° (H) x 30.6° (V) 54.7° (D)
• Compression Styles: H.264, MPEG-4 & MJPEG
• Frame Rate: Up to 30 fps @ 1280x800 in all compression styles
• Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Supports privacy masks, BLC (Backlight compensation)
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Built-in speaker & mic for 2-way audio
• Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection, PIR (Passive Infrared Sensor) for human detection, White-light illuminators for low light condition when event triggered
• ONVIF: Yes
• Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, Wireless: WEP, WPA-PSK, WPA2, WPS - Wi-Fi Protected Setup
• Users: 10 clients on-line monitoring at the same time
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 32mm (D) x 79mm (W) x 80mm (H)
• Weight: 195 g
• Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F )
• Operating Humidity: 90%
• Power: 5V DC, Power consumption: Max. 4.7 W
• Warranty: 2 Years

Vivotek IP8133W Overview

VIVOTEK IP8133W is an easy-to-use network camera specifically designed for home security applications with a compact, stylish exterior. With a camera with a 1-megapixel sensor enabling viewing resolution of 1280x800 at 30 fps, users need to look no further for an all-in-one camera capable of capturing high quality, high resolution video. Embedded with the multimedia SoC, the camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms. With this network camera, a user can quickly and easily view children, the elderly, or even pets with live, clear videos while away from home. The camera also includes tamper detection and VIVOTEK's 32-channel recording software. With all this and more, the IP8133W is the ideal solution for your surveillance needs.
