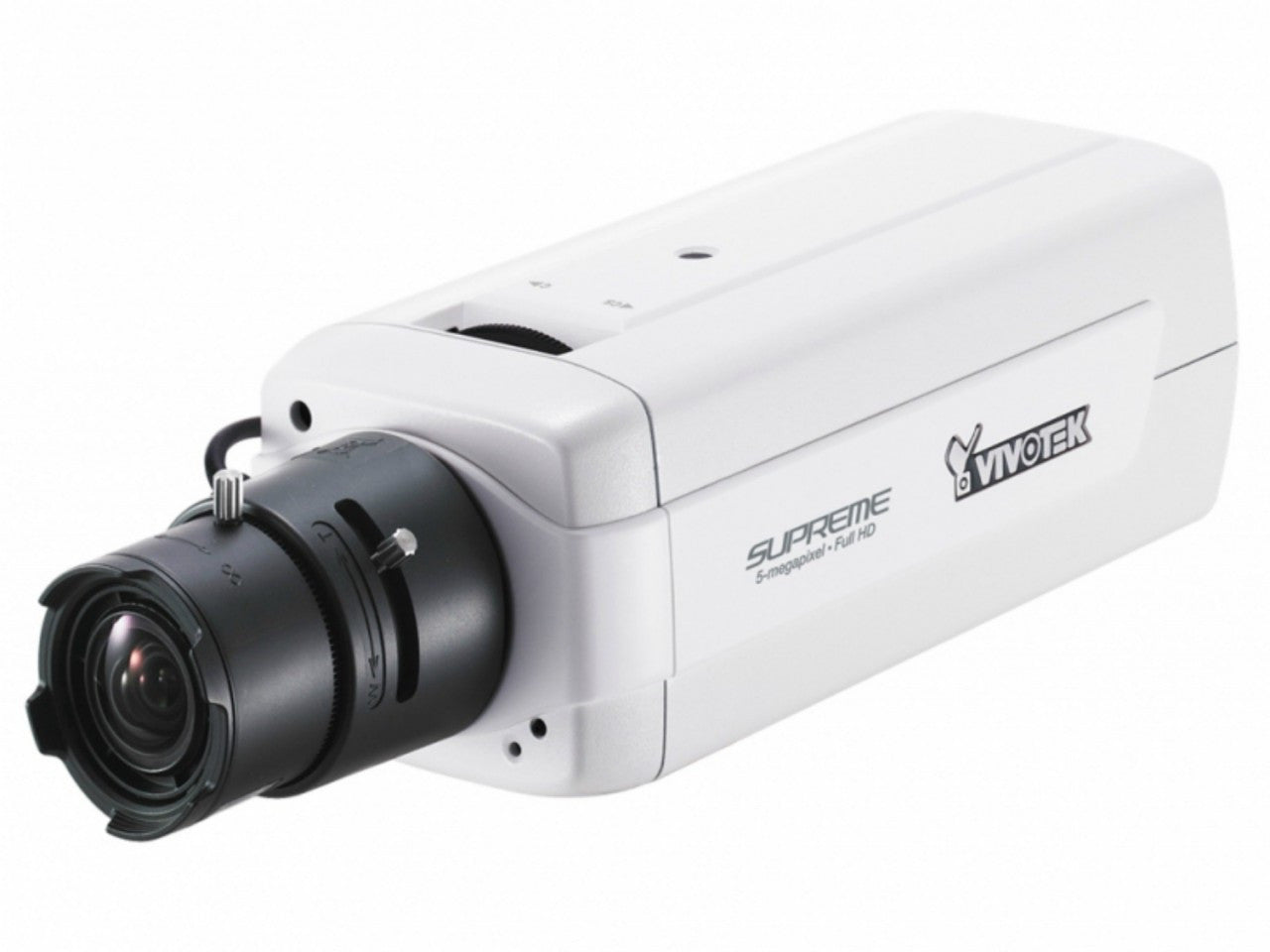

Vivotek IP8151 Front View
Vivotek IP8151 Back View
Vivotek IP8151 Rear View B/W
Vivotek IP8151 whats included
Network Camera Store is an Authorized Vivotek Reseller
Vivotek IP8151 Banner
Vivotek IP8151 WDR Feature
Vivotek IP8151 H.264 Compression Style
Vivotek IP8151 Micro SD/SDHC Card Slot
Vivotek IP8151 Removable IR Cut Filter
Vivotek IP8151 Supreme Day/Night Network IP Camera

Vivotek

Vivotek IP8151 Supreme Day/Night Network IP Camera

Sale price$0.00
Discontinued
SKU: IP8151

Contact

Vivotek IP8151 Features

Discontinued & Replaced by the IP8151P

  • Max Resolution: 1280x1024
  • Image Sensor: 1/3" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.04 Lux / F1.2 ( typical ), Supreme Night Visibility: 0.001 Lux / F1.2 ( B/W )
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: F1.2 Varifocal
  • Focal Length: 3.1 ~ 8 mm
  • Zoom: N/A
  • Iris: Auto iris
  • Focus: Manual
  • Field of View: 35.2° ~ 86.7° (horizontal) 26.5° ~ 64.4° (vertical) 43.9° ~ 110.3° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30 fps in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), WDR enhanced
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: External microphone input, Audio output, External/Internal microphone switch, Supports two-way audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: No
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, SD/SDHC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 154mm (D) x 72mm (W) x 62mm (H)
  • Weight: 670 g
  • Operating Temperature: -10 ~ 50 °C (14 ~ 122 °F )
  • Operating Humidity: 90%
  • Power: 802.3af compliant Power-over-Ethernet (Class 2), 12V DC, 24V AC, Power consumption: Max. 3.6 W
  • Warranty: 3 Years
  • Whats incleded: IP8151, Lens, L-type Hex Key Wrench, Camera Stand, Power Adapter, Quick Installation Guide, Software CD, Warranty Card.

Vivotek IP8151 Overview

VIVOTEK IP8151 represent the next-generation in video quality in network cameras. As part of VIVOTEK's SUPREME Series, the cameras feature the utmost in picture clarity through utilization of SONY's latest sensor technology, dubbed "ExmorTM ", which enables the camera to capture exceptional details during daytime, as well as to offer unparalleled visibility under low-light conditions through its Supreme Night Visibility feature. Additional value-added functions that give users more flexibility and efficiency of use include WDR Enhancement, which allows users to identify image details in extremely bright and dark environmentsThe Vivotek IP8151 Supreme series day/night megapixel network IP camera is a professional surveillance solution for any type of application. With a 1.3 megapixel image sensor (using the Sony "ExMor" sensor), the IP8151 offers exceptional video quality at 1280 x 1024 resolutions with 30fps. The IR-Cut filter and 2D noise reduction offer crystal clear video both during the day and night. The Vari-focal and auto-iris lens allow for better video quality and optimal viewing angles. The IP8151 offers a CS or C mount adjustment ring allowing better flexibility of lens choices. This is ideal for installers/integrators as it allows for a wide array of applications. The onboard SD memory card slot allows for onboard storage of video or snapshots. The H.264, MPEG-4 and MJPEG multi-compression methods allow simultaneous streaming in more than one compression method. Each stream can have custom settings for frame rate, resolution and quality. The Vivotek IP8151 supports many other features including HTTPS encryption, PoE (Power over Ethernet), ePTZ and ONVIF support. The IP8151 comes with free IP camera software allowing you to record up to 32 Vivotek devices on a PC. The IP8151 features a myriad of other high-end features such as SD/SDHC card slot, PoE, and multiple streams, making it the ideal choice for the most demanding monitoring applications. By providing the best quality sharp, smooth video, plus exceptional performance in low-light conditions, the IP8151 can secure a variety of sites such as retail stores, school campuses, and much more.
