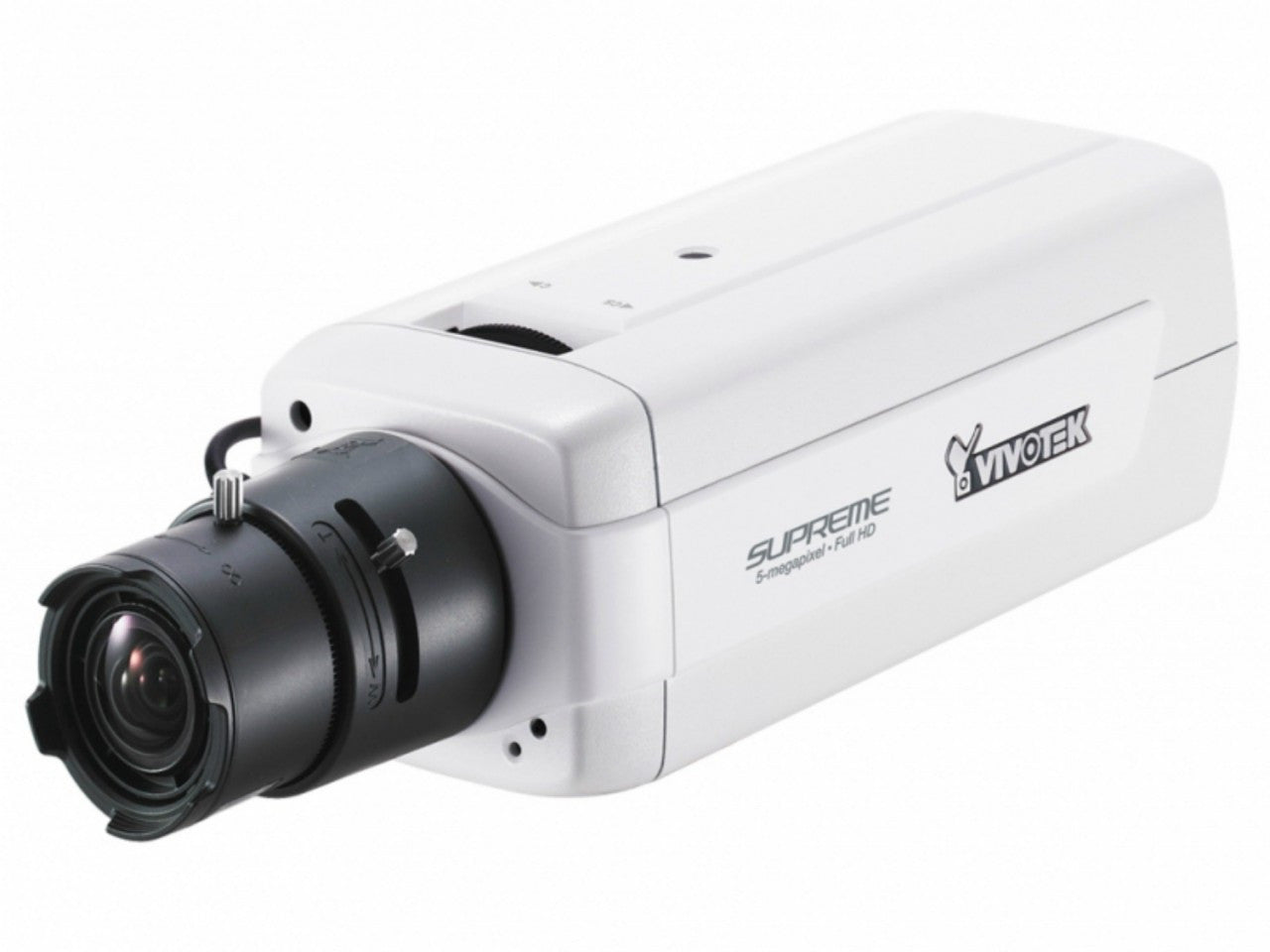

Vivotek IP8151P Supreme Day/Night Network IP Camera

Discontinued, replaced by the IP8155HP.

Vivotek IP8151P Features

• Max Resolution: 1280x1024
• Image Sensor: 1/3" CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.04 Lux / F1.2 ( typical ), Supreme Night Visibility: y, 0.001 Lux / F1.2 ( B/W )
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: F1.2 Varifocal
• Focal Length: 3.1 ~ 8 mm
• Zoom: N/A
• Iris: P-iris
• Focus: Manual & Focus Assist
• Field of View: 35.2° ~ 86.7° (horizontal) 26.5° ~ 64.4° (vertical) 43.9° ~ 110.3° (diagonal)
• Compression Styles: H.264, MPEG-4 & MJPEG
• Frame Rate: Up to 30 fps in all Compression Styles
• Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), WDR enhanced
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: External microphone input, Audio output, External/Internal microphone switch, Supports two-way audio, Supports audio mute
• Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
• ONVIF: No
• Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
• Users: 10 clients on-line monitoring at the same time
• On-board Storage: Yes, SD/SDHC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 154mm (D) x 72mm (W) x 62mm (H)
• Weight: 675 g (Without lens)
• Operating Temperature: -10 ~ 50 °C (14 ~ 122 °F )
• Operating Humidity: 90%
• Power: 802.3af compliant Power-over-Ethernet (Class 2), 12V DC, 24V AC, Power consumption: Max. 3.6 W
• Warranty: 3 Years
• Whats Included: IP8151P, Lens, L-type Hex Key Wrench, Camera Stand, Power Adapter, Quick Installation Guide, Software CD, Warranty Card.

Vivotek IP8151P Overview

The Vivotek IP8151P is a professional fixed network camera from Vivotek's Supreme Series. It is built around an advanced Sony "Exmor" 1.3 Megapixel CMOS image sensor. Combining this technology with a Vari-focal, P-iris Lens, the IP8151P provides some of the industry's highest quality images, whether it be in bright daylight, or dimly lit nighttime environments. WDR (wide dynamic range) enhancement provides crisp contrast, and high detail, enabling you to identify the most minute details in your surveillance area over the broadest range of lighting conditions. The Sony back-illuminated CMOS sensor technology has been proven and refined in its use in digital cameras and camcorders. Its ability to capture detailed video in extreme bright and ultra low light conditions provide the Vivotek IP8151P with unparalleled capabilities and performance. At 1.3 megapixels, there is little detail that escapes notice, especially considering that the IP8151P captures it at a full 30fps and makes use of the H.264 video compression standard. These features enables you to not only capture high detail, but also allow you to do so even when objects are moving at high speed. Complimenting the imaging technology, the IP8151P adds the precision of a P-iris lens. Driven by a stepping motor, a P-iris lens allows software control of its iris with utmost precision. This allows the IP8151P to adapt the opening of the iris and control the depth of field as required to keep images crisp and sharp and provide you with the most accurate surveillance over a wide range of varying conditions. A focus assist button provides you with an easy and accurate way to make sure that you can set up your camera to see what you need to see in your surveillance area. If you require more from the IP8151, there are a number of interchangeable lens options that will enable you to tailor and enhance your installation to your specific needs. WDR Enhancement, an SDHC card slot, PoE, multiple streams, ONVIF support, and a host of advanced features make the Vivotek IP8151P a professional solution when uncompromised image, and ultimate quality surveillance are what you require.

VIVOTEK IP8151P represents the next-generation in video quality in network cameras. As one of the VIVOTEK's SUPREME Series products, users will be able to experience the utmost in picture clarity through utilization of SONY's latest sensor technology, dubbed "Exmor", which enables the IP8151P to capture exceptional details during daytime, as well as offer unparalleled visibility under low-light conditions through its Supreme Night Visibility feature. Together with WDR enhancement, users can identify image details in extremely bright as well as dark environments. The IP8151P comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepping motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. In addition, the IP8151P is also equipped with a focus assist button to allow users to precisely adjust the camera focus. After pushing thefocus assist button on the camera unit, an indicator will be displayed onscreen with detailed focus information, which will change in accordance with the manual adjustment. Moreover, continuing to push the button will zoom in on the target area for fine tuning, resulting in better usability and picture clarity. Also featuring a myriad of other high-end features such as SDHC card slot, PoE,multiple streams, and more, the IP8151P camera is the ideal choice for the most demanding monitoring applications. By providing sharp, smooth video, plus exceptional performance in low-light conditions, the IP8151P can secure a variety of sites such as retail stores, school campuses, and much more.
