Vivotek IP8152
Vivotek IP8152 front diagram
Vivotek IP8152 rear diagram
Network Camera Store is an Authorized Vivotek Reseller
Vivotek IP8152 H.264
Vivotek IP8152 IR cut filter
Vivotek IP8152 Vari-focal Mini-Box Network Camera
Vivotek IP8152 Vari-focal Mini-Box Network Camera

Vivotek

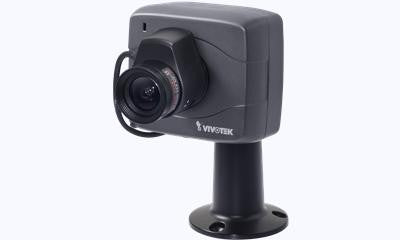

Vivotek IP8152 Vari-focal Mini-Box Network Camera

Sale price$265.00
Discontinued
SKU: IP8152

Discontinued; replaced by the IP8166.

Vivotek IP8152 Features

  • Max Resolution: 1280x1024
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.11 Lux @ F1.4 (Color), 0.001 Lux @ F1.4 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: f = 3.3 ~ 12 mm, F1.4 (wide), F2.4 (tele)
  • Zoom: 48x digital zoom with ePTZ (4x on IE plug-in, 12x built-in)
  • Iris: DC Auto Iris
  • Focus: Manual
  • Field of View: 34° ~ 74° (horizontal), 25° ~ 60° (vertical), 40° ~ 95° (diagonal)
  • Compression Styles: H.264 & MJPEG
  • Max Frame Rate: H.264: 30 fps at 1280x1024; MJPEG: 30 fps at 1280x1024
  • Image Settings: Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two way audio via external microphone input/external line output
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: Triple-window video motion detection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Micro SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: CE, LVD, FCC Class B, VCCI, C-Tick
  • Dimensions: 88mm (D) x 80mm (W) x 70mm
  • Weight: 233 g (With lens)
  • Operating Temperature: 0°C ~ 50°C
  • Operating Humidity: 10 - 100% RH (condensing)
  • Power: IEEE 802.3af PoE Class 2, Max. 3.4W
  • Warranty: Two Years
  • What's Included: IP8152 Network Camera, Camera Stand, L-type Hex Key Wrench, Screws, CD Software, Quick Installation Guide, Warranty Card
Vivotek IP8152 Features
VIVOTEK IP8152 features a brand new box camera design concept from VIVOTEK, with a compact size and a multitude of features. The small size makes it an easy to fit into different types of enclosures with different lens options, with the ability to fit a CS-mount lens making it a flexible solution for all types of surveillance. The Supreme Night Visibility features results in excellent video quality in low light environments; pairing with the built-in IR-cut filter further increase the range of visibility at night by allowing the use of IR illuminators. With all of these features and more, the camera is especially suitable for city surveillance, retail stores, government, industrial applications or hotel security. The IP8152 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease.
