Vivotek IP8155HP
IP8155HP Banner
IP8155HP front diagram
IP8155HP rear diagram
Network Camera Store is an Authorized Vivotek Reseller
WDR Pro technology
MicroSD/SDHC/SDXC card slot
Supreme Night Visibility
H.264 compression

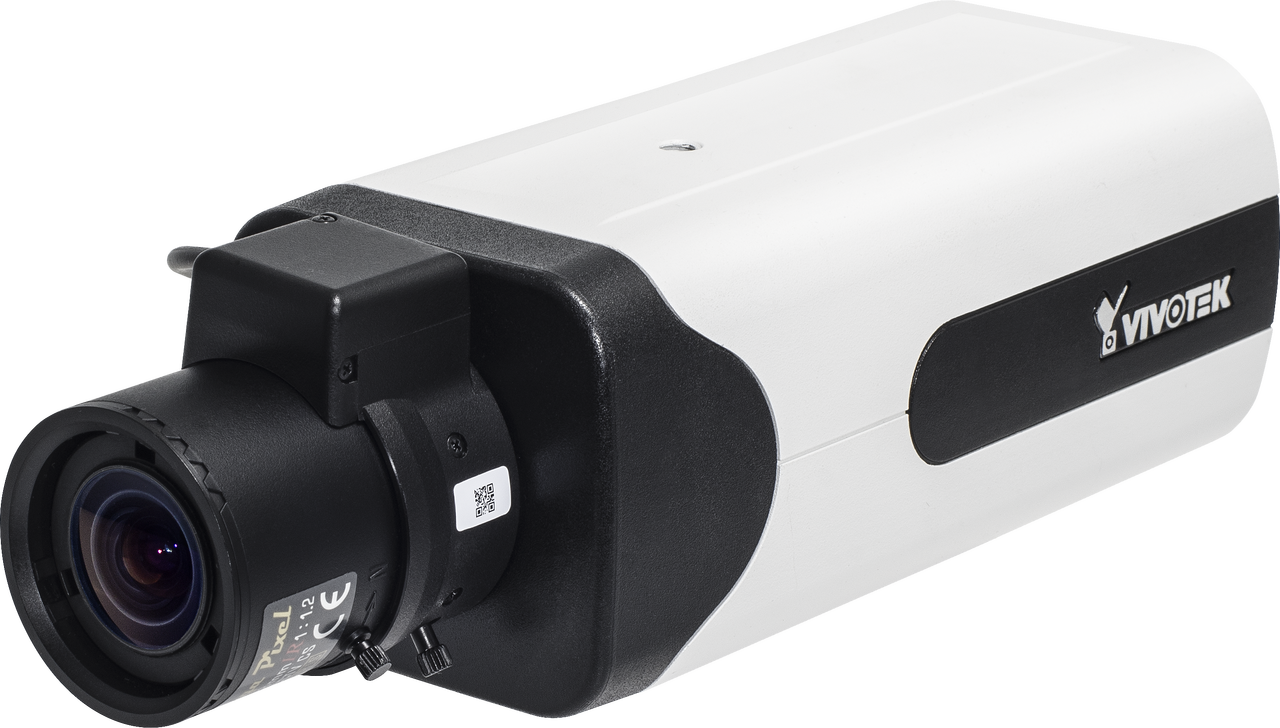

Vivotek IP8155HP 1.3MP WDR Box Network Camera


Vivotek IP8155HP 1.3MP WDR Box Network Camera

Sale price$540.00


Discontinued. Replaced by the IP816A-HP.

Vivotek IP8155HP Features

  • Max Resolution: 1280x1024 (1.3 MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.03 Lux @ F1.2 (Color); 0.001 Lux @ F1.2 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: f = 2.8 - 8 mm / F1.2 ~ F1.95
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
  • Iris: P-iris
  • Focus: Remote Back Focus
  • Field of View: 36° ~ 106° (Horizontal); 29° ~ 84° (Vertical); 46° ~ 140° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 1280x1024 in both compression mode; 60 fps @ 1280x1024 in one-stream mode only
  • WDR Technology: Yes, WDR Pro II
  • Image Settings: Supreme Night Vision, Adjustable resolution, quality and bitrate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, EIS, Video Rotation
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-way audio (full duplex) via External microphone input & Audio output
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, Built-in SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 210 mm (D) x 70 mm (W) x 63 mm (H)
  • Weight: 623 g
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: DC12V/AC24V, IEEE 802.3af PoE
  • Warranty: 2 years
  • What's Included: Camera, Quick installation guide, warranty card, CS-mount lens, camera stand, screw pack, L-type hex key wrench, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek IP8155HP Overview

VIVOTEK IP8155HP is a professional box network camera offering up to 60 fps @ 1.3-Megapixel resolution with superb image quality. Featuring the new improved Wide Dynamic Range Technology WDR Pro II, it provides extreme visibility in high light contrast environments with 4-shutter capture method. Combined with 3D Noise Reduction Technology, which enables the IP8155HP to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can identify an increased level of image detail in extremely bright as well as dark environments. To provide top-notch image quality, IP8155HP also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Therefore, IP8155HP is also designed with VIVOTEK’ s RBF (Remote Back Focus) System for installer to adjust focus more pricisely.
