Vivotek IP8160-W

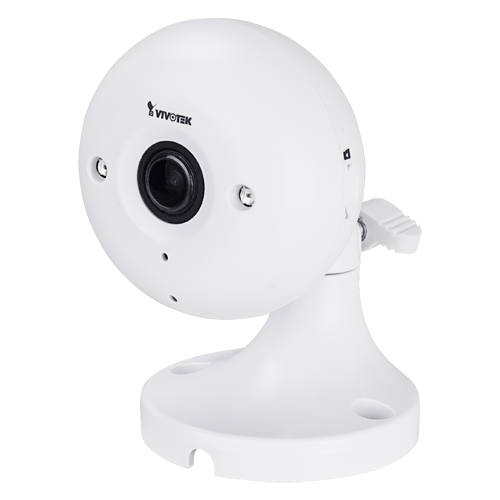

Vivotek IP8160-W 2MP IR Wifi Cube Network Camera

Vivotek

Vivotek IP8160-W 2MP IR Wifi Cube Network Camera

Sale price$120.00
Discontinued
SKU: IP8160-W

Contact

Vivotek IP8160-W Features

  • Max Resolution: 1920x1080
  • Image Sensor: 1/2.9" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.07 Lux @ F1.8 (Color); < 0.01 Lux @ F1.8(B/W)
  • IR Illuminators: Yes
  • IR Illuminator Range: 8m (26 ft)
  • Lens Type: Fixed focal
  • Focal Length: f=2.8mm / F1.8
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: N/A
  • Focus: Fixed
  • Field of View: 113° (Horizontal) / 63° (Vertical) / 136° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 1920x1080; 15 fps @ 1920x1080 (Acoustic Echo Cancellation On)
  • Image Settings: WDR Enhanced, Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, defog, 3DNR, video rotation
  • Privacy Mask: Yes
  • Built-In Microphone: Yes
  • Audio Capabilities: Two way audio via Built-in microphone & Built-in speaker with 5m range
  • Alarm/Event Management: 5-window Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection Alarm Events Event notification using HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø 66 x 75.9 x 97.5 mm
  • Weight: 100.6 g (Camera unit), 58 g (Stand)
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Operating Humidity: 90%
  • Power / Consumption: DC 5V / Max 8W
  • Warranty: 2 Years
  • What's Included: Camera, Quick installation guide, warranty card, stand with screw kit, USB connector power adapter
Vivotek IP8160 Overview

VIVOTEK’s IP8160 is a stylish 2-megapixel cube network camera specifically designed for small-scale retail security applications. With a resolution of 1920x1080 at 30 fps, a removable IR-cut filter and built-in IR illuminators effective up to 8 meters, this remarkable camera provides users with superior image quality around the clock. When coupled with VIVOTEK’s Smart Stream II technology, the IP8160 can reduce both bandwidth and storage consumption by up to 50%* while retaining the same superb image quality as a Full HD camera.

Further, the camera supports two-way audio, and employs Acoustic Echo Cancellation (AEC) to greatly enhance audio quality and provide a clearer, smoother auditory image . VIVOTEK provides two easy-to install options for this compact camera; the IP8160-W boasts a 802.11b/g/n compatible wireless connection, and the IP8160 is designed for Power over Ethernet (PoE) functionality, making setup of these two powerful cameras both quick and simple.
