Vivotek IP8161

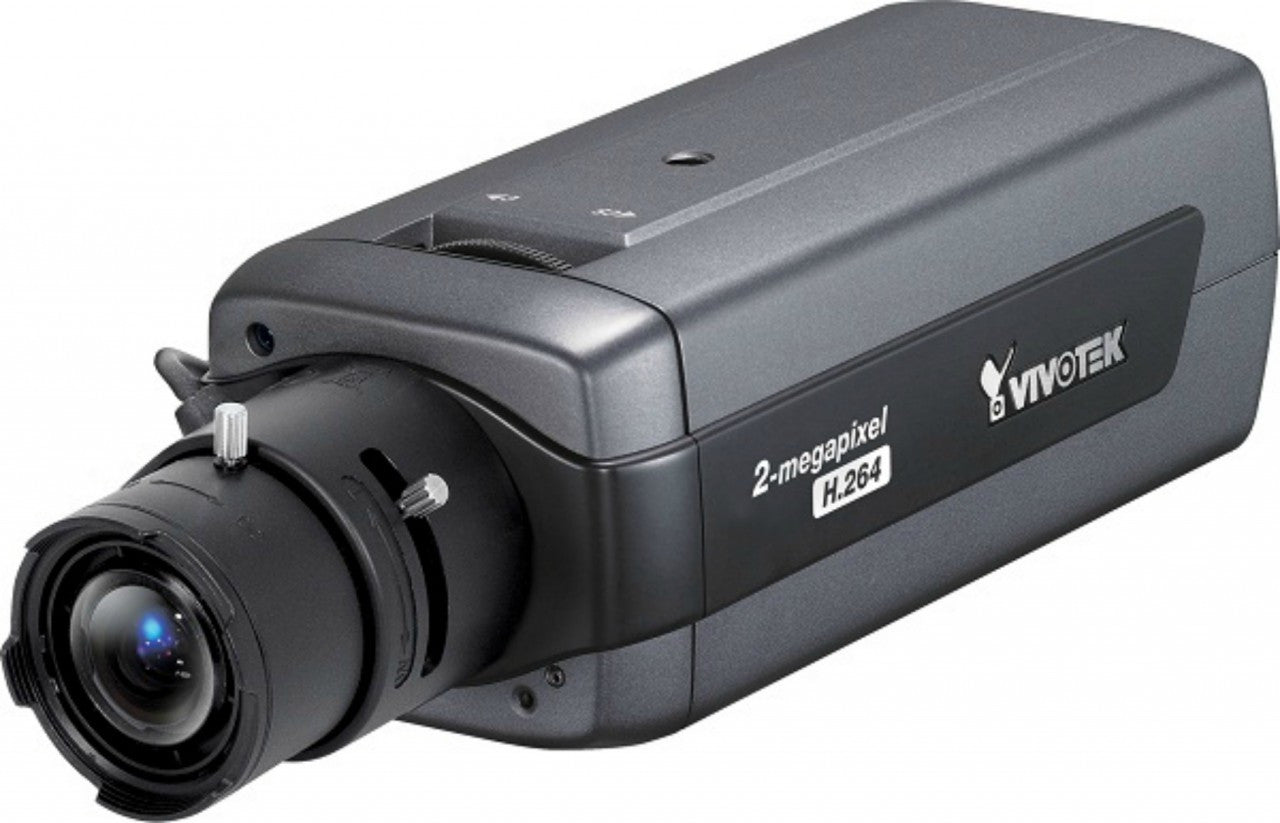

Vivotek IP8161 Front View
Vivotek IP8161 Rear View
Vivotek IP8161 Banner
Network Camera Store is an Authorized Vivotek Reseller
Vivotek IP8161 H.264 compression
Vivotek IP8161 removable IR-cut filter
Vivotek IP8161 2 Megapixel Day/Night Network Camera

Vivotek

Vivotek IP8161 2 Megapixel Day/Night Network Camera

Sale price$475.00
Discontinued
SKU: IP8161

Discontinued, replaced by the IP8165HP.

Vivotek IP8161 Features

  • Max Resolution: 1600x1200
  • Image Sensor: 2-megapixel CMOS Sensor
  • Sensor Size: 1/3.2"
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.001 Lux / F1.2 ( B/W )
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: f = 3.1 ~ 8 mm, F1.2
  • Zoom: N/A
  • Iris: Auto
  • Focus: Manual
  • Field of View: 32.9° ~ 80.6° (horizontal) 24.7° ~ 60.0° (vertical) 41.0° ~ 102.1° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: H.264: Up to 30 fps at 1280x720 , Up to 15 fps at 1600x1200; MPEG-4: Up to 30 fps at 1280x720 , Up to 15 fps at 1600x1200, MJPEG: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation)
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: External microphone input, Audio output, External/Internal microphone switch, Supports two-way audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, SD/SDHC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 154mm (D) x 72mm (W) x 62mm (H)
  • Weight: 664 g
  • Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F )
  • Operating Humidity: 90%
  • Power: 12V DC, 24V AC, Power consumption: Max. 8 W, 802.3af Power-over-Ethernet (Class 1)
  • Warranty: Two Years
  • What's Included: IP8161 camera, camera stand, L-type hex key wrench, Quick install guide, power adapter, software CD, warranty card

Vivotek IP8161 Overview

VIVOTEK IP8161 is a professional-series fixed network camera featuring superb image quality and exceptional bandwidth efficiency. It is especially suitable for wide open spaces such as building entrances and airports, or applications requiring accurate identification, such as human faces in banks or vehicle license plates in parking lots. Featuring a 2-megapixel sensor, this camera is able to provide a wide field of view with exceptional detail when co-megapixelared to a standard VGA camera, significantly reducing the number of camera installations. The ePTZ function enables users to focus on close-up shots of different areas in the camera’s view without moving the camera physically. Users can quickly move to a target area by si-megapixelly clicking on the video feed from the camera on their screen. In addition, the IP8161 can deliver user-defined thumbnails for viewing instead of video of an entire scene so as to optimize bandwidth and storage efficiency. The IP8161 supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility, video streams can also be transmitted in either of these formats for versatile applications. The streams can also be individually configured to meet different needs or bandwidth constraints, thereby further reducing bandwidth and storage requirements. Users can receive multiple streams simultaneously in different resolutions, frame rates and image qualities for viewing on different platforms. Thanks to its day and night function achieved by a built-in removable IR-cut filter, the IP8161 is able to maintain clear images 24 hours a day. Additionally, the IP8161 camera incorporates an adjustment ring to improve lens compatibility with either C- or CS-mount lens, providing system integrators with more flexibility and hassle-free installation for different applications. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. The integrated BNC connector allowing the IP8161 to be connected directly to an analog monitor provides enhanced flexibility and usability and ease of installation. Together with PoE, QoS, activity adaptive streaming, and the included 32-CH central management software, the IP8161 is indisputably the top choice for reliable and high performance surveillance.
