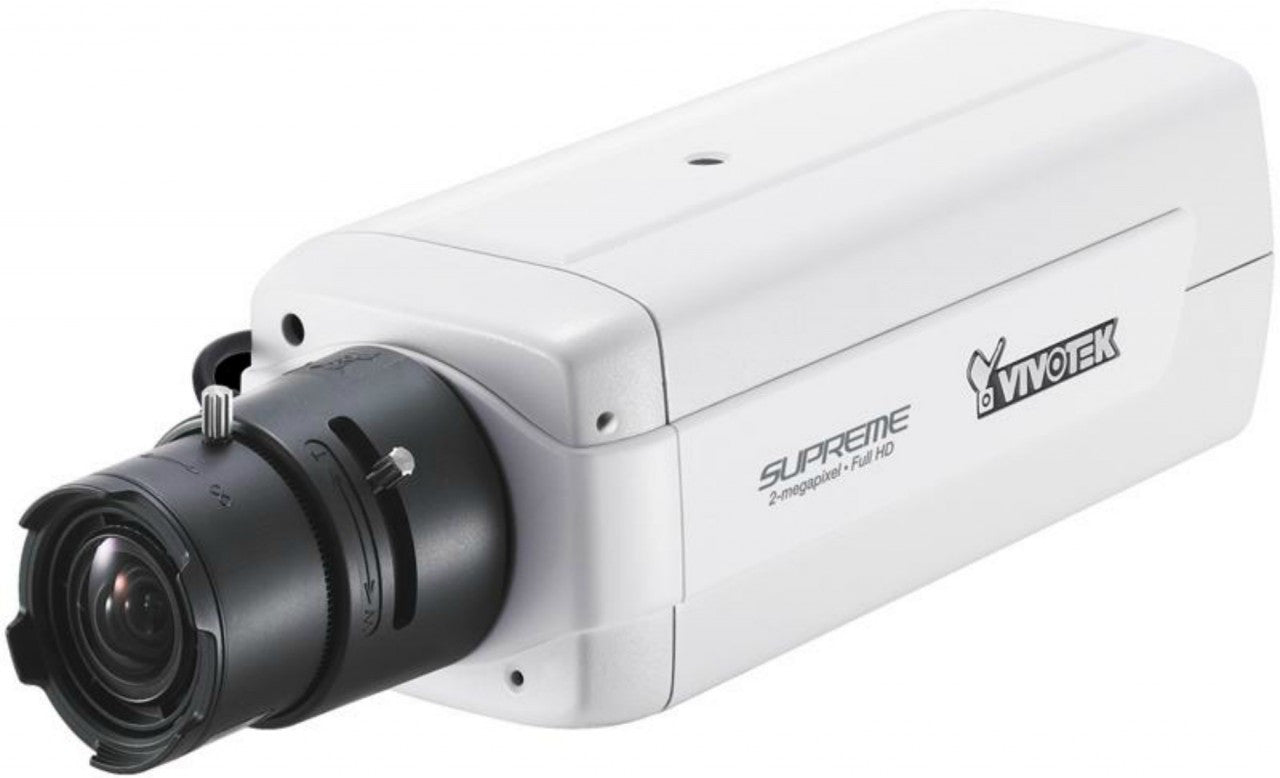

Vivotek IP8162 2MP Full HD with Focus Assist Network Camera

Vivotek

Vivotek IP8162 2MP Full HD with Focus Assist Network Camera

Sale price$485.00
Discontinued
SKU: IP8162

Vivotek IP8162 Features

  • Max Resolution: 1920x1080
  • Image Sensor: 1/2.7" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.06 Lux / F1.2 (color) 0.001 Lux / F1.2 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-Focal
  • Focal Length: 3.1 ~ 8 mm
  • Zoom: N/A
  • Iris: Auto
  • Focus: N/A
  • Field of View: 105.4° ~ 42.2° (horizontal), 57.9° ~ 23.8° (vertical), 123.1° ~ 48.3° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30fps in all Compression Styles except for MPEG-4 Up to 27 fps at 1920x1080
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), WDR enhanced
  • Privacy Mask: Yes
  • Built-In Microphone: Yes
  • Audio Capabilities: Built-in microphone, External microphone input, Audio output, External/Internal microphone switch, Supports two-way audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: No
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Depth: 154mm Width: 72mm Height: 62mm
  • Weight: Net: 674 g (Without lens
  • Operating Temperature: -10 ~ 50 °C ( 14 ~ 122 °F)
  • Operating Humidity: 90%
  • Power: 802.3af compliant Power-over-Ethernet (Class 3), 12V DC, 24V AC, Power consumption: Max. 4.92 W
  • Warranty: 3 years
  • What's Included: IP8162, Lens, L-type Hex Key Wrench, Camera Stand, Power Adapter, Quick Installation Guide, Software CD, Warranty Card.

Vivotek IP8162 Overview

VIVOTEK IP8162 is part of the SUPREME series product line offering 2-megapixel resolution with superb image quality. The camera can capture a much more comprehensive area than a standard VGA camera, significantly reducing the number of cameras required. It is especially suitable for monitoring wide open indoor spaces such as building entrances, airports, or applications requiring accurate identification, as well as outdoor applications when placed inside an enclosure. The IP8162 employs many advanced features to allow users to fully enjoy the high definition video. With high performance H.264/MPEG-4/MJPEG compression technology, the IP8162 offers extra smooth video quality with resolution up to 1080p full HD @ 30fps. The Video Cropping feature allows a user to only transfer user-defined thumbnails for viewing instead of an entire scene so as to optimize bandwidth and enhance storage efficiency. The ePTZ function enables users to zoom in and focus on a region of interest (ROI) in the camera view with only a few clicks.

As with all VIVOTEK true day/night cameras, the IP8162 features a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. Additionally, the IP8162 can connected directly to an analog monitor with an RCA connector, providing integrators with more flexibility and hassle-free installation for a variety of applications.Data security with the IP8162 is further enhanced with HTTPS encryption and 802.1X authentication. Together with PoE, QoS, time-shift streaming, and the included 32-CH recording software, the IP8162 is indisputably the top choice for reliable and high performance megapixel surveillance.
