Vivotek IP8162P 2MP Full HD P-Iris Network Camera

DISCONTINUED. Replaced by the IP8165HP.

Vivotek IP8162P Features

• Max Resolution: 1920x1080
• Image Sensor: 1/2.7" CMOS sensor
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.06 Lux / F1.2 (color) 0.001 Lux / F1.2 (B/W)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: vari-focal
• Focal Length: 3.1 ~ 8 mm
• Zoom: N/A
• Iris: P-Iris
• Focus: Focus Assist
• Field of View: 105.4° ~ 42.2° (horizontal), 57.9° ~ 23.8° (vertical), 123.1° ~ 48.3° (diagonal)
• Compression Styles: H.264, MPEG-4 & MJPEG
• Frame Rate: Up to 30fps in all compressions styles except for MPEG-4, 27 fps at 1920x1080
• Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation) WDR enhanced
• Privacy Mask: Yes
• Built-In Microphone: Yes
• Audio Capabilities: External microphone input, Audio output, External/Internal microphone switch, Supports two-way audio, Supports audio mute
• Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
• ONVIF: Yes
• Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
• Users: 10 clients on-line monitoring at the same time
• On-board Storage: Yes, SD/SDHC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 154 mm (D) x 72 mm (W) x 62 mm (H) (Without lens)
• Weight: 674 g (Without lens)
• Operating Temperature: -10 ~ 50 °C (14 ~ 122 °F )
• Operating Humidity: 90%
• Power: 802.3af Power-over-Ethernet (Class 3), 12V DC, 24V AC, Max. 4.92 W
• Warranty: 3 years

Vivotek IP8162P Overview

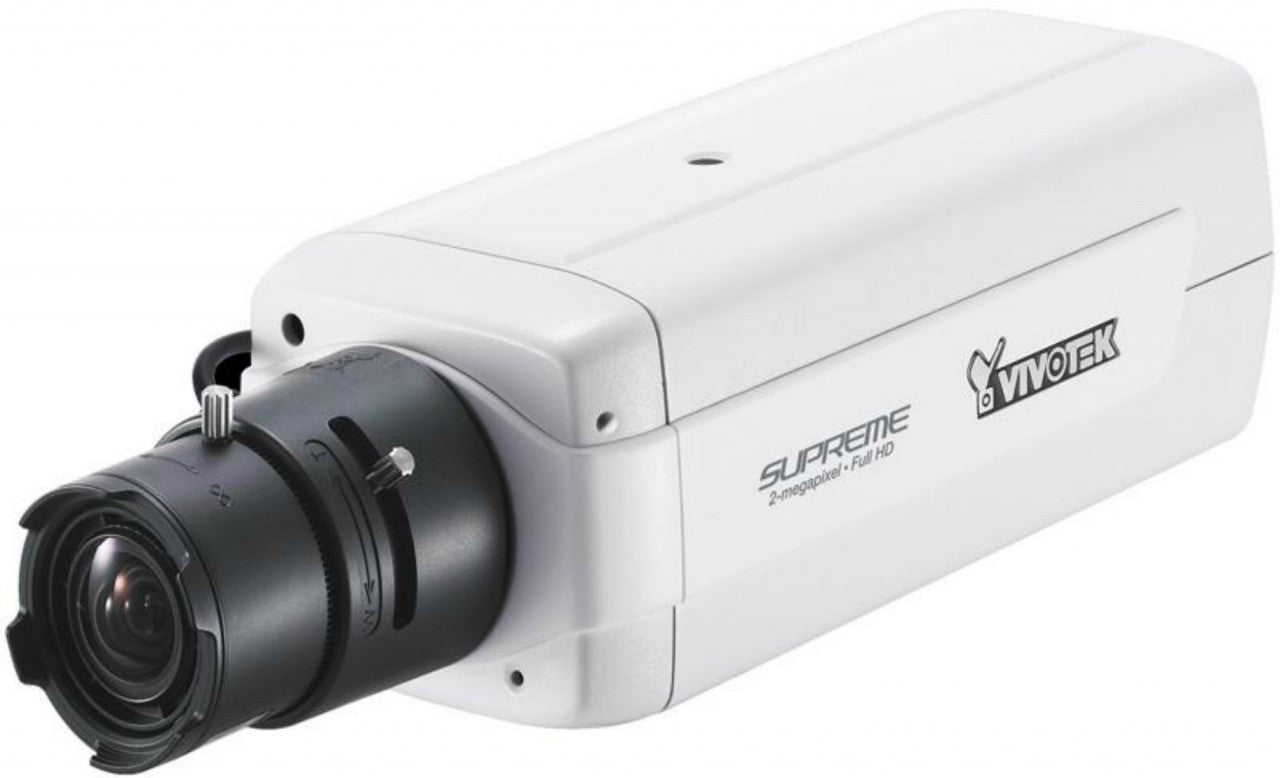

VIVOTEK IP8162P is part of the SUPREME series product line offering 2-megapixel resolution with superb image quality. The camera can capture a much more comprehensive area than a standard VGA camera, significantly reducing the number of cameras required. It is especially suitable for monitoring wide open indoor spaces such as building entrances, airports, or applications requiring accurate identification. The IP8162P employs many advanced features to allow users to fully enjoy the high definition video. With high performance H.264/MPEG-4/MJPEG compression technology, the IP8162P offers high-quality video with resolution up to 1080 full HD @ 30fps. With a P-iris lens, which controls the iris with extreme precision with its built-in stepping motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality. In addition, the IP8162P is also equipped with a focus assist button to allow users to precisely adjust the camera focus. After pushing the focus assist button on the camera unit, an indicator will be displayed onscreen with detailed focus information, which will change in accordance with the manual adjustment. Moreover, continuing to push the button will zoom in on the target area for fine tuning, resulting in better usability and picture clarity. The IP8162P can also be directly connected to an analog monitor with the built-in BNC connector, providing integrators more flexibility and hassle-free installation for a myriad of applications. Together with WDR enhancement, users can identify image details in extremely bright as well as dark environments. Also featuring other high-end features such as multiple streams, video cropping, ePTZ, SDHC card slot, PoE, and the included 32-CH recording software, the IP8162P is indisputably the top choice for reliable and high performance megapixel surveillance.
