Vivotek IP8165HP
Vivotek IP8165HP
Vivotek IP8165HP front diagram
Vivotek IP8165HP rear diagram
Network Camera Store is an Authorized Vivotek Reseller
WDR Pro technology
MicroSD/SDHC/SDXC card slot
H.264 compression

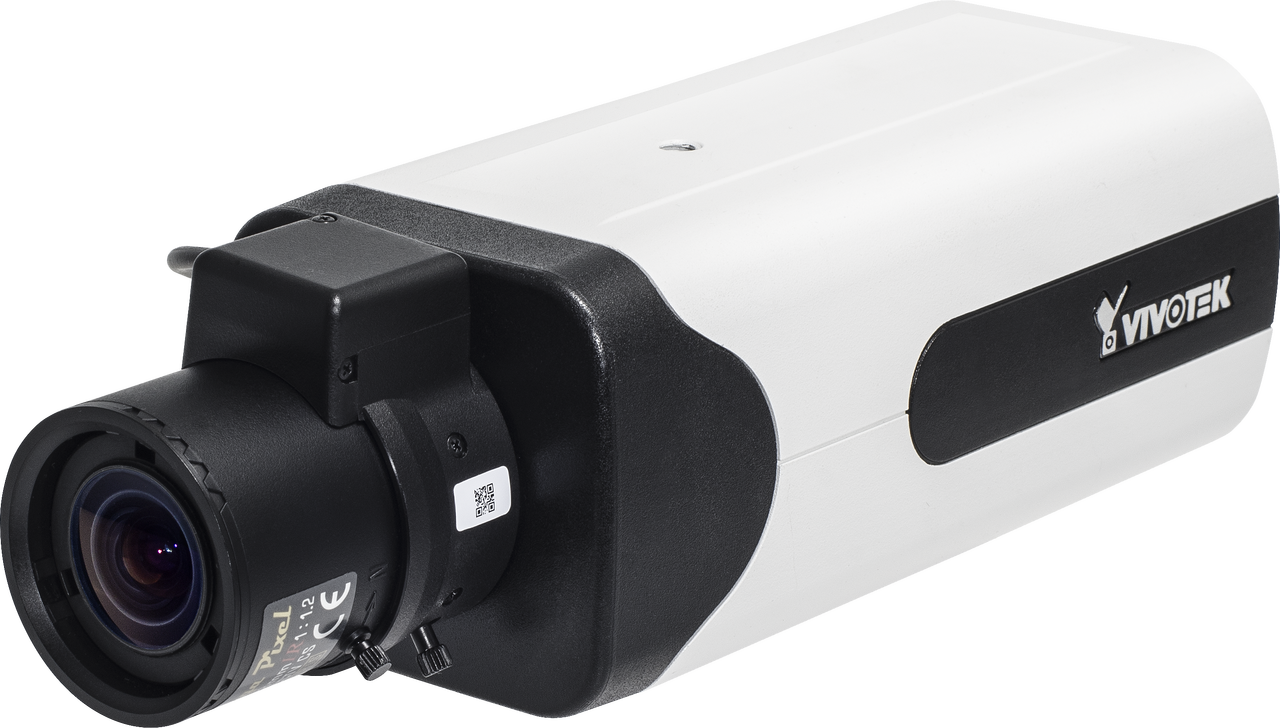

Vivotek IP8165HP 2MP WDR Box Network Camera

Vivotek

Vivotek IP8165HP 2MP WDR Box Network Camera

Sale price$580.00
Discontinued
SKU: IP8165HP

Contact

Discontinued; replaced by the IP816A-HP.

Vivotek IP8165HP Features

  • Max Resolution: 1920 x 1080 (2 MP)
  • Image Sensor: 1/2.8" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.17 Lux @ F1.2 (Color); 0.001 Lux @ F1.2 (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: f = 2.8 - 8 mm / F1.2 ~ F1.95
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
  • Iris: P-iris
  • Focus: Remote Back Focus
  • Field of View: 40° ~ 122° (Horizontal); 23° ~ 69° (Vertical); 45° ~ 104° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 1920x1080 in both compression mode; 60 fps @ 1920x1080 in one-stream mode only
  • WDR Technology: Yes, WDR Pro
  • Image Settings: Adjustable resolution, quality and bitrate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, EIS, Video Rotation
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-way audio (full duplex) via External microphone input & Audio output
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, Built-in SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 210 mm (D) x 70 mm (W) x 63 mm (H)
  • Weight: 623g
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: DC12V/AC24V, IEEE 802.3af PoE
  • Warranty: 2 years
  • What's Included: Camera, Quick installation guide, warranty card, CS-mount lens, camera stand, screw pack, L-type hex key wrench, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek IP8165HP Overview

VIVOTEK IP8165HP is a professional box network camera offering up to 60 fps @ 2-Megapixel resolution with superb image quality. Featuring the improved Wide Dynamic Range Technology WDR Pro, it provides superior visibility in high light contrast environments with 2-shutter capture method. Combined with 3D Noise Reduction Technology, users can identify an increased level of image detail in extremely bright as well as dark environments without occupying or wasting unreasonably high bandwidth. To provide top-notch image quality, IP8165HP also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Therefore, IP8165HP is also designed with VIVOTEK’ s RBF (Remote Back Focus) System for installer to adjust focus more precisely.
