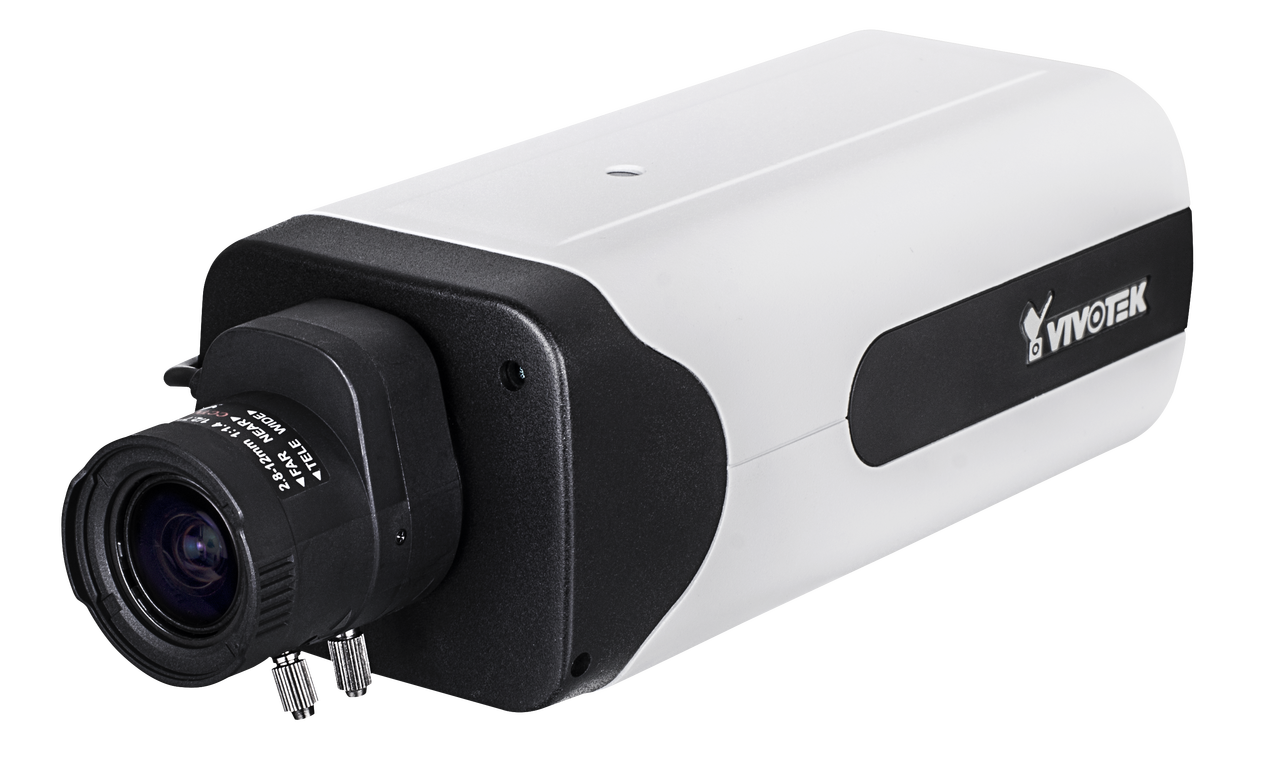

Vivotek IP8166 2MP WDR Box Network Camera

Replaced by the IP9165-HP.

Vivotek IP8166 Features

• Max Resolution: 1920 x 1080 (2 MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.08 Lux @ F1.4 (Color) 0.001 Lux @ F1.4 (B/W)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Vari-focal
• Focal Length: f = 2.8 - 12 mm / F1.2 ~ F2.4
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
• Iris: DC-Iris (P-iris reserved)
• Focus: Manual
• Field of View: 38° ~ 101° (Horizontal) 21° ~ 63° (Vertical) 40° ~ 122° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression mode
• WDR Technology: Yes, WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate Smart Stream II, Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, defog, lens profile
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two-way audio (full duplex) via External microphone input & Audio output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, Built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 193 (D) x 70 (W) x 61 (H) mm
• Weight: 626g (1.38 lb)
• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F )
• Operating Humidity: N/A
• Power: DC 12V, AC 24V, IEEE 802.3af PoE Class 0
• Warranty: 2 years
• What's Included: Camera & lens, Quick installation guide, mounting bracket, screw pack, lens, software CD (User's manual, quick installation guide, Installation Wizard 2, VAST)

Vivotek IP8166 Overview

VIVOTEK’s IP8166 is a professional box network camera equipped with a Full HD sensor enabling a viewing resolution of 1920x1080 at a smooth 30 fps. The IP8166 is capable of capturing high quality, high resolution video at up to 2 Megapixels in low light environments with VIVOTEK’s SNV technology, making the camera ideal for a wide range of video surveillance applications, including supermarkets, banks, hotels and parking lots and also suitable for many more situations. Further empowering this professional 24/7 camera, VIVOTEK’s Smart Stream II technology enables the IP8166 to optimize quality for a desired region or area and therefore to maximize efficiency of bandwidth usage. The IP8166 can reduce both bandwidth and storage consumption by up to 50%* while still retaining the same excellent image quality as a Full HD camera. Smart Stream II technology can save up to 50% of bandwidth and storage by optimizing bitrates for moving regions or ROI. To meet the demands of diverse scenarios, the IP8166 is compatible with a variety of accessories, from external IR LEDs and enclosures, to long-range solutions and PoE total solutions. With the added support and flexibility of an abundance of professional accessories, the IP8166 is an excellent candidate for your total surveillance solution.
