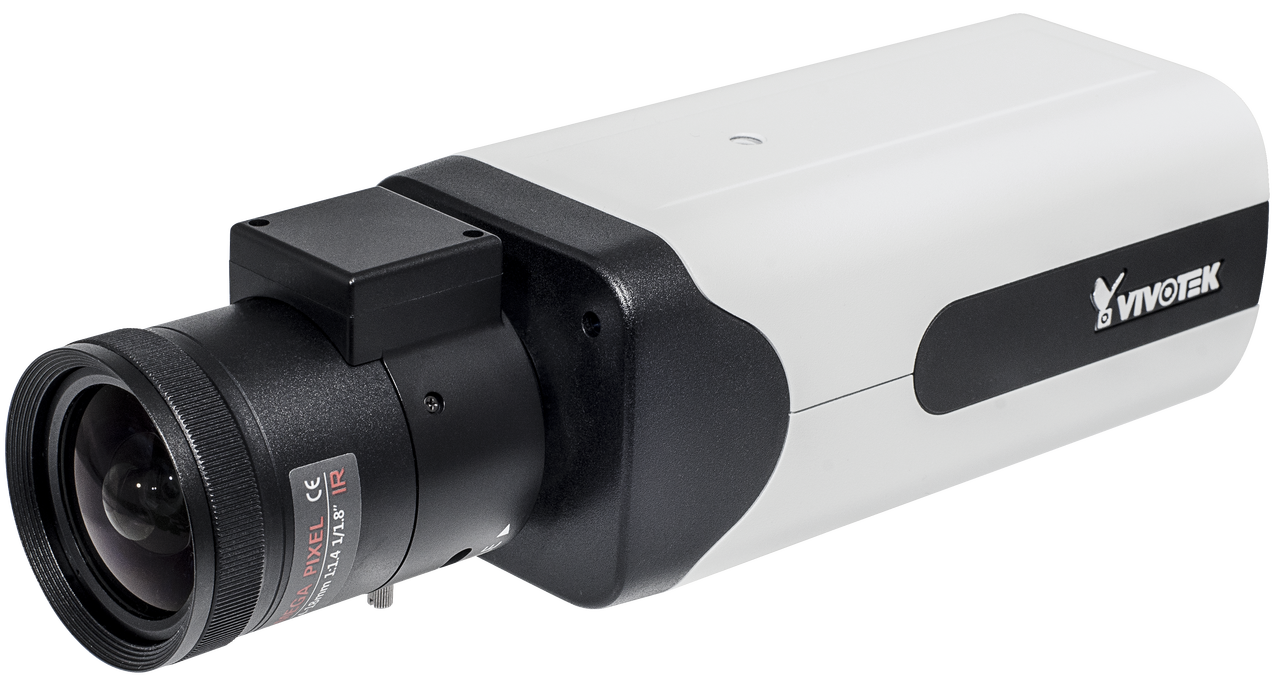

Vivotek IP816A-HP 2MP Remote Back Focus Box Network Camera

Replaced by the IP9165-HP

Vivotek IP816A-HP Features

• Max Resolution: 1920 x 1080 (2 MP)
• Image Sensor: 1/1.9" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.03 Lux @ F1.4 (Color) 0.001 Lux @ F1.4 (B/W)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Vari-focal
• Focal Length: f = 4 ~ 18 mm / F1.4 ~ F13
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
• Iris: P-iris
• Focus: Remote Back Focus
• Field of View: 29° ~ 106° (Horizontal) 16° ~ 60° (Vertical) 33° ~ 130° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression mode; 60 fps @ 1920x1080 in one-stream mode only
• WDR Technology: Yes, WDR Pro
• Image Settings: Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings 3D noise reduction, EIS, video rotation, snapshot focus
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two-way audio (full duplex) via external microphone input & audio output
• Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, Built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 230.2 mm (D) x 70 mm (W) x 63.5 mm (H)
• Weight: 623g
• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
• Operating Humidity: N/A
• Power: DC12V/AC24V IEEE 802.3af PoE / DC Max. 9.2W, AC Max. 15.4W, PoE Max.12.2W
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, CS-mount lens, camera stand, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek IP816A-HP Overview

The VIVOTEK IP816A-HP is a professional box network camera offering up to 60 fps @ 2-Megapixel resolution with superb image quality, even in the darkest hours of the night. Featuring the improved Wide Dynamic Range Technology, WDR Pro, the IP816A-HP provides superior visibility in high-contrast lighting environments with 2-shutter capture method. When combined with 3D Noise Reduction Technology, users can enjoy an increased level of image detail in extremely dark environments without consuming or wasting unreasonbly high bandwidth.
