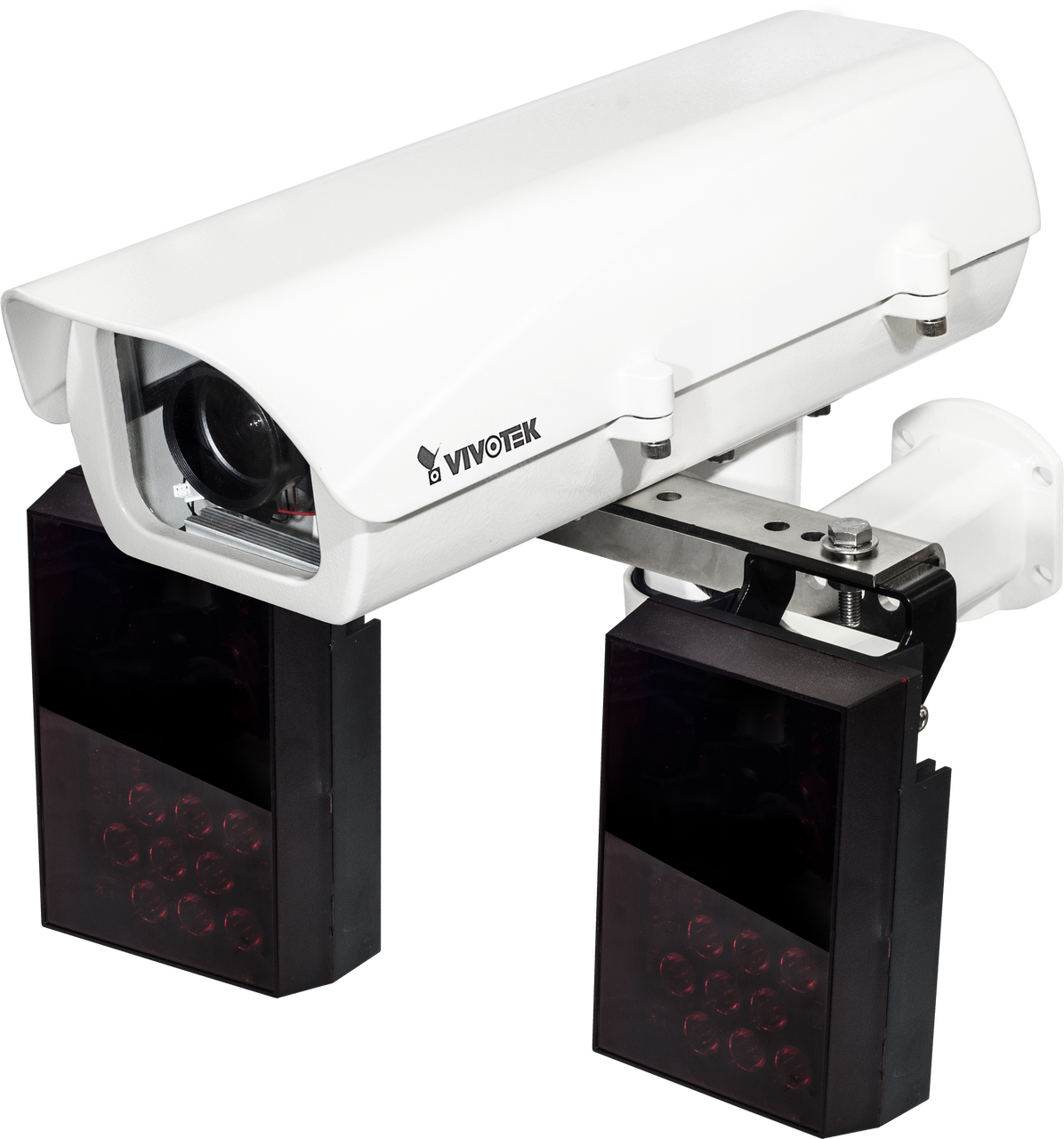

Vivotek IP816A-LPC-Kit License Plate Capture Kit

Discontinued; replaced by the IP816A-LPC-v2-Kit (Street) or IP816A-LPC-v2-Kit (Highway).

Vivotek IP816A-LPC-Kit Features

• Please Note: Kit does not include LPC software or Power Supply.

• LPR Speed Range: up to 60 mph (90 kph)
• Max Resolution: 1920 x 1080
• Image Sensor: 1/1.9" CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.095Lux (1/30sec, F1.4), 0.002Lux (2sec, F1.4), B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 100m (10° beam angle)
• Lens Type: Vari-focal
• Focal Length: f = 12 ~ 40 mm / F2.36 ~ F2.44
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• Iris: P-iris
• Focus: RBF (Remote Back Focus)
• Field of View: 10.2° ~ 30° (Horizontal), 8° ~ 22° (Vertical), 12° ~ 38° (Diagonal) (For 12~40mm lens)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30fps @ 1920x1080; 60fps @ 1920x1080 (In one-stream mode only) (In both compression mode)
• WDR Technology: WDR Pro (Default: Off)
• Image Settings: Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, scheduled profile settings 3D noise reduction, EIS, video rotation, snapshot focus, scene mode
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two-way audio (full duplex) via External microphone input / Audio output
• Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, IR Status, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: SD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weatherproof IP66 & vandal-proof IK10
• Dimensions: Please see dimensions image for full dimensions
• Weight: 5,222g (11.5 lbs)
• Operating Temperature: -10°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: Less than 90% RH
• Power/Consumption: AC 24V / Max. 77.4W (AA-341 recommended, not included)
• Warranty: 3 Years

Vivotek IP816A-LPC-Kit Overview

VIVOTEK IP816A-LPC Kit represents a total solution for LPC (License Plate Capture) applications by leveraging the top- notch quality and traffic monitoring ability of the IP816A-HP. With the adoption of built-in corresponded IR LEDs and an IR pass filter, the IP816A-LPC Kit delivers clear license plate images for reliable recognition, in both the highest levels of glare, and in the darkest hours of the night. Empowered with VIVOTEK Scene Mode, which provides different exposure levels to avoid overexposure in some lighting conditions, the IP816A-LPC Kit can capture clear plate images from the vehicles moving at speeds of up to 90km/h. Value-added features such as EIS (Electronic Image Stabilization) and VIVOTEK Snapshot Focus ensure that the IP816A-LPC Kit can be easily installed and adjusted to provide the perfect LPR solution. Further, with the high-resolution images supporting a wide range of up to two lanes, the IP816A-LPC Kit is also the most economic solution in LPR applications. VIVOTEK's 2 Mega-pixel resolution kit provides not only sufficient PPF for license plate capture, but also for a clear overview of moving vehicles, including car color, brand and type for general traffic surveillance purposes. Therefore, with only one VIVOTEK IP816A-LPC Kit, users can yield more information from one single location. Capturing images at night is a challenging issue for any surveillance application, but for License Plate Capture applications the challenge is even greater due to noise and glare caused by the headlights of cars. The IP816A-LPC Kit is equipped with external 24W IR LEDs and a delicate IR Pass Filter, which help to filter out reflected light and only capture detailed information from the plates. Moreover, the IR threshold is also programmed to deploy the IR LED automatically to ensure 24/7 & Day/ Night performance. The high image quality of the IP816A-LPC Kit ensures wide coverage of two lanes with one Camera, whether used for street monitoring or for parking lot monitoring. With a single IP816A-LPC Kit covering dual lanes, the total cost of traffic monitoring will be reduced.
