Vivotek

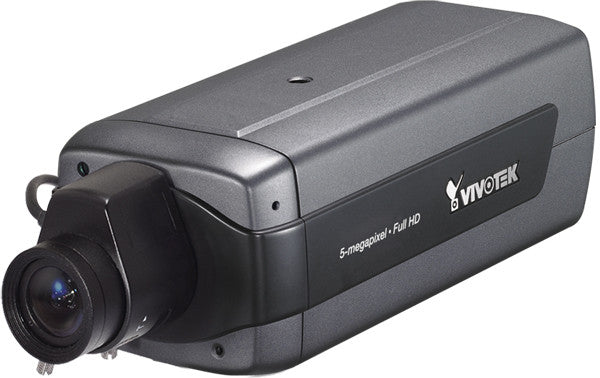

Vivotek IP8172P 5MP Full HD Network Camera
Discontinued - Recommended Replacement: IP9181-H
Choose options
Discontinued - Recommended Replacement: IP9181-H
Discontinued - Recommended Replacement: IP9181-H
Discontinued; replaced by the IP9181-H.
Vivotek IP8172P Features
- Max Resolution: 2560x1920
- Image Sensor: 1/2.5" Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
- Minimum Illumination: 0.05 Lux @ F1.6 (Color) & 0.001 Lux @ F1.6 (B/W)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Vari-focal, CS Mount
- Focal Length: f = 3.5 ~ 10 mm
- Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Iris: P-iris
- Focus: Auto, Smart Focus system: focus assist button and OSD
- Field of View: 33° ~ 93° (horizontal), 24° ~ 68° (vertical), 40° ~ 119° (diagonal)
- Compression Styles: H.264, MJPEG & MPEG-4
- Frame Rate: H.264: 10 fps at 2560x1920 30 fps at 1920x1080; MPEG-4: 10 fps at 1920x1536, 25 fps at 1920x1080; MJPEG: 13 fps at 2560x1920, 30 fps at 1920x1080
- Image Settings: WDR Enhanced, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, Scheduled profile settings
- Privacy Mask: Yes
- Built-in Microphone: Yes
- Audio Capabilities: Audio input/output (full duplex), Built-in microphone with 5 meter range, External microphone input, External line output
- Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
- ONVIF: YES
- Users: Live viewing for up to 10 clients
- On-board Storage: SD/SDHC/SDXC card slot
- Indoor/Outdoor: Indoor
- Dimensions: 217 mm (D) x 72 mm (W) x 62 mm (H)
- Weight: Net: 711 g
- Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Power: IEEE 802.3af PoE Class 3, 24V AC, 12V DC
- Warranty: 24 Months
- What's Included: IP8172P Network Camera, CS-Mount Lens, Camera Stand, Software CD, Quick Installation Guide, L-Type Hex Key Wrench, Warranty Card
Vivotek IP8172P Overview
VIVOTEK IP8172P is a professional box camera offering 5-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. Featuring 5-Megapixel resolution and high-performance H.264/MPEG-4/MJPEG compression technology, the IP8172 offers extra-smooth video and wide coverage. The IP8172P employs many advanced features to allow users to fully utilize the high definition video. With high performance H.264/MPEG-4/MJPEG compression technology, the IP8172P offers high-quality video with resolution up to 1080p full HD @ 30fps. With a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field. In addition, the IP8172P is also equipped with a focus assist button to allow users to precisely adjust the camera focus. After pushing the focus assist button on the camera unit, an indicator will be displayed onscreen with detailed focus information, which will change in accordance with the manual adjustment. Moreover, continuing to push the button will zoom in on the target area for fine tuning, resulting in better usability and picture clarity. Additionally, the IP8172P can be connected directly to an analog monitor with an BNC connector, providing integrators with more flexibility and hassle-free installation for a variety of applications. WDR Enhancement allows users to identify image details in extremely bright as well as dark environments. Other high-end features such as multiple streams, video cropping, ePTZ, SD/SDHC/SDXC card slot, PoE, and the included 32-CH recording software make the IP8172P is indisputably the top choice for reliable and high performance megapixel surveillance.
