Vivotek IP8173H
Vivotek IP8173H Banner
Network Camera Store is an Authorized Vivotek Reseller
Vivotek IP8173H H.264 compression
Vivotek IP8173H Removable IR cut filter

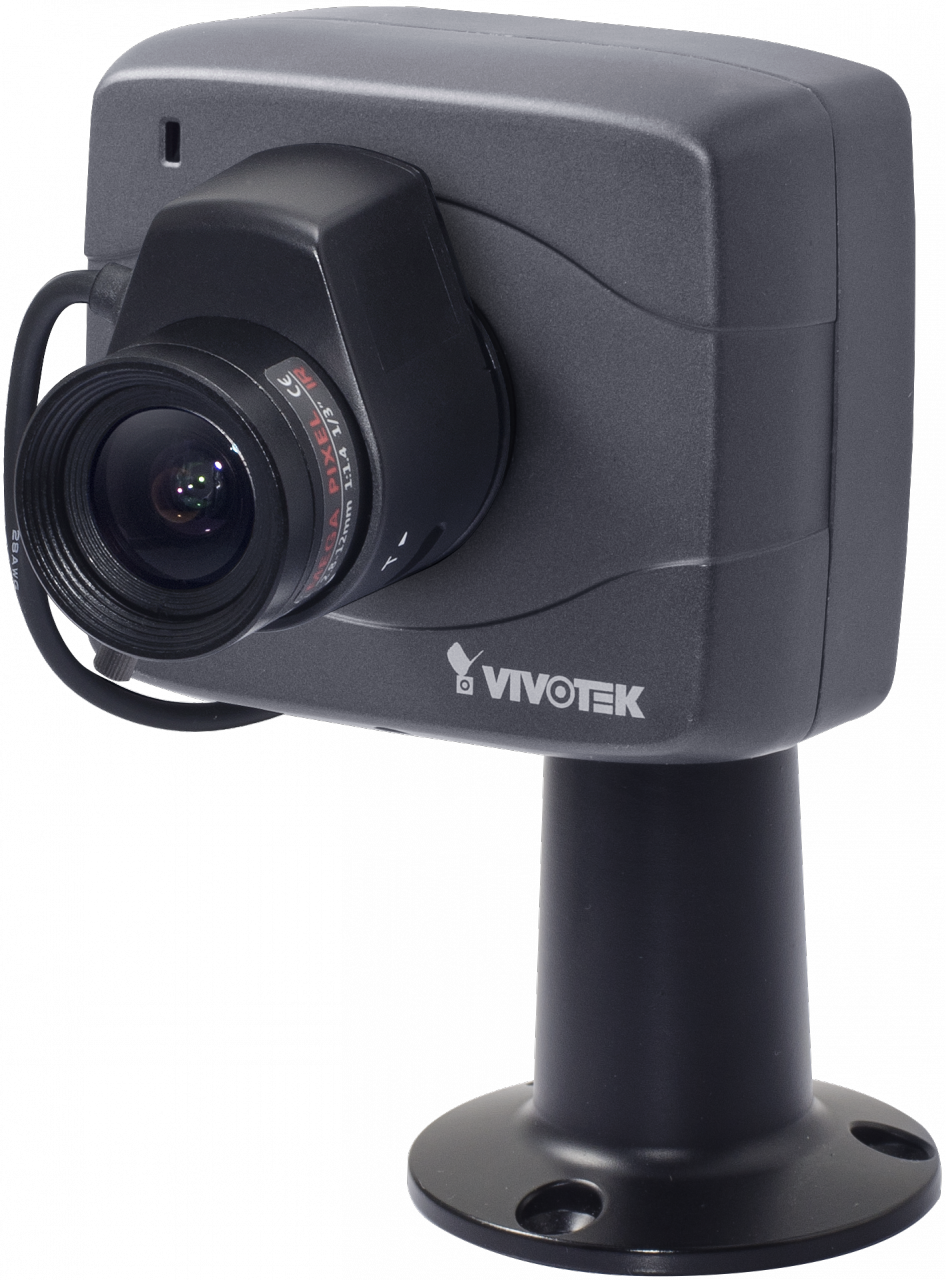

Vivotek IP8173H Box Network Camera
Vivotek IP8173H Box Network Camera

Vivotek

Vivotek IP8173H Box Network Camera

Sale price$470.00
Discontinued
SKU: IP8173H

Discontinued; replaced by the IP9171-HP.

Vivotek IP8173H Features

  • Max Resolution: 2048x1536 (3.1MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.18 Lux @ F1.2, 50 IRE (Color); 0.001 Lux @ F1.2, 50 IRE (B/W)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: f=2.8 - 8 mm, F1.2 (wide) - F1.95 (tele)
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 4x built-in)
  • Iris: Auto, P-iris
  • Focus: Manual
  • Field of View: 46° ~ 94° (horizontal), 35° ~ 70° (vertical), 58° ~ 113° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: H.264: 20 fps at 2048x1536, 30 fps at 1920x1080; MPEG-4: 20 fps at 1920x1536, 30 fps at 1920x1080; MJPEG: 20 fps at 2048x1536, 30 fps at 1920x1080
  • Image Settings: WDR Pro, Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings
  • Privacy Mask: Yes
  • Built-In Microphone: No
  • Audio Capabilities: Two way audio via external microphone input/external line output
  • Alarm/Event Management: Triple-window video motion detection, video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, event notification using HTTP, SMTP, FTP and NAS server, file upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 39 mm (D) x 80 mm (W) x 70 mm (H) (body only); 101 mm (D) x 80 mm (W) x 70 mm (H) (with lens)
  • Weight: 178 g (body only); 246 g (with lens)
  • Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F )
  • Operating Humidity: N/A
  • Power: IEEE 802.3af PoE Class 2 (max consumption 4.4W)
  • Warranty: 2 Years
  • What's Included: User's manual, quick installation guide, Installation Wizard 2, free 32-channel VMS ST7501, quick installation guide, warranty card, lens, camera stand, screw pack
Vivotek IP8173H Overview

VIVOTEK's IP8173H network camera features a 3-Megapixel WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combine the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eyes. The IP8173H can be widely applied in high contrast environments such as lobby entrances and more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality. The IP8173H features a mini-box camera design concept with a compact size to fit into different types of enclosures. With the capability to fit to a CS-mount lens, it provides flexible monitoring in all types of environments. With all of these features mentioned above, the camera is the best choice for retail, government, industrial, hotel security and city surveillance.
