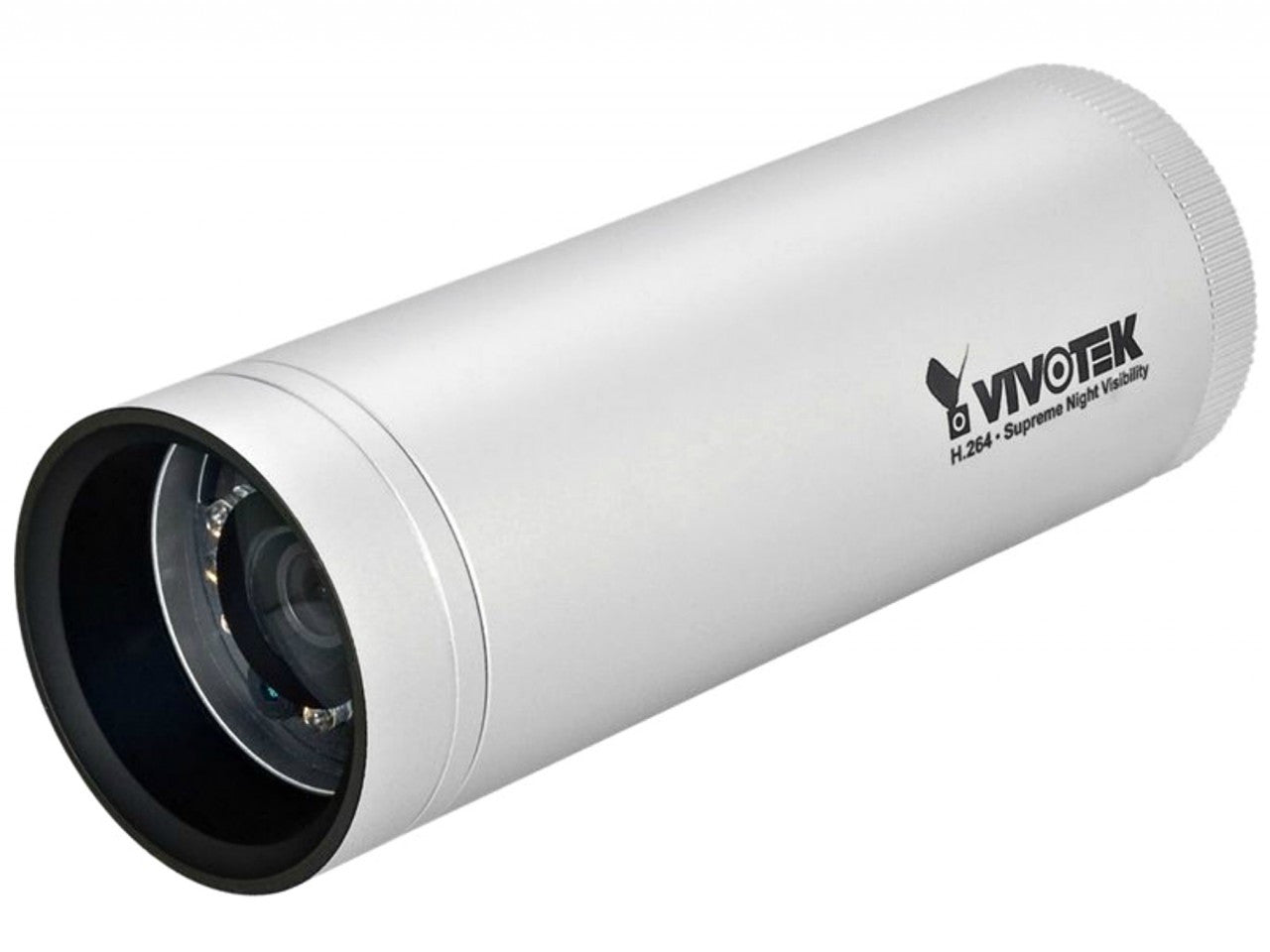

Vivotek IP8330 H.264 Outdoor Day/Night Bullet Camera


Vivotek IP8330 H.264 Outdoor Day/Night Bullet Camera

Sale price$0.00
SKU: IP8330

Vivotek IP8330 Features


  • Max Resolution: 640x480 (VGA)
  • Image Sensor: 1/4" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: Supreme Night Visibility: below 0.1 Lux @ 10 IRE, F1.6, 1/5 s exposure time 0 Lux @ F1.6 (IR LED on)
  • IR Illuminators: Yes, 12 Built-in IR Illuminators
  • IR Illuminator Range: Up to 15 meters
  • Lens Type: IR corrected board lens
  • Focal Length: f=4 mm, F1.6
  • Zoom: N/A
  • Iris: Auto
  • Focus: Manual
  • Field of View: 46.6° (horizontal), 35.4° (vertical), 57.7° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 60fps at 640x480 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Supports privacy masks
  • Privacy Mask: Yes
  • Built-In Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, MicroSD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing
  • Dimensions: 60mm x 170 mm
  • Weight: 702 g
  • Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F)
  • Operating Humidity: 90%
  • Power: 802.3af Power-over-Ethernet (Class 3), 12V DC 24V AC, Max. 9.6 W
  • Warranty: 3 Years
  • What's Included: IP8330, camera stand, quick installation guide, power adapter, RJ45 female, software CD, warranty card, waterproof connector

Vivotek IP8330 Overview

The Vivotek IP8330 is a superior bullet network IP camera offering exceptional video quality with high frame rates for smooth sharper monitoring allowing high-speed objects to be clear and recognizable. With 60fps at VGA resolution and optimized low light functionality, the Vivotek IP8330 offers impressive crystal clear video in both indoor and outdoor installations. The IP8330 is an ideal security camera for both indoor and outdoor use. With the removable IR-cut filter and built-in IR illuminators, the IP8330 can offer visible clear video even in zero light conditions. This coupled with Advanced Color Reproduction technology allows the IP8330 to provide a complete solution for capturing vivid high quality video both during the day and night. The IP66 rated outdoor housing offers protection from the weather elements including rain and dust. This along with the tamper and motion detection make the IP8330 an ideal surveillance camera for high traffic areas. The Vivotek IP8330 offers triple codec support of MPEG-4, MJPEG and H.264 video compression. H.264 compression allows for high quality video with low bandwidth consumption - ideal for both local and remote connections. With simultaneous streaming support, the IP8330 provides customization of separate video streams allowing individual configuration to meet bandwidth constrains by optimizing video quality, compression, frame rate and resolution. The Vivotek IP8330 is bundled with many additional features including power over ethernet support, adaptive streaming, a built-in MicroSD slot for onboard recording and ONVIF support. The IP8330 includes free recording software allowing you to record and monitor up to 32 Vivotek devices. The recording software is PC based however solutions exist for Mac platform recording. Please contact us for more information.
