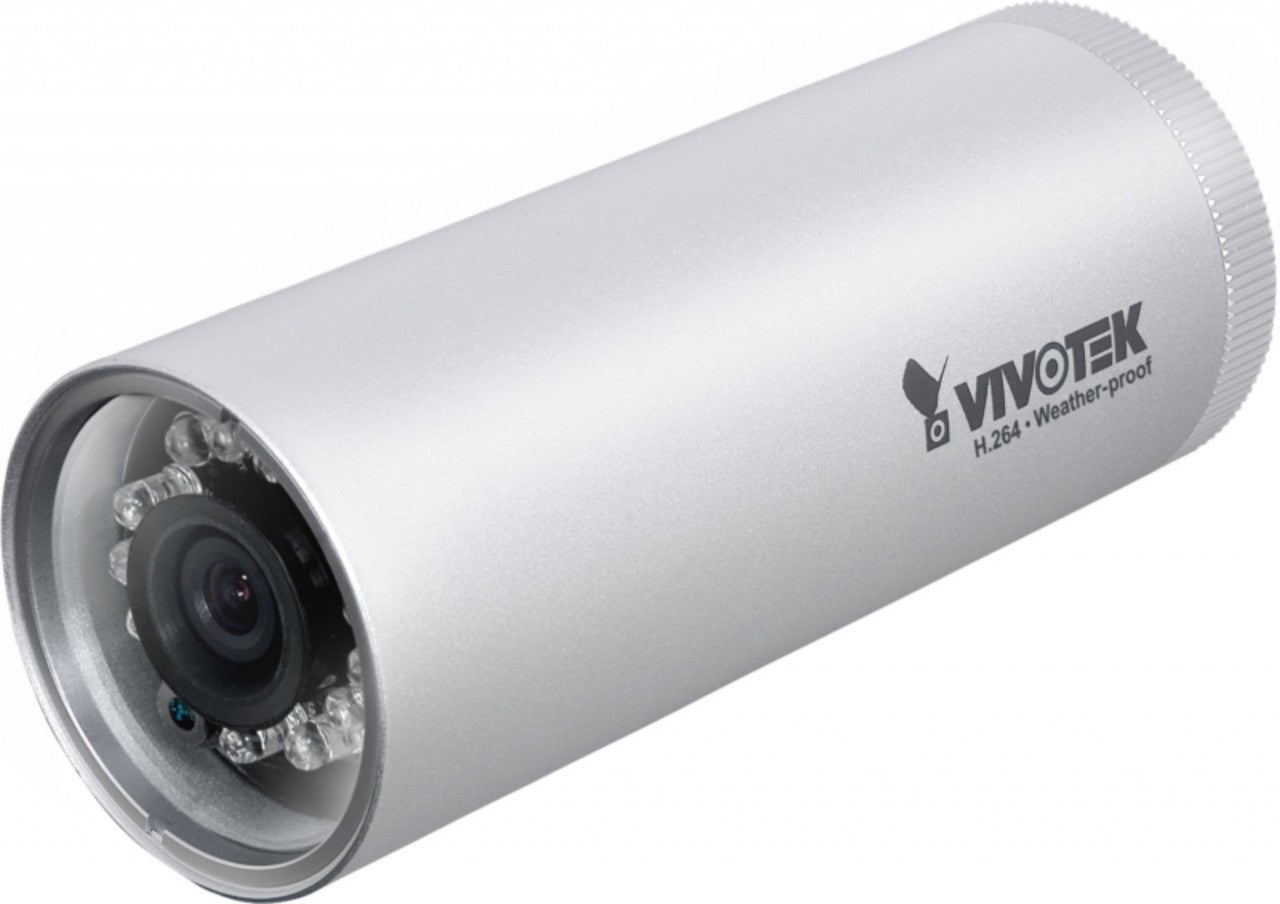

Vivotek IP8331 Outdoor Bullet Network Camera


Vivotek IP8331 Outdoor Bullet Network Camera

Sale price$225.00
SKU: IP8331

Dicontinued, replaced by the IB8354-C.

Vivotek IP8331 Features

  • Max Resolution: 640 x 480 (VGA)
  • Image Sensor: 1/4" CMOS
  • Day/Night: Yes, dual-band lens for Day & Night function
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.001 Lux @ F1.8 (color)
  • IR Illuminators: Yes, 12 Built-in IR Illuminators
  • IR Illuminator Range: Up to 10 meters
  • Lens Type: Dual-band Fixed Board lens, IR corrected
  • Focal Length: f=4.0 mm, F1.8
  • Zoom: N/A
  • Iris: Auto
  • Focus: Manual
  • Field of View: 71° (horizontal), 52° (vertical), 90° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30/25fps at 640x480 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled day/night mode, Supports privacy masks
  • Privacy Mask: Yes
  • Built-In Microphone: No
  • Audio Capabilities: External microphone input, Audio output, Supports two-way audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: No
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing
  • Dimensions: Width: 150mm
  • Weight: N/A
  • Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F)
  • Operating Humidity: 90%
  • Power: 802.3af Power-over-Ethernet (Class 3), Max. 9.6 W, 12V DC, 24V AC,
  • Warranty: 2 Years
  • What's Included: IP8331, camera stand, quick installation guide, power adapter, RJ45 female, software CD, warranty card, waterproof connector

Vivotek IP8331 Overview

The Vivotek IP8331 network bullet camera offers a cost efficient solution for those looking for a resilient outdoor camera that can be used around the clock. The camera boasts true day and night capabilities, and is exceptionally weatherproof - making it ideal for outdoor areas prone to cruel environmental conditions such as: heavy rain, extreme dust, and high winds. As an added bonus, the Vivotek IP8331 offers an all inclusive network solution, eliminating the need for costly accessories. Since the mechanical components of the day/night features are integrated, the Vivotek IP8331 network bullet camera promises an effective viewing range of 10 meters; a powerful feat for such a compact design. Additionally, the Vivotek IP8331 supports intelligent tamper detection and the ability to detect camera obstruction such as: blockage, redirection and even spray painting. Furthermore, the camera comes equipped with many of the most technologically advanced features such as synchronized dual streaming and Vivotek’s no charge standard 32-channel recording software. The Vivotek IP8331 is the ideal, all-in-one solution for any business or residence requiring resilient outdoor security, and twenty-four hour surveillance in all types of weather.
