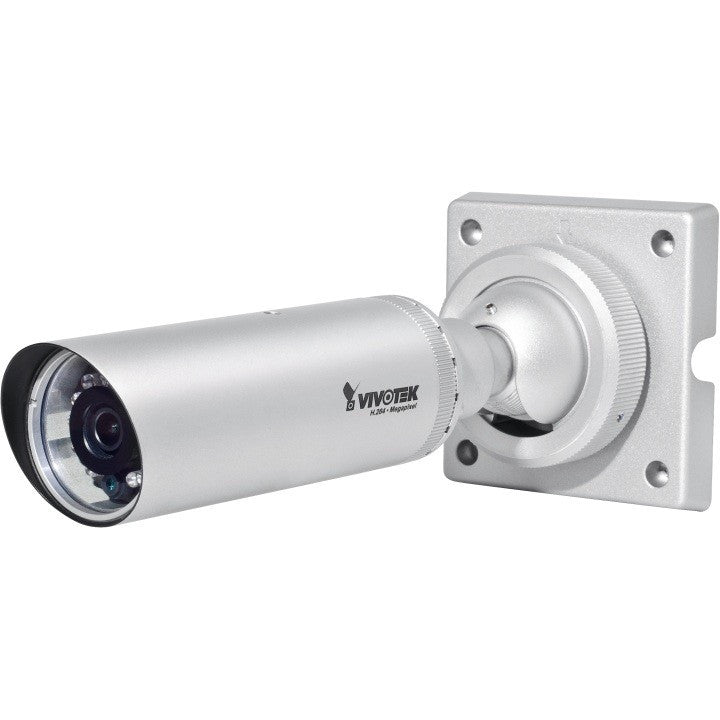

Vivotek IP8332-C Outdoor H.264 Megapixel Bullet Network Camera


Vivotek IP8332-C Outdoor H.264 Megapixel Bullet Network Camera

Sale price$280.00
SKU: IP8332-C

Discontinued, replaced by the IB8354-C.

Vivotek IP8332-C Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/4" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.3 Lux, 50IRE (color); 0.001 Lux, 50 IRE (B/W)
  • IR Illuminators: Yes, 12 Built-in IR Illuminators
  • IR Illuminator Range: Up to 15 meters
  • Lens Type: Fixed-focal
  • Focal Length: f=3.6 mm, F1.8
  • Zoom: ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)
  • Iris: Auto
  • Focus: Manual
  • Field of View: 56° (horizontal), 41° (vertical), 71° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30 fps at 1280x800 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES Automatic, manual or scheduled day/night mode, Supports privacy masks
  • Privacy Mask: Yes
  • Built-In Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection, event notification using digital output, HTTP, SMTP, FTP, and NAS server, file upload via HTTP, SMTP, FTP, and NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, microSD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing
  • Dimensions: 60mm x 170 mm
  • Weight: 1,282 g
  • Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F)
  • Operating Humidity: N/A
  • Power: 802.3af Power-over-Ethernet (Class 2), 12V DC, 24V AC, Power consumption: Max. 4 W
  • Warranty: 2 Years
  • What's Included: IP8332-C, Alignment Sticker, Ball Swivel Mount Bracket, L-type Hex Key Wrench, Screws, Quick Installation Guide, RJ45 Female, Waterproof Connector, Software CD, Warranty Card
Vivotek IP8332-C Overview

VIVOTEK IP8332-C is a best-in-class, bullet-style network camera designed for diverse outdoor applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at a smooth 30 fps, the IP8332-C is an all-in-one outdoor camera capable of capturing high quality and high resolution video. In order to adapt to constantly changing outdoor lighting conditions, the IP8332-C features a removable IR-cut filter as well as IR illuminators effective up to 15M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing and weather-proof casing to withstand rain and dust. The IP8332-C further strengthens the robustness of the camera by protecting the cable within the bracket. Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC card slot, and VIVOTEK's 32-channel recording software, the IP8332-C is the ideal solution for your outdoor surveillance needs.
