Vivotek IP8335H

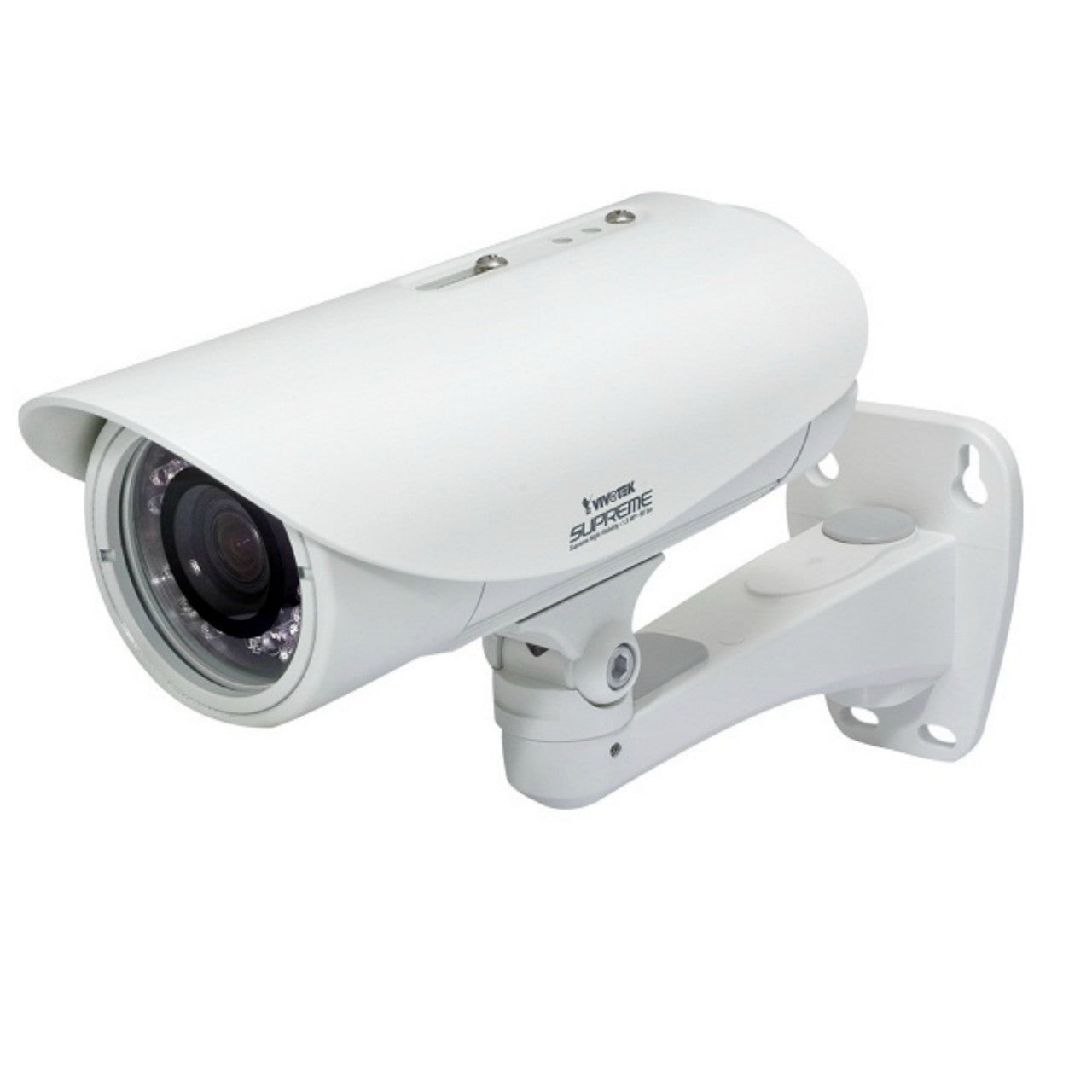

Vivotek IP8335H 720p HD Bullet Network Camera

Vivotek

Vivotek IP8335H 720p HD Bullet Network Camera

$410.00
Discontinued
SKU: IP8335H

Discontinued - Recommended Replacement: IB8338-H

Link to Manufacturer's Page

Contact

Discontinued; replaced by the IB8338-H.

Vivotek IP8335H Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/2.7" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut Filter for Day & Night Function
  • Minimum Illumination: 0.8 lux @ F1.2 ( typical ), 0.001 lux @ F1.2 ( B/W )
  • IR Illuminators: Yes, 12 Built-in IR Illuminators
  • IR Illuminator Range: Up to 20 meters
  • Lens Type: Board lens, vari-focal
  • Focal Length: f=3 ~ 9 mm, F1.2 (wide), F2.1 (tele)
  • Zoom: ePTZ
  • Iris: P-iris
  • Focus: Auto, focus assist
  • Field of View: 85.7° ~ 31.46° (horizontal) 73.16° ~ 25.4° (vertical) 99.82° ~ 39.67° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: H.264: Up to 30 fps at 1280x800, Up to 30 fps at 1280x720; MPEG-4: Up to 25 fps at 1280x800, MJPEG: Up to 30 fps at 1280x800
  • Image Settings: WDR Pro, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled day/night mode, Supports privacy masks
  • Privacy Mask: Yes
  • Built-In Microphone: No
  • Audio Capabilities: External microphone input, Audio output, Supports two-way audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, MicroSD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP67-rated housing
  • Dimensions: 70mm x 168 mm
  • Weight: 996 g
  • Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F )
  • Operating Humidity: 90% RH
  • Power: 12V DC, 24V AC, 802.3af Power-over-Ethernet (Class 3)
  • Warranty: 2 Years
  • What's Included: Mounting bracket w/ cable concealment, Installation Wizard 2, 32-CH ST750 recording software
Vivotek IP8335H Overview
VIVOTEK's IP8335H network bullet camera features an HD WDR CMOS sensor for use in challenging lighting conditions. The resulting WDR Pro feature enables the camera to capture both the dark and bright parts of an image with double shutters, enabling two frames to be combined to generate a highly realistic image representative of the original scene, providing video quality close to the capabilities of a human eye. The P-iris lens controls the iris with extreme precision with its built-in stepper motor, maintaining the opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality. As such, the IP8335H is suitable for high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more. The day and night functionality and the IP67-rated weatherproof housing of the IP8335H allows users to easily build a cost-effective IP surveillance system without additional accessories. Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage for up to 20 meters, the IP8335H is an outstanding choice for a 24-hour surveillance solution.
