Vivotek IP8337H-C Outdoor WDR Megapixel Bullet  Network Camera

Vivotek

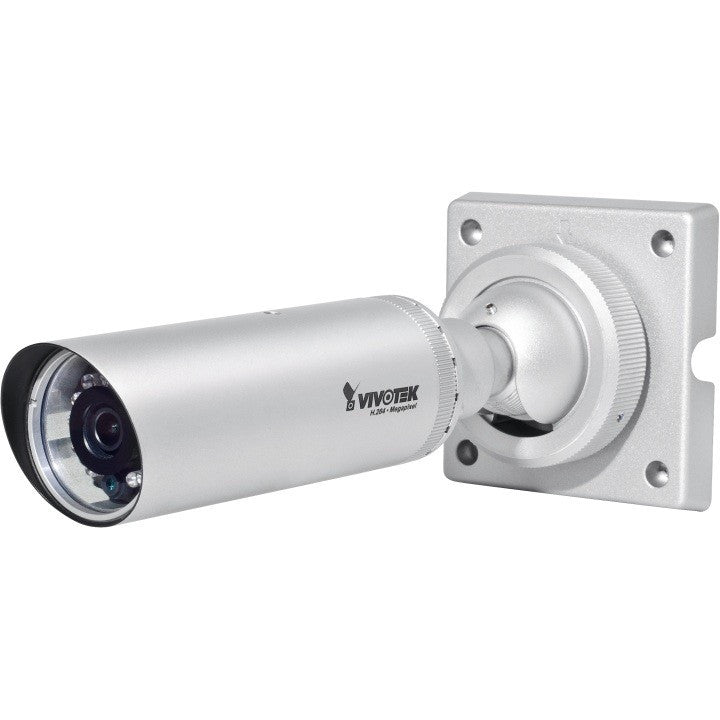

Vivotek IP8337H-C Outdoor WDR Megapixel Bullet Network Camera

Sale price$255.00
Discontinued
SKU: IP8337H-C

Contact

Discontinued; replaced by the IB836B-HF3.

Vivotek IP8337H-C Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter
  • Minimum Illumination: 0.48 Lux @ F1.6, 50 IRE (Color), 0.001 Lux@ F1.6, 50 IRE (B/W)
  • IR Illuminators: Yes, 12 Built-in IR Illuminators
  • IR Illuminator Range: Up to 20 meters
  • Lens Type: Fixed-focal
  • Focal Length: f=6 mm, F1.6
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Focus: Auto
  • Field of View: 56° (horizontal), 31° (vertical), 62° (diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 1280x800 in both H.264 & MJPEG
  • Image Settings: WDR Pro, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction
  • Privacy Mask: Yes
  • Built-In Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, Built-in MicroSD/SDHC Card Slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing
  • Dimensions: Ø: 60 mm x 294 mm
  • Weight: Net: 1,190 g
  • Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F )
  • Operating Humidity: 90%
  • Power: IEEE 802.3af PoE Class 3
  • Warranty: 2 Years
  • What's Included: Alignment Sticker, Cable management bracket, IP8337H-C Network Camera, L-type Hex Key Wrench, Quick Installation Guide, Rubber seal, Software CD & Warranty Card
Vivotek IP8337H-C Overview
VIVOTEK IP8337H-C is a best-in-class, bullet-style network camera designed for diverse outdoor applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at a smooth 30 fps, the IP8337H-C is an all-in-one outdoor camera capable of capturing high quality and high resolution video. In order to adapt to constantly changing outdoor lighting conditions, the IP8337H-C features a removable IR-cut filter as well as IR illuminators effective up to 20M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing and weather-proof casing to withstand rain and dust. The IP8337H-C further strengthens the robustness of the camera by protecting the cable within the bracket. The IP8337H-C supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264 and MJPEG compatibility all included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. The streams can also be individually configured to meet different needs or bandwidth constraints, thereby further optimizing bandwidth and storage. Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC card slot, and VIVOTEK's 32-channel recording software, the IP8337H-C is the ideal solution for your outdoor surveillance needs.
