Vivotek IP8355EH

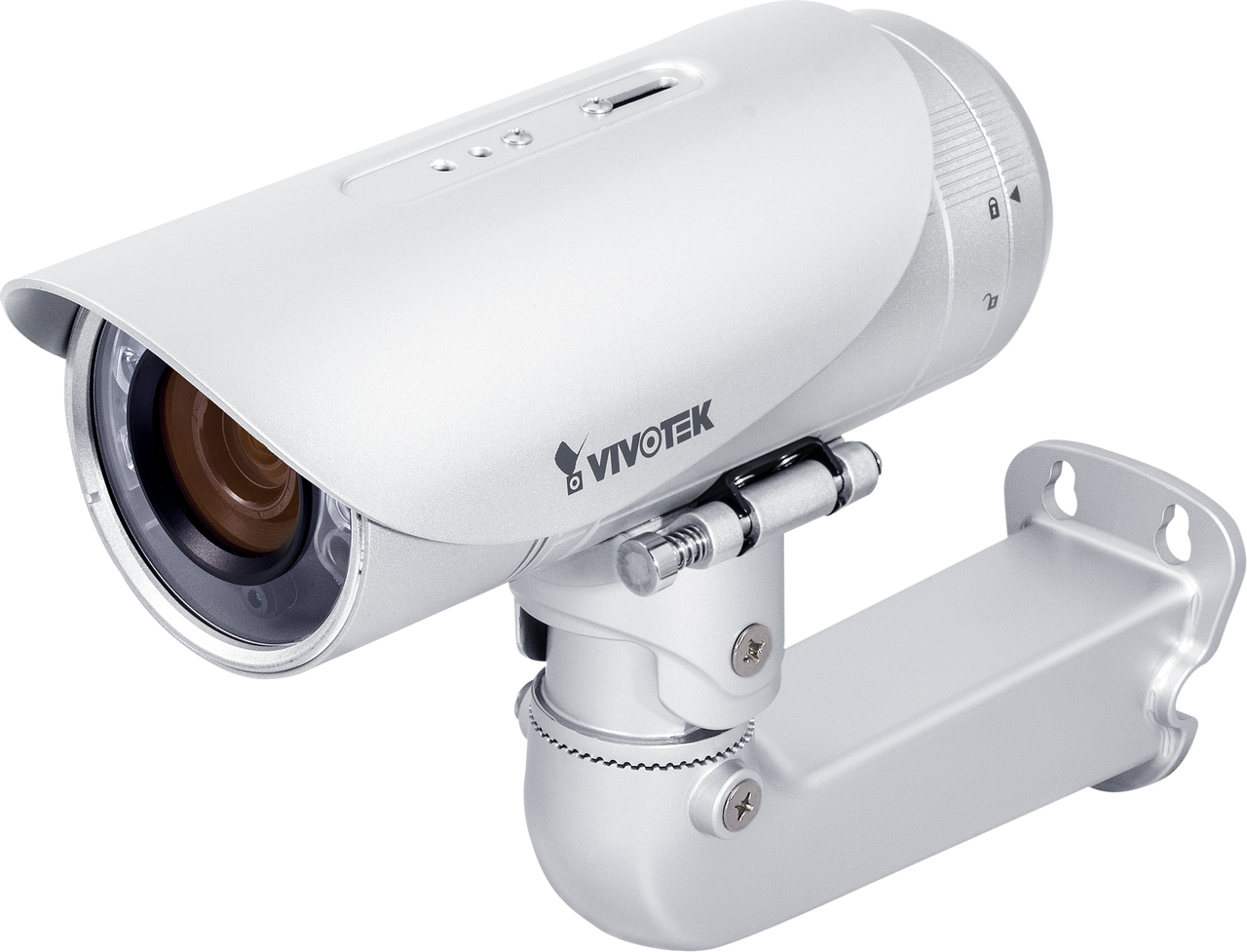

Vivotek IP8355EH 1.3MP WDR Pro Bullet Network Camera

Vivotek

Vivotek IP8355EH 1.3MP WDR Pro Bullet Network Camera

$665.00
Discontinued
SKU: IP8355EH
Link to Manufacturer's Page

Contact

Discontinued; replaced by the IB836BA-EHT.

Vivotek IP8355EH Features

  • Max Resolution: 1280x1024 (1.3MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut Filter for Day & Night Function
  • Minimum Illumination: 0.07 Lux @ F1.2, 50 IRE ( Color ), 0.001 Lux @ F1.2, 50 IRE ( B/W )
  • IR Illuminators: Yes, 4 Built-in IR Illuminators
  • IR Illuminator Range: Up to 30 meters
  • Lens Type: Board lens, Vari-focal, Remote Focus
  • Focal Length: f=3 ~ 9 mm / F1.2 (wide), F2.3 (tele)
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
  • Iris: P-iris
  • Focus: Smart Focus System with Remote focus
  • Field of View: 34° ~ 80° (horizontal), 27° ~ 62° (vertical), 44° ~ 101° (diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: In both compression modes: 30 fps @ 1280x1024 & 60 fps @ 1280x1024 (one-stream mode only)
  • WDR Technology: WDR Pro II
  • Image Settings: Time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D Noise Reduction, Smart Stream
  • Privacy Mask: Yes
  • Built-In Microphone: No
  • Audio Capabilities: External microphone input, Audio output, Supports two-way audio
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server & File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP67-rated housing
  • Dimensions: Ø: 85mm x 219 mm
  • Weight: Net: 1,314g (Body only) & Net: 1,911g (with stand and sunshield)
  • Operating Temperature: -50°C ~ 50°C (-58°F ~ 122°F) or PoE: -10°C ~ 50°C (14°F ~ 122°F)
  • Operating Humidity: 90% RH
  • Power: DC12V/AC24V or IEEE 802.3af PoE
  • Power Consumption: DC Max. 30W (Heater on) 8W (Heater off), AC Max. 30W (Heater on) 8.8W (Heater off), or PoE Max. 11W
  • Warranty: 2 Years
  • What's Included: IP8355EH Network Camera, User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software, Quick installation guide, warranty card, sun shield, wall mount bracket, waterproof RJ45 Ethernet enclosure, alignment sticker, desiccant bag, waterproof connector
Vivotek IP8355EH Overview

VIVOTEK IP8355EH is a professional outdoor bullet network camera offering 30 fps @ 1.3-Megapixel resolution with superb image quality. Featuring the new improved Wide Dynamic Range Technology WDR Pro II, it provides extreme visibility in extremely dark & light environments with 4-shutter capture method. Combined with 3D Noise Reduction Technology, which enables the IP8355EH to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can identify an increased level of image detail in extremely bright as well as dark environments. Additionally, as a professional day/night camera, IP8355EH adopts Smart IR technology which prevents overexposure and provides noise reduction to adjust IR lighting intensity instantaneously based on the changes of light in the ambient environment. To provide top-notch image quality, IP8355EH also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Therefore, IP8355EH is also designed with VIVOTEK's Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment. The camera's IP67-rated housing is designed to protect the camera body from being immersed in the water, even against the immersion at the depth of at least 1m. Additionally, the wide temperature range further enhances the IP8355EH performance and reliability in extremely cold and hot weather.
