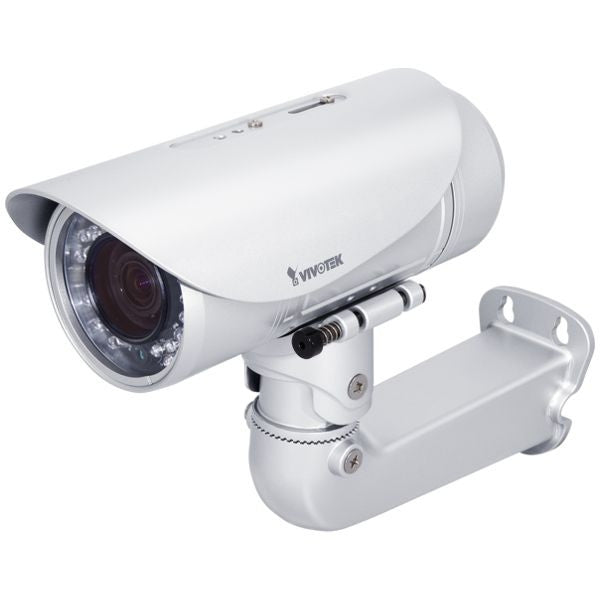

Vivotek IP8361 Day/Night 2MP H.264 Outdoor Bullet Network Camera

Vivotek

Vivotek IP8361 Day/Night 2MP H.264 Outdoor Bullet Network Camera

Sale price$470.00 Regular price$660.00
Discontinued
SKU: IP8361

Contact

Discontinued. Replaced by the IP8362.

Vivotek IP8361 Features

  • Max Resolution: 1600x1200
  • Image Sensor: 1/3.2" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.1 Lux @ F1.2, 50 IRE (color), 0.001 Lux @ F1.2, 50 IRE (B/W)
  • IR Illuminators: Yes
  • IR Illuminator Range: 25 meters
  • Lens Type: Vari-focal
  • Focal Length: f = 3 ~ 9 mm, 1.2 (wide), 2.1 (tele)
  • Zoom: ePTZ: 16x digital zoom
  • Iris: DC-iris
  • Focus: Manual
  • Field of View: 29.95° ~ 83.34° (horizontal), 22.99° ~ 61.93° (vertical), 39.87° ~ 104.52° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30 fps at 1280x720 & up to 15 fps at 1600x1200 on all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio input / Audio output, External microphone input, external line output
  • Alarm/Event Management: 3-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, SD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP67-rated housing
  • Dimensions: 83 mm x 212.5 mm
  • Weight: 1600 g
  • Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F )
  • Operating Humidity: N/A
  • Power: 802.3af Power-over-Ethernet (Class 3), 12V DC, 24V AC
  • Warranty: 2 Years
  • Also Included: IP8361, screws, wall mount bracket, alignment sticker, software CD, warranty card, waterproof connector
Vivotek IP8361 Overview
VIVOTEK IP8361 is a high-end 2-Megapixel bullet network camera for outdoor surveillance. Featuring high-resolution and high-performance H.264/MPEG-4/MJPEG compression technology, the IP8361 offers smooth video and wide coverage. With a combination of many outdoor-specific features, the IP8361 is the camera of choice for applications such as parking lots, gas stations, and building entrances. To adapt to light changes throughout the day, the IP8361 is furnished with an auto-iris lens, a removable IR-cut filter, and 25-meter IR illuminators for superior image quality around the clock. Moreover, the IP67-rated housing protects against rain and dust and ensures functional operation in all types of weather conditions. For easy management and waterproofing, the IP8361 is also equipped with a mounting bracket that conceals all cables within. The IP8361 also supports SD/SDHC/SDXC card on-board storage, which guarantees constant recording, even when the network is disconnected. With other advanced features such as tamper detection, 802.3af compliant PoE, and two-way audio, the IP8361 is an all-in-one network camera for outdoor environments.
