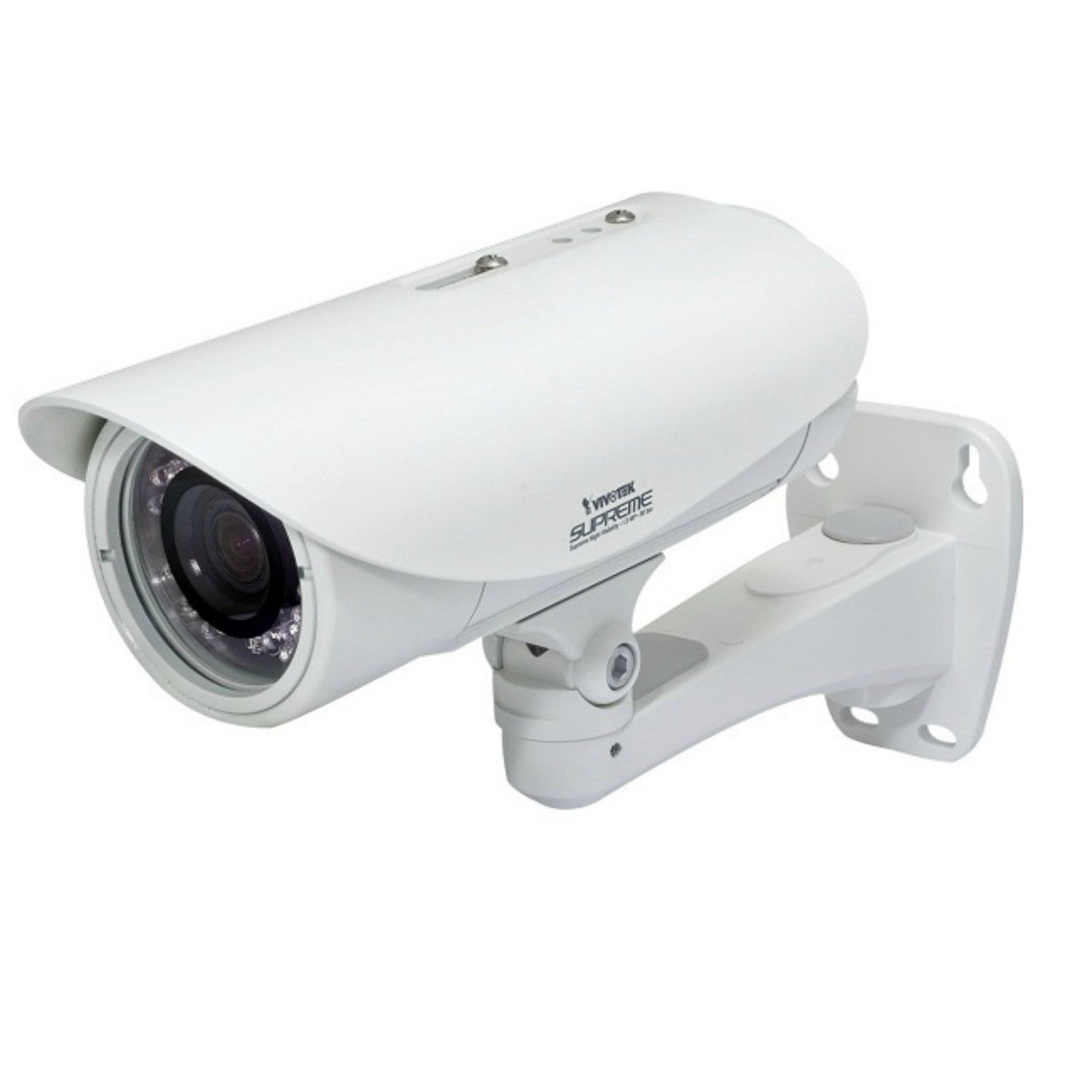

Vivotek IP8362 2MP Full HD WDR Network Camera
Discontinued - Recommended Replacement: IB836B-HT
Discontinued. Replaced by the IB8367-T.
Vivotek IP8362 Features
- Max Resolution: 1920x1080
- Image Sensor: 1/2.7" CMOS sensor
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
- Minimum Illumination: 0.08 Lux @ F1.2 (color), 0.001 Lux @ F1.2 (B/W)
- IR Illuminators: Yes, 12 Built-in IR Illuminators
- IR Illuminator Range: Up to 20 meters
- Lens Type: Vari-focal F 1.2 (wide), F 2.1 (tele)
- Focal Length: f=3 ~ 9 mm
- Zoom: N/A
- Iris: Auto Iris
- Focus: Auto
- Field of View: 37.5° ~ 103.7° (horizontal), 21.6° ~ 71.2° (vertical), 42.6° ~ 111.2° (diagonal)
- Compression Styles: H.264, MPEG-4 & MJPEG
- Frame Rate: Up to 30fps in all Compression Styles except for MPEG-4, 27 fps at 1920x1080
- Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled, day/night mode, Supports privacy masks, BLC (Backlight compensation), WDR enhanced
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: External microphone input, Audio output, Supports two-way audio, Supports audio mute
- Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
- ONVIF: Yes
- Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
- Users: 10 clients on-line monitoring at the same time
- On-board Storage: Yes, MicroSD/SDHC card slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weather-proof IP67-rated housing
- Dimensions: Camera: Ø 70 mm x 186 mm, Cable length: 520 mm, Cable diameter: Ø 7.2 mm; Max width: Ø 14 mm
- Weight: 990 g
- Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F )
- Operating Humidity: 90%
- Power: 802.3af Power-over-Ethernet (Class 3), 12V DC 24V AC, Max. 9.6 W
- Warranty: 3 Years
- What's Included: IP8362, Screws, Wall Mount Bracket, Alignment Sticker, Power Adapter, Software CD, Warranty Card, Waterproof Connector
Vivotek IP8362 Overview
VIVOTEK IP8362 is a best-in-class 1080p outdoor bullet network camera designed for diverse outdoor applications. With full HD resolution in 16:9 aspect ratio and WDR enhancement, users can identify image details in extremely bright as well as dark environments. The IP8362 supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with up to 30 fps @ 1080p full HD. Furthermore, the IP8362 boasts a number of innovative technologies, including Video Cropping and Activity Adaptive Streaming, giving user the utmost in bandwidth and storage efficiency. To adapt to constantly changing lighting conditions, the IP8362 comes with a removable IR-cut filter and built-in IR illuminators for both day and night applications. Its IP67-rated housing protects the camera body against rain and dust and ensures operation under extreme weather conditions. For complete installation and prevention of tampering and vandalism, the IP8362 is also packaged with a mounting bracket that conceals all cabling. With other advanced features such as tamper detection, 802.3af Compliant PoE, MicroSD/SDHC card slot for on-board storage, plus full HD video quality, the IP8362 is the best choice for the most demanding outdoor surveillance applications such as parking lots, entrances, communities, and much more.
