The Vivotek IP8364-C
IP8364-C Banner
IP8364-C Rear View
IP8364-C Rear View
Network Camera Store is an Authorized Vivotek Reseller
IP8364-C Whats Included
Vivotek IP8364-C H.264 compression
Vivotek IP8364-C microSD card slot
Vivotek IP8364-C removable IR-cut filter

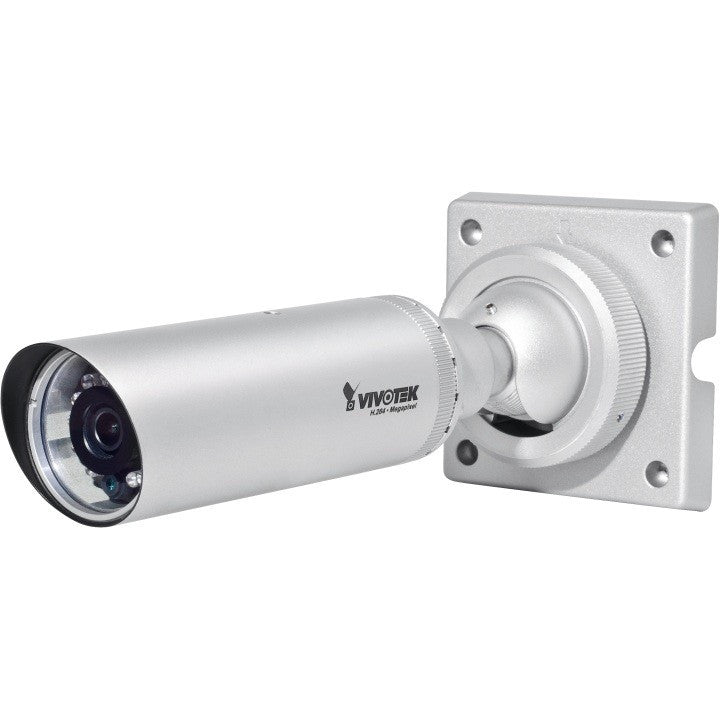

Vivotek IP8364-C Bullet Network Camera


Vivotek IP8364-C Bullet Network Camera

Sale price$337.00
SKU: IP8364-C

Discontinued; replaced by the IB8354-C.

Vivotek IP8364-C Features

  • Max Resolution: 1920x1080
  • Image Sensor: 1/2.7" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Built in Removable IR cut filter
  • Minimum Illumination: 0.18 Lux @ F1.6, 50 IRE ( Color ), 0.001 Lux @ F1.6, 50 IRE ( B/W )
  • IR Illuminators: Yes, 12 IR LED
  • IR Illuminator Range: Effective up to 20 meters
  • Lens Type: Fixed-focal
  • Focal Length: f = 6 mm
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Focus: Auto
  • Field of View: 59° (horizontal), 32° (vertical), 70° (diagonal)
  • Compression Styles: H.264 &MJPEG
  • Frame Rate: H.264: 30 fps @ 1920x1080 & MJPEG: 30 fps @ 1920x1080
  • Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection: Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing, Mounting bracket with cable management
  • Dimensions: Ø: 60 mm x 294 mm
  • Weight: Net: 1,190 g
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: IEEE 802.3af PoE Class 3
  • Warranty: 2 Year
  • What's Included: IP8364-C Network Camera, Cable management bracket, L-type Hex Key Wrench / Screws, Alignment Sticker, Quick Installation Guide, Rubber seal, Software CD, Dessicant Bag, Warranty Card
Vivotek IP8364-C Overview
VIVOTEK IP8364-C is a best-in-class, bullet-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IP8364-C is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel. In order to adapt to constantly changing outdoor lighting conditions, the IP8364-C features a removable IR-cut filter as well as IR illuminators effective up to 20M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing and weather-proof casing to withstand rain and dust. The IP8364-C further strengthens the robustness of the camera by protecting the cable within the bracket. The IP8364-C supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264 & MJPEG compatibility all included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. The streams can also be individually configured to meet different needs or bandwidth constraints, thereby further optimizing bandwidth and storage. Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXCcard slot, and VIVOTEK's 32-channel recording software, the IP8364-C is the ideal solution for your outdoor surveillance needs.
