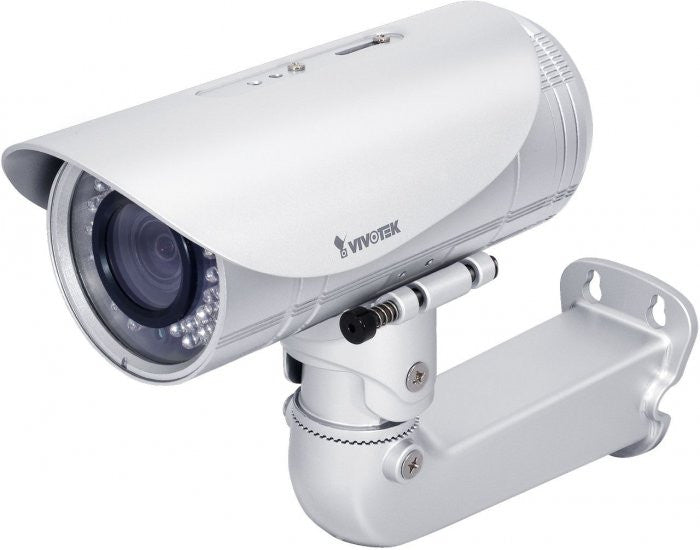

Vivotek IP8372 5MP Bullet Network Camera


Vivotek IP8372 5MP Bullet Network Camera

Sale price$845.00
SKU: IP8372

Discontinued, replaced with the IB8381-E.

Vivotek IP8372 Features

  • Max Resolution: 2560 x 1920
  • Image Sensor: 1/2.5" Progressive CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.03 Lux @ F1.8, 50 IRE (Color), 0.001 Lux @ F1.8, 50 IRE (B/W)
  • IR Illuminators: Yes
  • IR Illuminator Range: 30 meters
  • Lens Type: Vari-focal
  • Focal Length: f = 3.79 - 9mm, F1.8 (wide), F3.4 (tele)
  • Zoom: ePTZ: 48x digital zoom
  • Focus: Smart Focus System with remote focal & focus control
  • Field of View: 35.45° ~ 73° (horizontal), 26.69° ~ 54.77° (vertical), 43.99° ~ 90.91° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: H.264: 10 fps at 2560x1920, 30 fps at 1920x1080, MPEG-4: 10 fps at 1920x1536, 25 fps at 1920x1080, MJPEG: 13 fps at 2560x1920, 30 fps at 1920x1080
  • Image Settings: WDR Enhanced, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio input / Audio output (full duplex), External microphone input, external line input
  • Alarm/Event Management: 3 window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, event notification using digital output, HTTP, SMTP, FTP and NAS server; file upload via HTTP, SMTP, FTP, and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: No
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP67-rated housing
  • Dimensions: 85mm x 205 mm
  • Weight: 1750 g
  • Operating Temperature: -30 ~ 50°C (-22 ~ 122°F )
  • Operating Humidity: N/A
  • Power: 24V AC, 12V DC, IEEE 802.3af PoE Class 3
  • Warranty: 2 Years
  • What's Included: IP8372, screws, wall mount bracket, alignment sticker, quick installation guide, software CD, warranty card, waterproof connectors
Vivotek IP8372 Overview
VIVOTEK IP8372 is a professional bullet camera offering 5-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. Featuring 5-Megapixel resolution and high-performance H.264/MPEG-4/MJPEG compression technology, the IP8372 offers extra-smooth video and wide coverage. The IP8372 employs many advanced features to allow users to fully utilize the high definition video. The ePTZ function enables users to zoom in and focus on a region of interest (ROI) in the camera view with only a few clicks of a mouse. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. The Smart Focus System allows for easy installation and adjustment by adopting a lens with a built-in stepper motor that can remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance. Aimed at outdoor surveillance, the IP8372 is furnished with an auto-iris lens, a removable IR-cut filter, and 30-meter IR illuminators for superior image quality around the clock. Moreover, the IP67-rated housing protects against rain and dust and ensures functional operation in all types of weather conditions. For easy management and waterproofing, the IP8372 is also equipped with a mounting bracket that conceals all cables within. With other advanced features such as tamper detection, 802.3af compliant PoE, SD/SDHC/SDXC card on-board storage, and two-way audio, the IP8372 is an all-in-one network camera for detailed surveillance in outdoor environments.
