Vivotek

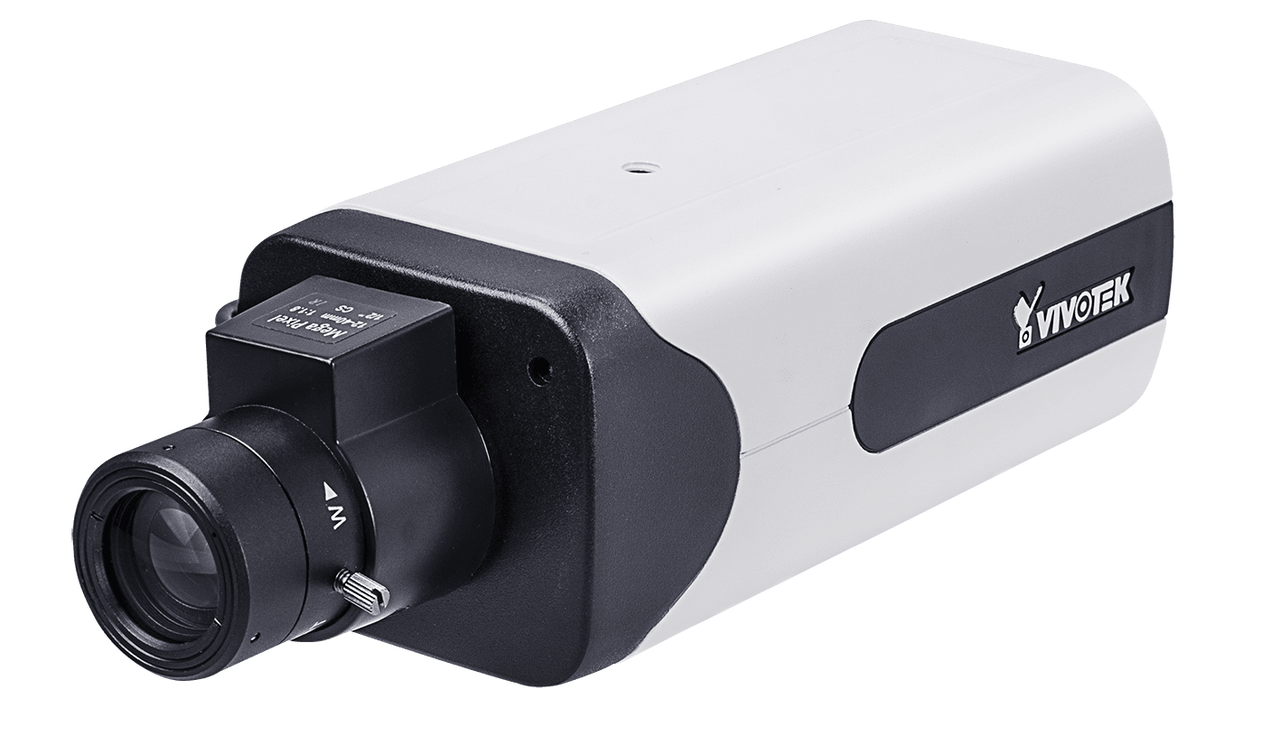

Vivotek IP9165-LPC 2MP 60fps H.265 Remote Back Focus Box Network Camera
Discontinued - Recommended Replacement: IP9165-LPC-v2
Choose options
Discontinued - Recommended Replacement: IP9165-LPC-v2
Discontinued - Recommended Replacement: IP9165-LPC-v2
Discontinued - Suggested Replacement IP9165-LPC-v2
Features
Camera Features
- Image Sensor 1/2" Progressive CMOS
- Maximum Resolution 1920x1080
- Lens Type Vari-focal, Remote Back Focus
- Focal Length f = 12 ~ 40 mm
- Aperture F1.8 ~ F2.3
- Iris type P-iris (i-CS/DC-iris reserved)
- Field of View 11.6° ~ 34.2° (Horizontal), 6.6° ~ 18.7° (Vertical), 13.3° ~ 39.8° (Diagonal)
- Shutter Time 1/60 sec. to 1/16,000 sec.
- WDR Technology WDR Pro II
- Day/Night Yes
- Removable IR-cut Filter Yes (Headlight filter design for Anti-Glare)
- Minimum Illumination 0.08 Lux @ F1.8 (Color)
- Pan/tilt/zoom Functionalities ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity:128GB), Seamless Recording
Video
- Compression H.265, H.264, MJPEG
- Maximum Frame Rate 60 fps @ 1920x1080
- Maximum Streams 4 simultaneous streams
- S/N Ratio 66.2 dB
- Dynamic Range 140 dB
- Video Streaming Adjustable resolution, quality and constant, bit rate control; Smart Stream III
- Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile
Audio
- Audio Capability Two-way audio
- Compression G.711, G.726
- Interface External microphone input, External line output
Network
- Users Live viewing for up to 10 clients
- Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
- Interface 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
- ONVIF Supported
Intelligent Video
- Video Motion Detection Five-window video motion detection
Alarm and Event
- Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
- Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card
- File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
General
- Connectors RJ-45 cable connector for Network/PoE connection *1, Audio input *1, Audio output *1, DC 12V/AC 24V power in *1, Digital input *2, Digital output *2, RS485 *1, BNC *1
- LED Indicator System power and status indicator
- Power Input IEEE 802.3af PoE Class 0 / DC 12V / AC 24V
- Power Consumption DC 12V: Max. 9 W
- AC 24V: Max. 18 W / PoE: Max. 9.06 W
- Dimensions 151 x 70 x 61 mm (w/o lens), 203 x 70 x 61 mm (w/ lens)
- Weight 680 g (w/o lens), 790 g (w/ lens)
- Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
- Operating Temperature Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
- Working temperature: -10°C ~ 60°C (14°F ~ 140°F)
- Humidity 90%
- Warranty 36 months
Included Accessories
- Quick installation guide, warranty card, lens, camera stand, screw pack
