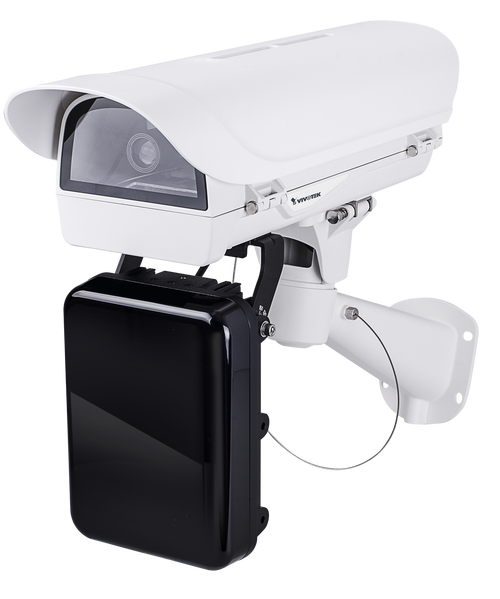

Vivotek IP9165-LPCKIT-S License Plate Capture Kit (Street)

Discontinued - Recommended Replacement: IP9165-LPCKIT-S1-v2

Features

• Please Note: Kit does not include a power supply or LPR software. We recommend the AA-352 or AA-351 for the power supplies.

General

• LPR Speed Range: 60MPH (90 km/hr), with CM48I8-2040 IR
• IR Threshold IR on: 300 Lux, IR off: 600 Lux, RS485 configurable
• Shutter Time 1/1,000 to 1/10,000 sec.
• Max. Shutter Time 1/5 to 1/32,000 sec.
• IR Illuminators CM48I8-2040 *1, 48W, 20° ~ 40° adjustable beam
• Capture Range Up to 35 meters *Suggested Distance: 10 ~ 20 m
• Captured Lanes Road-side: 2 Lane, Gantry: 2 Lanes *Suggested width per lane: 3.5 ~ 4M
• Power Input AC/DC 24V
• Power Consumption Max. 78 W, AC/DC 24V
• Suggested Power: DC 24V or AC 24V / 3.5A
• Weight 6,482 g (14.29 lb)
• Housing Weather-proof IP68-rated housing
• Vandal-proof IK10-rated housing
• Starting Temperature: 0°C ~ 60°C (32°F ~ 140°F)
• Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F), -40°C ~ 60°C (-40°F ~ 140°F), with optional cold start heater
• Humidity 90%

Video

• Compression H.265, H.264, MJPEG
• Maximum Streams 4 simultaneous streams
• Image Settings Adjustable image size, quality and bit rate;Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile, LPC scene mode

Network

• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interface 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
• ONVIF Supported

Intelligent Video

• Video Motion Detection Five-window video motion detection

Alarm and Event

• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card
• File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• IP Camera Connectors RJ-45 cable connector for Network/PoE connection *1, Audio input *1, Audio output *1, DC 12V/AC 24V power input *1, Digital input *2, Digital output *2, RS485 *1, BNC *1
• Safety Certifications IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Warranty 36 months

For specifications on the individual parts that make up the Kit, follow the links below.
