Vivotek IP9165-LPCKIT-S1

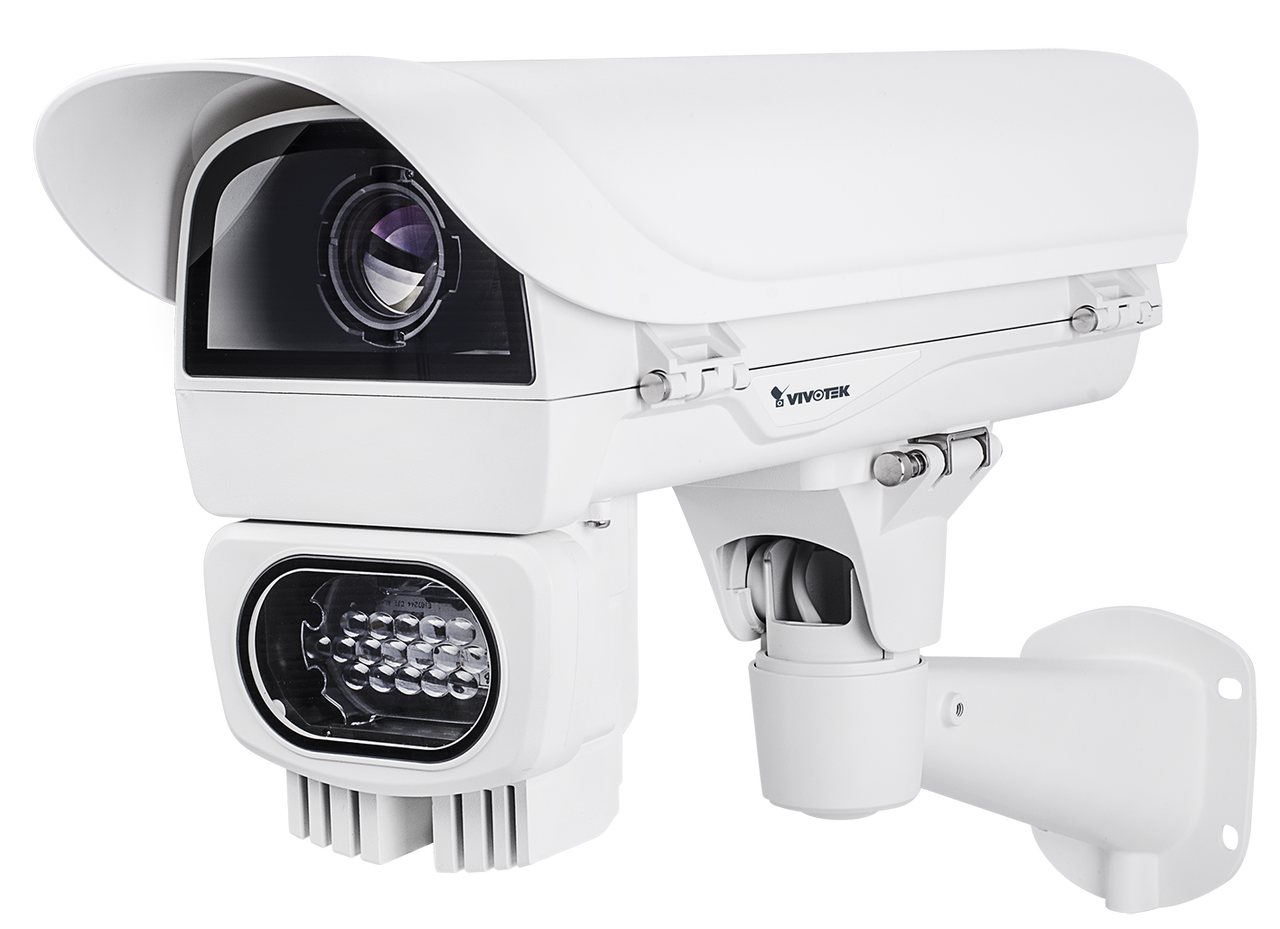

Vivotek IP9165-LPCKIT-S1 License Plate Capture Kit (Street)

Vivotek

Vivotek IP9165-LPCKIT-S1 License Plate Capture Kit (Street)

$1,229.00
Discontinued
SKU: IP9165-LPCKIT-S1
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement:

IP9165-LPCKIT-S1-v2

Features

  • Please Note: Kit does not include a power supply or LPR software. We recommend the AA-352 or AA-351 for the power supplies.

General

  • LPR Speed Range: 60MPH (90 km/hr), with AI-109 IR
  • IR Threshold IR on: 300 Lux, IR off: 600 Lux, RS485 configurable
  • Shutter Time 1/1,000 to 1/10,000 sec.
  • Max. Shutter Time 1/5 to 1/32,000 sec.
  • IR Illuminators AI-109 *1, 48W, 10° ~ 30° remote control beam angle, embedded IR illuminator
  • Capture Range Up to 35 meters *Suggested Distance: 10 ~ 20 m
  • Captured Lanes Road-side: 1 Lane, Gantry: 2 Lanes *Suggested width per lane: 3.5 ~ 4M
  • Power Input AC/DC 24V
  • Power Consumption Max. 78 W, AC/DC 24V
  • Suggested Power: DC 24V or AC 24V / 3.5A
  • Weight 6,200 g (13.66 lb)
  • Housing Weather-proof IP68-rated housing
  • Vandal-proof IK10-rated housing
  • Starting Temperature: 0°C ~ 60°C (32°F ~ 140°F)
  • Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F), -40°C ~ 60°C (-40°F ~ 140°F), with optional cold start heater
  • Humidity 90%

Video

  • Compression H.265, H.264, MJPEG
  • Maximum Streams 4 simultaneous streams
  • Image Settings Adjustable image size, quality and bit rate;Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile, LPC scene mode

Network

  • Users Live viewing for up to 10 clients
  • Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
  • Interface 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
  • ONVIF Supported

Intelligent Video

  • Video Motion Detection Five-window video motion detection

Alarm and Event

  • Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
  • Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card
  • File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

  • IP Camera Connectors RJ-45 cable connector for Network/PoE connection *1, Audio input *1, Audio output *1, DC 12V/AC 24V power input *1, Digital input *2, Digital output *2, RS485 *1, BNC *1
  • Safety Certifications IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL
  • Warranty 36 months
  • May also be know by model number IP9165-LPC-S1

For specifications on the individual parts that make up the Kit, follow the links below.
