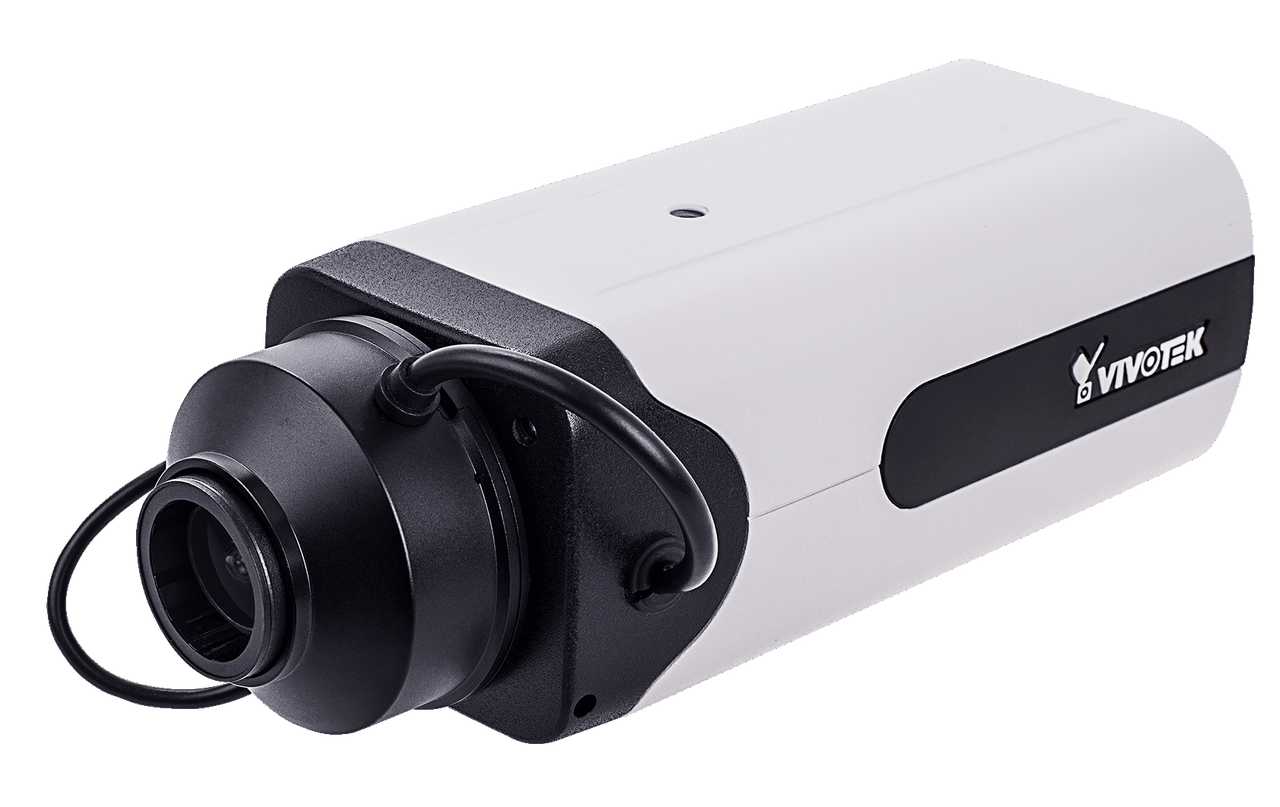

Vivotek IP9167-HT 2MP 2.8-10mm Remote Focus Box Network Camera

Vivotek IP9167-HT Features

Camera Features

• Image Sensor 1/2.8" Progressive CMOS
• Maximum Resolution 1920x1080
• Lens Type Vari-focal, Remote Focus, CS-mount
• Focal Length f = 2.8 ~ 10 mm
• Aperture F1.6 ~ F2.97
• Iris type P-iris
• Field of View 35° ~ 105° (Horizontal), 20° ~ 55° (Vertical), 41° ~ 127° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Minimum Illumination 0.07 Lux @ F1.6 (Color), 0.01 Lux @ F1.6 (B/W)
• Day/Night Removable IR-cut filter for day & night function
• ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording

Video

• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 61 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, AE speed, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation

Audio

• Audio Capability Two-way audio
• Compression G.711, G.726
• Interface External microphone input, External line output

Network

• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interface 10 Base-T/100 BaseTX Ethernet (RJ-45)
• ONVIF Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection Five-window video motion detection

Alarm and Event

• Alarm Triggers Motion detection,manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors RJ-45 cable connector for Network 10/100Mbps, PoE connection*1, Audio input*1, Audio output*1, DC 12V power input*1, Digital input *2, Digital output*2, RS-485*1
• LED Indicator System power and status indicator
• Power Input IEEE 802.3af PoE Class 2, DC 12V
• Power Consumption Max 6.5W
• Dimensions 188 (D) x 70 (W) x 61 (H) mm
• Weight 660 g
• Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL, EN50121-4
• Operating Temperature Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
• Working temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Humidity 90%
• Warranty 36 months

System Requirements

• Operating System Microsoft Windows 8/7
• Web Browser Mozilla Firefox 7~43 (streaming only)
• Internet Explorer 10/11
• Other Players VLC: 1.1.11 or above
• Quicktime: 7 or above

Included Accessories

• Quick installation guide, warranty card, camera stand, screw pack

Please note: This camera is available with a 2.8-10mm lens (IP9167-HT 10mm) or a 12-40mm lens (IP9167-HT 40mm)

Vivotek IP9167-HT Overview

VIVOTEK’s IP9167-HT is a brand-new professional H.265 box network camera designed for a wide range of surveillance application, such as city surveillance, banking and SMB. It is equipped with a 2MP sensor with a viewing resolution of 1920x1080 at 30 fps. Furthermore, IP9167-HT includes either a f2.8-12mm or a f12-40mm remote focus lens, allowing the installer to have great coverage flexibility.

With the most up to date VIVOTEK Smart Stream III technology, the camera is able to optimize quality for desired regions and thus ensure maximum bandwidth efficiency. By combining both H.265 and Smart Stream III, the IP9167-HT can reduce both bandwidth and storage consumption by up to 90%*.

In addition, the IP9167-HT is equipped with WDR Pro enabling the camera to capture both the dark and bright areas of an image, then combining the differences to create a highly realistic representation of the original scene. Even further improving the camera’s versatility, the IP9167-HT includes SNV technology, making possible high quality full-color surveillance video under low-light conditions. These combined features enable the IP9167-HT to provide video quality strikingly close to the capabilities of the human eye.
