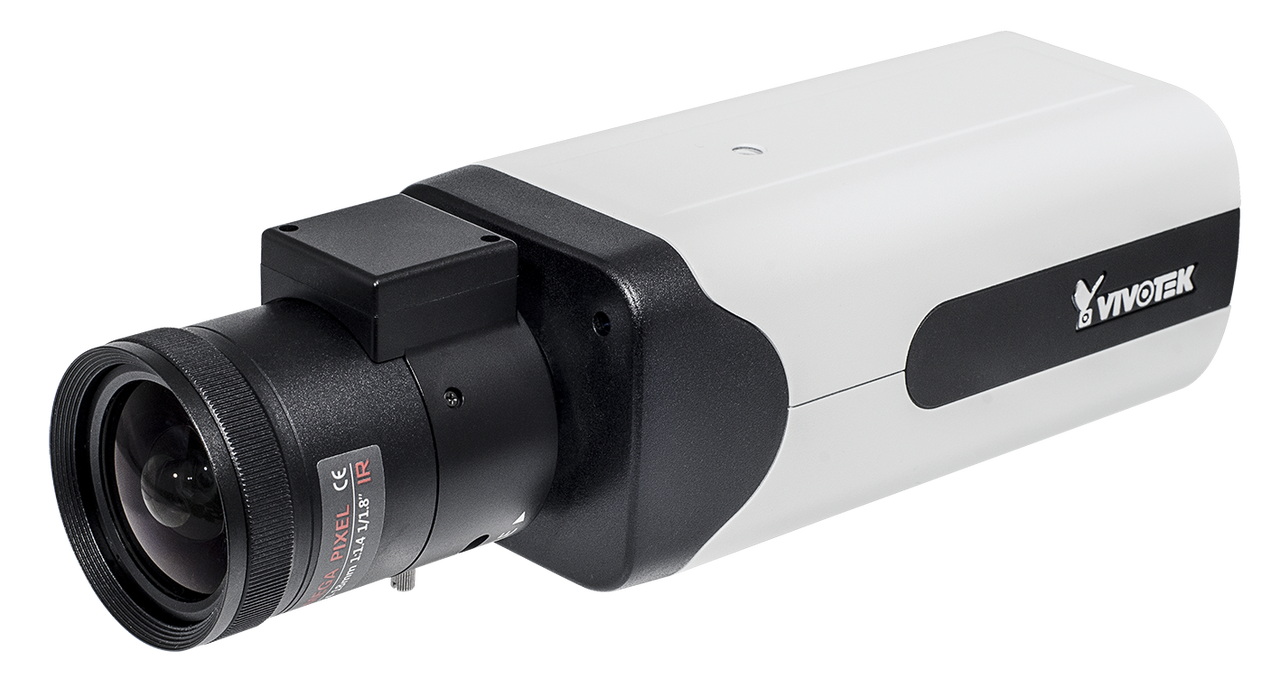

Vivotek IP9171-HP 3MP H.265 Remote Focus Box Network Camera

Vivotek IP9171-HP Features

• Max Resolution: 2048x1536 (3MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.01 Lux @ F1.2 (Color), 0.001 Lux @ F1.2 (B/W)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Vari-focal
• Focal Length: f = 2.8 - 8 mm / F1.2 ~ F1.95
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
• Iris: P-iris
• Focus: Remote Back Focus
• Field of View: 51°~114° (Horizontal), 39°~84° (Vertical), 63°~143° (Diagonal)
• Compression Styles: H.265 & H.264 & MJPEG
• Frame Rate: 30fps @ 2048x1536, 30fps @ 1920x1080
• WDR Technology: Yes, WDR Pro (100dB)
• Image Settings: Adjustable resolution, quality and bitrate Smart Stream II, Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, video rotation, 3DNR, defog, Snapshot Focus, Lens Profile
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two-way audio (full duplex) via External microphone input & Audio output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, Built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: 210 mm (D) x 70 mm (W) x 63 mm (H)
• Weight: 623 g (1.37 lb)
• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F )
• Operating Humidity: 90%
• Power/Comsumption: DC12 V/AC 24V, IEEE 802.3af PoE / Max. 8.6 W (DC 12V), Max. 14.9 W (AC 24V), Max. 10.8 W (PoE)
• Warranty: 2 years
• What's Included: Quick installation guide, mounting bracket, screw pack, Lens, software CD (User's manual, quick installation guide, Installation Wizard 2, VAST)

Vivotek IP9171-HP Overview

VIVOTEK’s IP9171-HP is a brand-new professional H.265 box network camera offering up to 30 fps at 3-Megapixel with superb image quality. By utilizing VIVOTEK's sophisticated Smart Stream II, the camera is able to optimize resolution for a desired object or area and thus ensure maximum efficiency of bandwidth usage. Combining both H.265 and Smart Stream II, the IP9171-HP can reduce both bandwidth and storage consumption by up to 80%* while maintaining the high standard of image quality. This unique combination of high resolution and low storage consumption make the IP9171-HP suitable for a wide range of video surveillance applications, including government and industrial buildings, retail environments, airports, railway stations and schools.

Additionally, employing WDR Pro allows the camera to capture both the dark and bright areas of an image, combining the differences to create a highly realistic representation of the original scene. Further improving the IP9171-HP’s range of operating conditions, SNV technology makes high-quality full-color surveillance video possible under low-light conditions. Together, these features enable the camera to provide video quality strikingly close to the capabilities of the human eye. Further enhancing the camera’s ability to adapt to its environment, precise software controls maintain the iris opening of the IP9171-HP's lens at an optimal level at all times, resulting in superior sharpness as well as depth of field. Finally, the IP9171-HP is also endowed with VIVOTEK's RBF (Remote Back Focus) System, empowering the installer to adjust focus both precisely and with greater flexibility.
