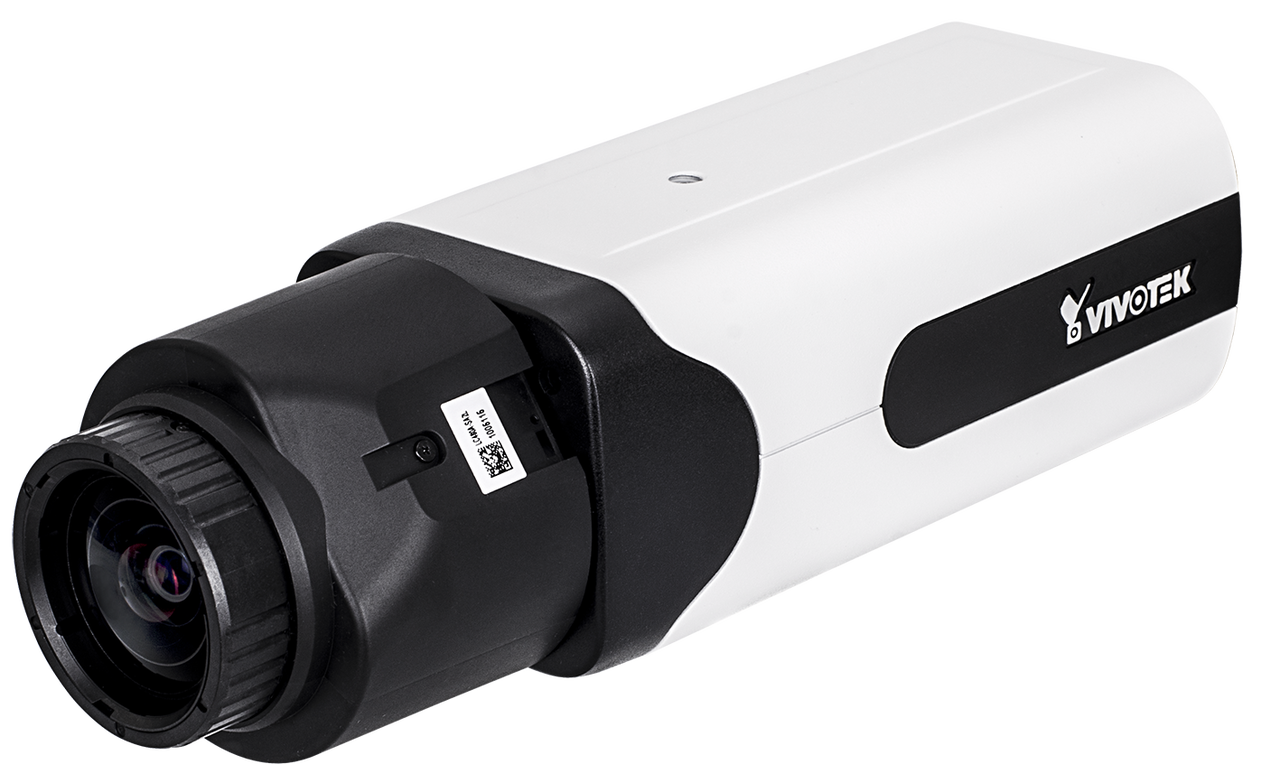

Vivotek IP9181-H 5MP H.265 Remote Back Focus Box Network Camera

Replaced by the IP9191-HP

Vivotek IP9181-H Features

• Max Resolution: 2560x1920(5MP)
• Image Sensor: 1/1.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.07 Lux @ F1.6 (Color), 0.001 Lux @ F1.6 (B/W)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Vari-focal
• Focal Length: f= 4.1 ~ 9 mm / F1.6 ~ F2.4
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
• Iris: DC-iris ( P-iris reserved)
• Focus: Remote Back Focus
• Field of View: 46° ~ 90° (Horizontal), 35° ~ 68° (Vertical), 58° ~ 117° (Diagonal)
• Compression Styles: H.265 & H.264 & MJPEG
• Frame Rate: H.265 & H.264: 30 fps @ 2560x1920 or 60 fps @ 1920x1080 / MJPEG: 12 fps @ 2560x1920 or 30 fps @ 1920x1080
• WDR Technology: Yes, WDR Pro
• Image Settings: Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, video rotation, 3DNR, defog, Snapshot Focus, Lens Profile, DIS
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two-way audio (full duplex) via External microphone input & Audio output
• Alarm/Event Management: Five-window video motion detection, Line crossing detection, field detection, loitering detection manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Supported, specification available at www.onvif.org
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, Built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: 210 mm (D) x 70 mm (W) x 63 mm (H)
• Weight: 766 g
• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F )
• Operating Humidity: 90%
• Power/Comsumption: DC12 V/AC 24V, IEEE 802.3af PoE / Max. 9.7 W
• Warranty: 3 years
• What's Included: User's manual, quick installation guide, Installation Wizard 2, VAST, Quick installation guide, mounting bracket, screw pack, Lens

Vivotek IP9181-H Overview

VIVOTEK’s IP9181-H is a brand-new professional H.265 box network camera offering up to 30 fps @ 5-Megapixel or 60 fps @ 1080p with superb image quality at all resolutions or frame rates. By utilizing VIVOTEK's sophisticated Smart Stream II, the camera is able to optimize quality for desired regions and thus ensure maximum efficiency of bandwidth usage. Combining both H.265 and Smart Stream II, the IP9181-H can reduce both bandwidth and storage consumption by up to 80%* while keeping the high standard of image quality as a 5-Megapixel camera. This unique combination of high resolution and low storage consumption make the IP9181-H suitable for a wide range of video surveillance applications, including government and industrial buildings, retail environments, airports, railway stations and schools.
