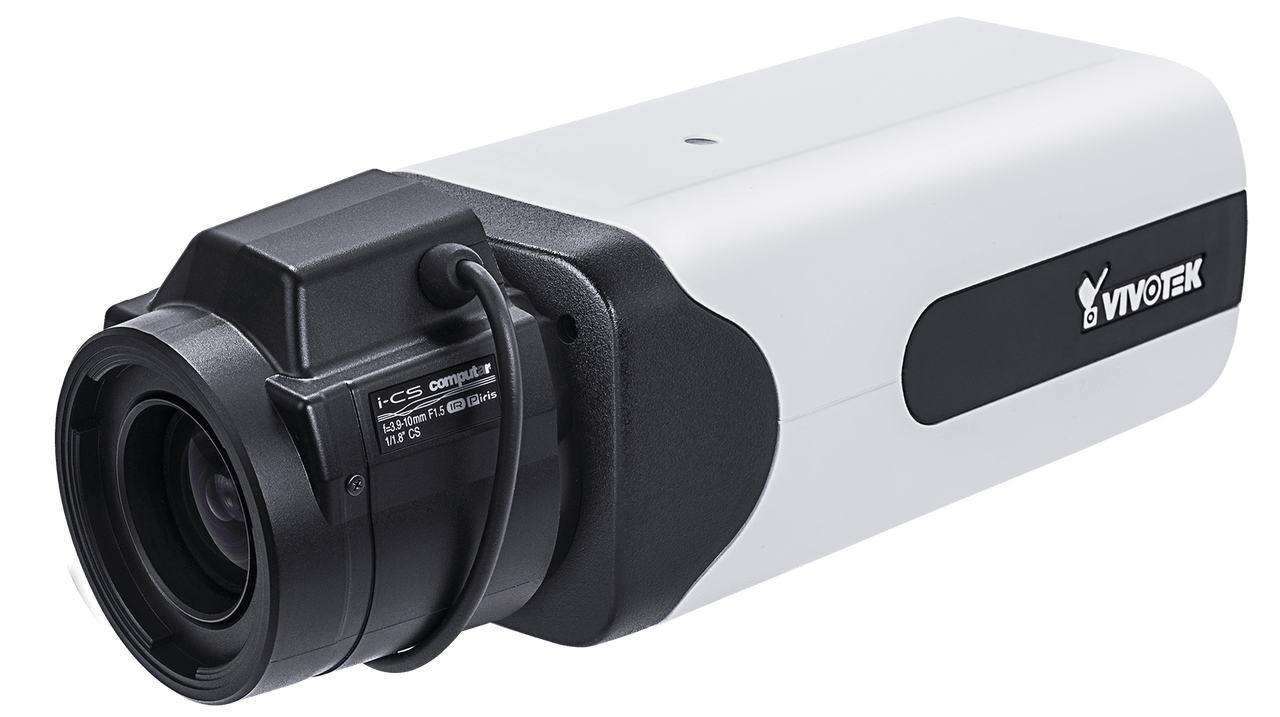

Vivotek IP9191-HT 8MP/4K H.265 i-CS Iris Remote Back Focus Box Network Camera

Discontinued Recommended Replacement:

IP9191-HP

Vivotek IP9191-HT Features

Camera Features

• Image Sensor 1/2" Progressive CMOS
• Max. Resolution 3840x2160
• Lens Type Vari-focal, Remote Focus, i-CS
• Focal Length f = 3.9 ~ 10 mm
• Aperture F1.5 ~ F2.7
• Iris type i-CS (P-iris/DC-iris reserved)
• Field of View 45° ~ 119° (Horizontal), 25° ~ 63° (Vertical), 52° ~ 142° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes
• Removable IR-cut Filter Yes
• Minimum Illumination 0.02 Lux @ F1.5 (Color), 0.01 Lux @ F1.5 (B/W)
• ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording

Video

• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 3840x2160 (WDR Pro on), 120 fps @ 1920x1080 (WDR Pro off)
• Maximum Streams 3 simultaneous streams
• S/N Ratio 60.5 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III
• Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile, remote focus, lens distortion correction (LDC)

Audio

• Audio Capability Two-way audio
• Compression G.711, G.726
• Interface External microphone input, External line output

Network

• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/ TLS
• Interface 10 Base-T/100 Base-TX Ethernet /1000 Base-T (RJ-45)
• ONVIF Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection Five-window video motion detection

Alarm and Event

• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors RJ-45 cable connector for Network 10/100/1000 Mbps, PoE connection*1, Audio input*1, Audio output*1, DC 12V/AC 24V power input *1, Digital input*2, Digital output*2, RS-485 *1
• LED Indicator System power and status indicator
• Power Input DC 12V, AC 24V, IEEE 802.3af PoE Class 0
• Power Consumption Max. 12 W
• Dimensions 151 x 70 x 61 mm (w/o lens), 210 x 70 x 61 mm (w/ lens)
• Weight 671 g (w/o lens), 743 g (w/ lens)
• Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Operating Temperature Start Temperature:, 0°C ~ 50°C (32°F ~ 122°F)
• Working temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Humidity 90%
• Warranty 36 months

System Requirements

• Operating System Microsoft Windows 8/7
• Web Browser Mozilla Firefox 7~43 (streaming only)
• Internet Explorer 10/11
• Other Players VLC: 1.1.11 or above
• Quicktime: 7 or above

Included Accessories

• Others Quick installation guide, warranty card, lens (AE-251), camera stand, screw pack

Vivotek IP9191-HT Overview

VIVOTEK’s IP9191-HT is a professional H.265 box network camera providing true 3840x2160 resolution at 30 fps. With ultra HD resolution, 30 frames per second, and VIVOTEK’s SNV and WDR Pro technologies, this camera is capable of delivering clear, detailed images in a variety of challenging applications such as city surveillance, transportation and industrial monitoring.

VIVOTEK's in-house algorithm brings video compression to next level. With VIVOTEK’s Smart Stream III technology, the IP9191-HT is capable of delivering excellent images while keeping bandwidth and storage consumption at extremely low levels, even smaller than typical 2-Megapixel image size.

The IP9191-HT is further equipped with an i-CS (intelligent-CS mount) lens with LSC (Lens Shading Correction) and LDC (Lens Distortion Correction) calibration functions to obtain even better images. When combined with remote focus system, these features enable installers to adjust zoom/focus remotely. These function-rich combinations make the IP9191-HT suitable for a wide range of video surveillance applications.

When housed inside the AE Series Enclosures, the IP9191-HT is excellent for long-range outdoor applications. Furthermore, when equipped with the 12-50mm AL-248 lens, the IP9191-HT is an ideal camera that could deliver exceptional images even from surveillance targets that are over 100 meters away.
