Vivotek IT9389-H-B-F3 5MP 3.6mm Turret Dome Network Camera

Discontinued Recommended Replacement:

IT9389-HF3-v2or IT9388-HTV

Features

• Also available in White as the IT9389-H or with a 2.8mm lens as the IT9389-H-B-F2

Camera Features

• Image Sensor 1/2.7" Progressive CMOS
• Max. Resolution 2560x1920 (5MP)
• Lens Type Fixed-focal
• Focal Length f = 3.6 mm
• Aperture F2.0
• Auto-iris Fixed-iris
• Field of View 76° (Horizontal), 56° (Vertical), 100° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes

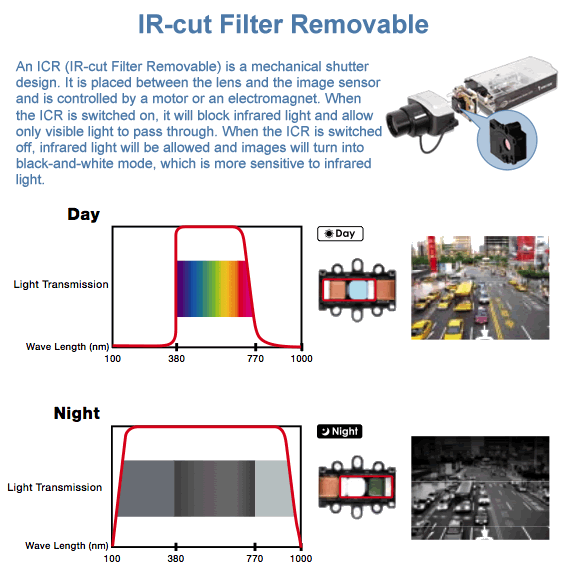

• Removable IR-cut Filter Yes

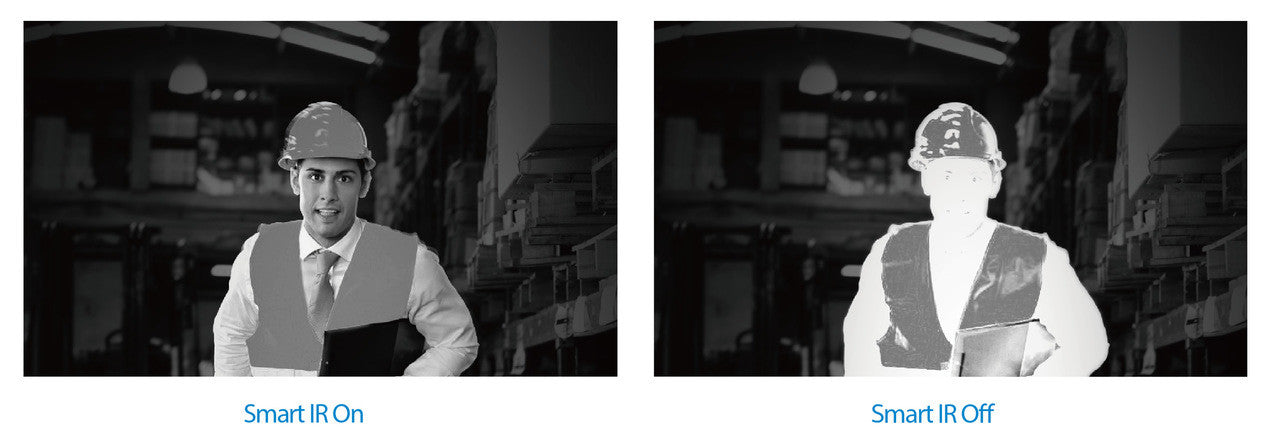

• IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
• Minimum Illumination 0.06 Lux @ F2.0 (Color), 0.01 Lux @ F2.0 (B/W), 0 Lux with IR illumination on
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

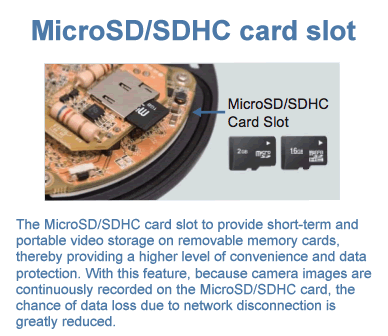

• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording

Video

• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 2560x1920, 60 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio IT9389-H(2.8mm): 53dB, IT9389-H(3.6mm): 51dB
• Dynamic Range 120 dB

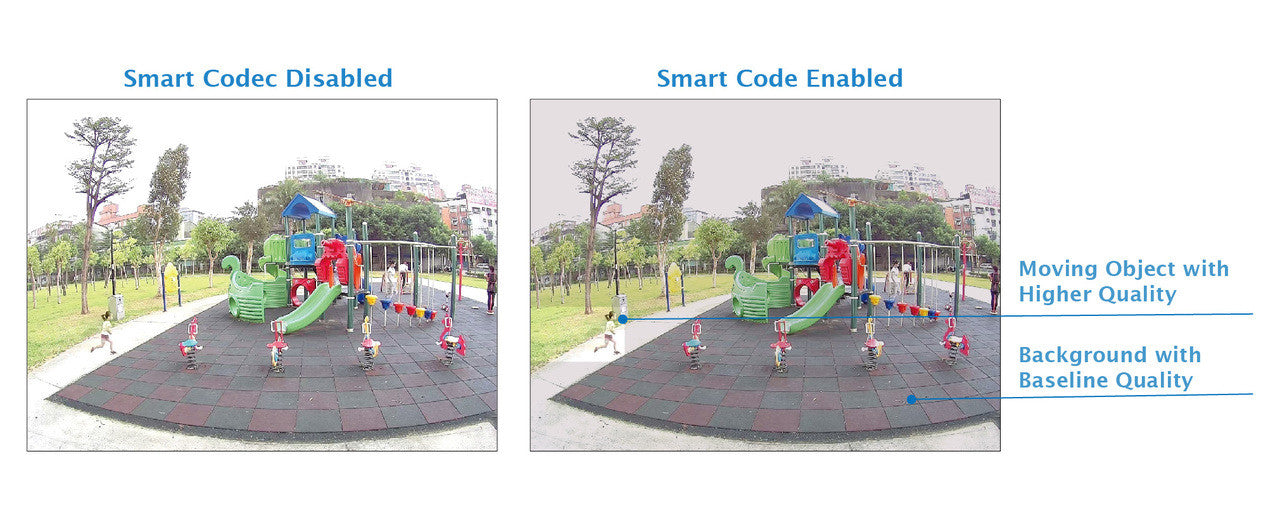

• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation

Audio

• Audio Capability One-way Audio
• Audio Compression G.711, G.726
• Audio Interface Built-in microphone
• Effective Range 5 meters

Network

• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported

Intelligent Video

• Smart Motion Detection Five-window video motion detection, human detection, time filter
• VCA Standard VCA (optional, including line crossing detection, field detection, loitering detection), VADP Package, Genetec package, Trend Micro IoT Security, Smart Motion Detection, Stratocast(support)
• Alarm and Event Alarm Triggers Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, shock detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
• Alarm Events Event notification via email, HTTP, FTP, NAS server, SD card, push notification, File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection*1
• LED Indicator System power and status indicator
• Power Input IEEE 802.3af PoE Class 0
• Power Consumption Max. 5.5 W (IR on), Max. 4.5 W (IR off)
• Dimensions Ø 122 x 99 mm (w/ mounting bracket), Ø 108 x 79 mm (w/o mounting bracket)
• Weight 392 g (w/ mounting bracket), 332 g (w/o mounting bracket)
• Casing IP66, IK08
• Safety Certifications CE, FCC Class A, UL, LVD, VCCI, C-Tick
• Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F), Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
• Humidity 90%
• Warranty 36 months

Overview

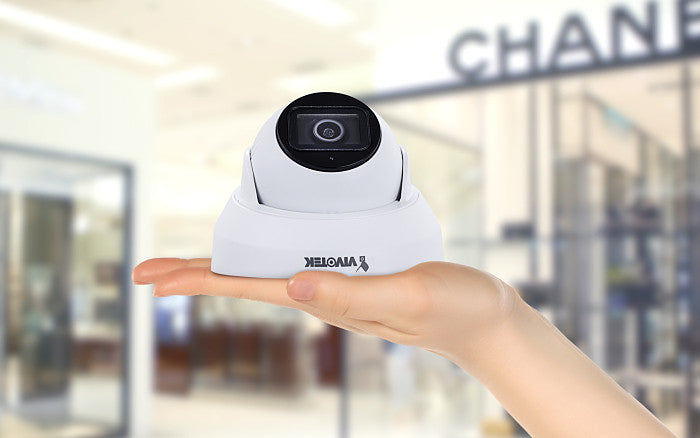

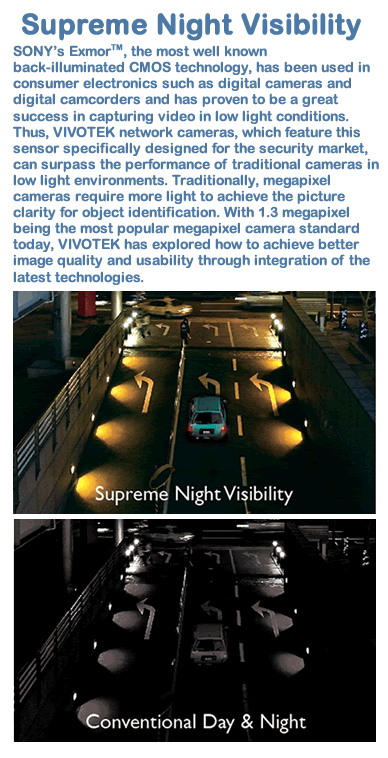

VIVOTEK’s IT9389-H is a H.265 outdoor turret network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IT9389-H is capable of capturing high-quality imagery in both high contrast and low light environments.

The IT9389-H offers a fixed-focal lens of 2.8mm/3.6mm for different user scenarios. No matter the focal length, the camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IT9389-H is encased in IP66 and IK08 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 compression, the IT9389-H is able to reduce bandwidth up to 90%* while maintaining supreme image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.
