Vivotek IT9389-HF2-v2 5MP 30fps, H.265, 2MP 60fps, 2.8mm, 30M IR, WDR Pro, SNV
Vivotek IT9389-HF2-B-v2 5MP 30fps, Black Body, H.265, 2MP 60fps, 2.8mm, 30M IR, WDR Pro, SNV

Vivotek

Vivotek IT9389-HF2-B-v2 5MP 30fps, Black Body, H.265, 2MP 60fps, 2.8mm, 30M IR, WDR Pro, SNV

$388.80
SKU: IT9389-HF2-B-v2
Quantity:
Link to Manufacturer's Page

Contact

  • 30 fps @ 2560x1920, 60 fps @ 1920x1080
  • WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
  • Built-in IR illuminators, Effective up to 30 meters
  • Smart IR Technology to Avoid Overexposure
  • Trend Micro IoT Security
  • Weather-proof IP66-rated and Vandal-proof IK08-rated Housing
  • 2.8mm Fixed Lens

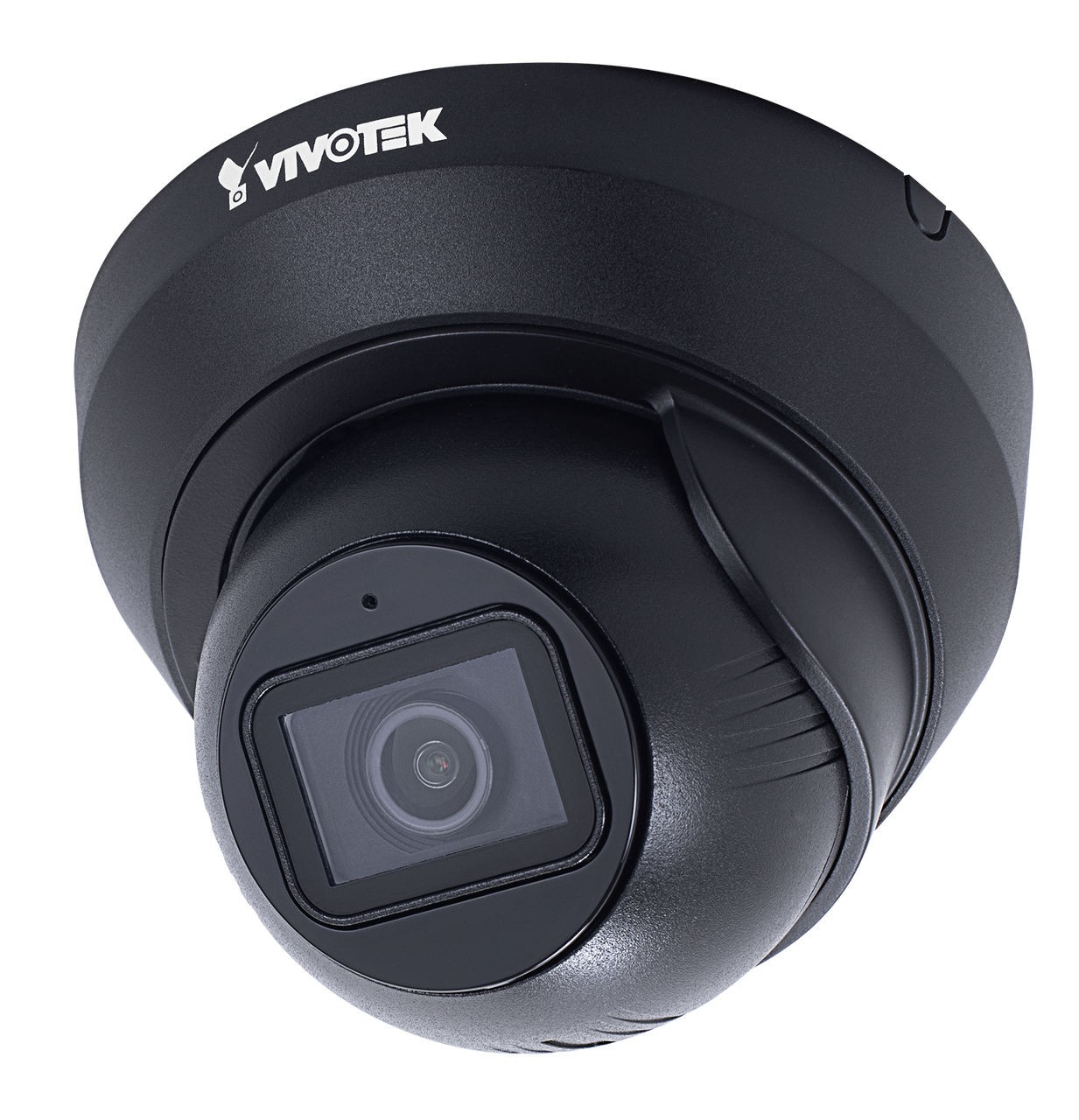

VIVOTEK’s IT9389-H-v2 is an H.265 outdoor turret network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560 x 1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IT9389-H-v2 is capable of capturing high-quality imagery in both high contrast and low light environments.

The IT9389-H-v2 offers a fixed-focal lens of 2.8mm and is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IT9389-H-v2 is encased in IP66 and IK08 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 compression, the IT9389-H-v2 is able to reduce bandwidth up to 90%* while maintaining supreme image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.

* Depending on scenes

System Information
Model
IT9389-H-v2
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
1 GB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Fixed-focal
Focal Length
f = 2.8 mm
Aperture
F2.0
Iris Type
Fixed iris
Field of View
103° (Horizontal)
76° (Vertical)
134° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination
0.06 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B/W)
0 lux with IR illumination on
Pan Range
359°
Tilt Range
75°
Rotation Range
180°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 2560x1920
60 fps @ 1920x1080
Maximum Streams
3 video streams* (Up to 8 configurable profiles)
* Stream 1: 2560x1920
* Stream 2: 1280x960, 800x600, 640x480
* Stream 3: 800x600, 640x480
S/N Ratio
55 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control(exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Smart Motion Detection
Five-window video motion detection, human detection, time filter (Without bounding box)
Smart VCA
Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
VADP Package
Deep Learning VCA (Smart Motion Detection, Smart VCA*), Trend Micro IoT Security (3-year free trial)
*License required. Free trial license is not supported.
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack
DORI (EN 62676-4 Standard)
Detect (25PPM/ 8PPF)
68.6 m (225.1 ft)
Observe (63PPM/ 19PPF)
27.2 m (89.3 ft)
Recognize (125PPM/ 38PPF)
13.7 m (45.0 ft)
Identify (250PPM/ 76PPF)
6.9 m (22.5 ft)
