Vivotek IT9389-HF2-v2 5MP 30fps, H.265, 2MP 60fps, 2.8mm, 30M IR, WDR Pro, SNV
Quantity:
Choose options
Quantity:
- 30 fps @ 2560x1920, 60 fps @ 1920x1080
- WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
- Built-in IR illuminators, Effective up to 30 meters
- Smart IR Technology to Avoid Overexposure
- Trend Micro IoT Security
- Weather-proof IP66-rated and Vandal-proof IK08-rated Housing
- 2.8mm Fixed Lens

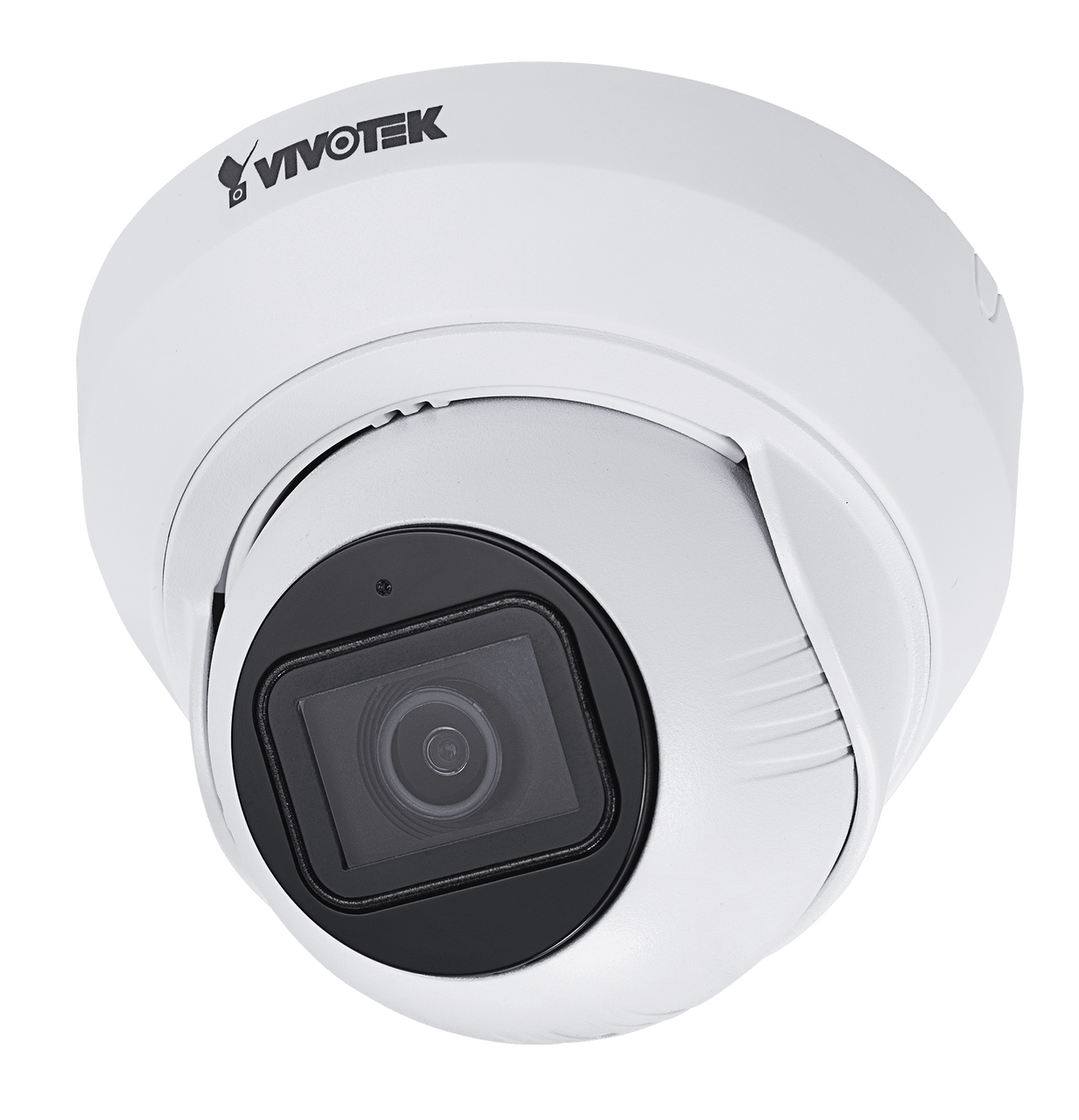

VIVOTEK’s IT9389-H-v2 is an H.265 outdoor turret network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560 x 1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IT9389-H-v2 is capable of capturing high-quality imagery in both high contrast and low light environments.
The IT9389-H-v2 offers a fixed-focal lens of 2.8mm and is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IT9389-H-v2 is encased in IP66 and IK08 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 compression, the IT9389-H-v2 is able to reduce bandwidth up to 90%* while maintaining supreme image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.
* Depending on scenes
System Information
- Model
- IT9389-H-v2
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 8 GB
- RAM
- 1 GB
Camera Features
- Image Sensor
- 1/2.7" Progressive CMOS
- Max. Resolution
- 2560x1920 (5MP)
- Lens Type
- Fixed-focal
- Focal Length
- f = 2.8 mm
- Aperture
- F2.0
- Iris Type
- Fixed iris
- Field of View
- 103° (Horizontal)
76° (Vertical)
134° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
- Minimum Illumination
- 0.06 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B/W)
0 lux with IR illumination on
- Pan Range
- 359°
- Tilt Range
- 75°
- Rotation Range
- 180°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Storage
- Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 2560x1920
60 fps @ 1920x1080
- Maximum Streams
- 3 video streams* (Up to 8 configurable profiles)
* Stream 1: 2560x1920
* Stream 2: 1280x960, 800x600, 640x480
* Stream 3: 800x600, 640x480
- S/N Ratio
- 55 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and constant bit rate control, Smart Stream III
- Image Settings
- General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control(exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Audio
- Audio Capability
- One-way Audio
- Audio Compression
- G.711, G.726
- Audio Interface
- Built-in microphone
- Effective Range
- 5 meters
Network
- Users
- Live viewing for up to 10 clients
- Security
- Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
- Protocols
- 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
- Smart Motion Detection
- Five-window video motion detection, human detection, time filter (Without bounding box)
- Smart VCA
- Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
- VADP Package
- Deep Learning VCA (Smart Motion Detection, Smart VCA*), Trend Micro IoT Security (3-year free trial)
*License required. Free trial license is not supported.
Alarm and Event
- Event Trigger
- Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
- Event Action
- Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
System Requirements
- Operating System
- Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Included Accessories
- Packing Contents
- Quick installation guide, alignment sticker, screw pack
DORI (EN 62676-4 Standard)
- Detect (25PPM/ 8PPF)
- 68.6 m (225.1 ft)
- Observe (63PPM/ 19PPF)
- 27.2 m (89.3 ft)
- Recognize (125PPM/ 38PPF)
- 13.7 m (45.0 ft)
- Identify (250PPM/ 76PPF)
- 6.9 m (22.5 ft)
