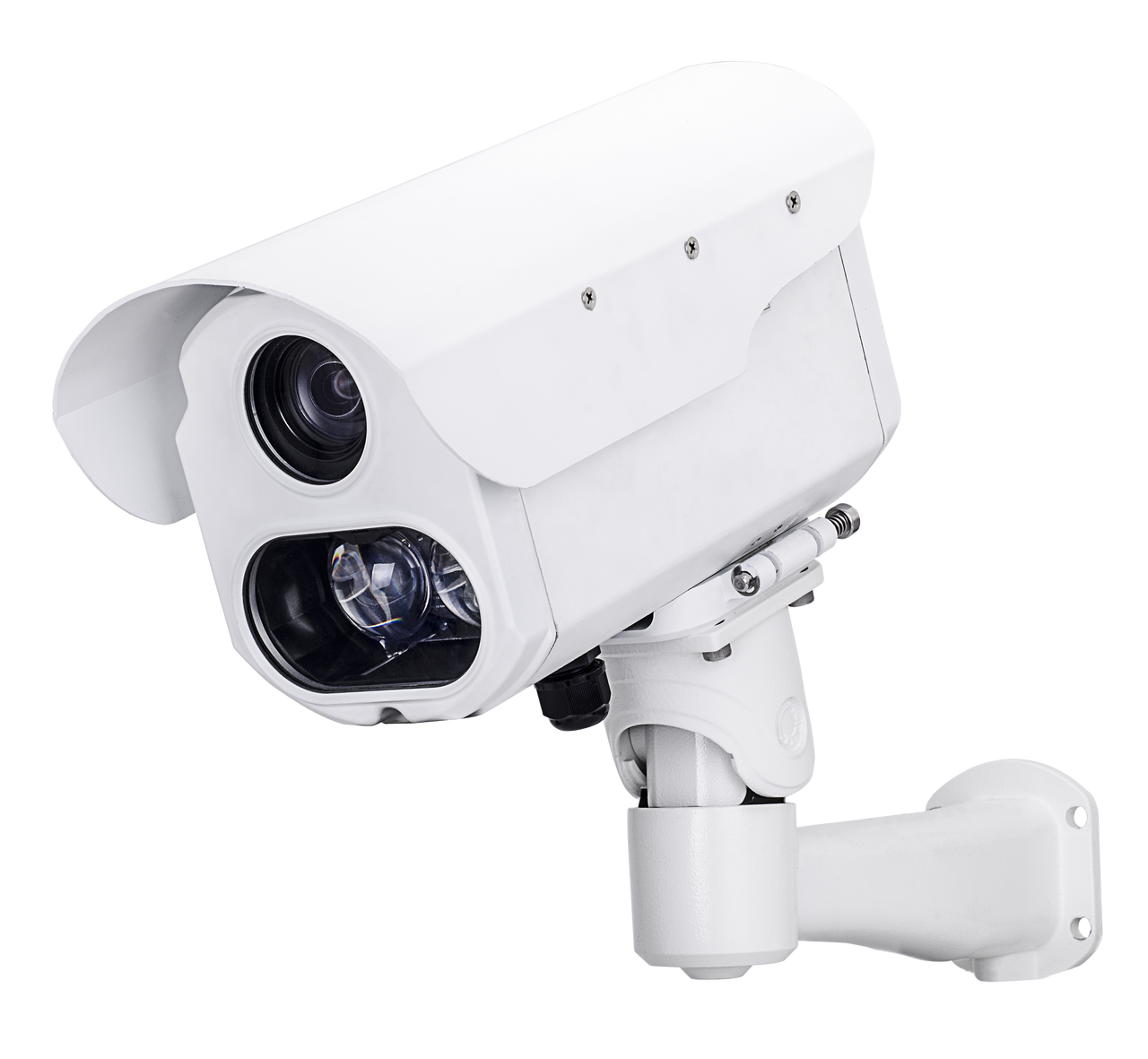

Vivotek IZ9361-EH 2MP H.265 Zoom Bullet Network Camera

Vivotek IZ9361-EH Features

• Max Resolution: 1920x1080 (2MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.26 Lux@ F1.6 (Color) 0.01 Lux @ F1.6 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: up to 150m
• Lens Type: Vari-focal
• Focal Length: f= 4.7 ~ 94 mm / F1.6 ~ F3.5
• Zoom: 128x digital zoom (4x on IE plug-in, 32x built-in)
• Iris: DC-iris
• Focus: Auto Focus
• Field of View: 2.9°~55.4° (Horizontal), 1.6°~32.6° (Vertical), 3.3°~62.7° (Diagonal)
• Compression Styles: H265 & H264 & MJPEG
• Frame Rate: H.265 & H.264: 60 fps @ 1920x1080 MJPEG: 30 fps @ 1920x1080
• WDR Technology: Yes, WDR Pro
• Image Settings: Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, EIS, 3DNR, defog, HLC, video rotation
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via external microphone input & audio output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP67- and NEMA 4X-rated housing Vandal-proof IK10-rated housing (camera body only)
• Dimensions: 147 x 375 x 322 mm
• Weight: 4.3 kg (9.47 lb)
• Operating Temperature: -50°C ~ 60°C (-58°F ~ 140°F)
• Operating Humidity: 90%
• Power/Consumption: DC 12V or IEEE 802.3at PoE Class 4 / Max 25.5 W (Heater on)
• Warranty: 3 years
• What's Included: User's manual, quick installation guide, Installation Wizard 2, VAST, Wall mount bracket, screws, waterproof connectors, quick installation guide, alignment sticker, L-wrench, software CD, desiccant bags, I/O combo cable

Vivotek IZ9361-EH Overview

VIVOTEK IZ9361-EH is a H.265 outdoor-ready network camera with 150m IR illuminators and a 20x optical zoom lens, providing a superb low light image for the most challenging situations. By adopting VIVOTEK's latest IR technology, VAIR (Vari-Angle IR), allows IZ9361-EH to automatically adjust the IR angle to the optical zoom delivering consistent IR images in all fields of view. The IZ9361-EH also features VIVOTEK's sophisticated Smart Stream II technology. This enables it to optimize quality for desired regions, therefore maximizing bandwidth efficiency. By combining H.265 compression technology and VIVOTEK's Smart Stream II technology, users can obtain bandwidth savings of up to 80%* compared to traditional H.264 systems. Additionally, in order to ensure full protection against both harsh environments and acts of vandalism, the IZ9361-EH is specifically designed with an IP67-, NEMA 4X- and IK10-rated housing, with a wide temperature range from -50°C to 60°C making it suitable for all outdoor surveillance applications such as highway traffic monitoring, city surveillance, and harbor patrol.
