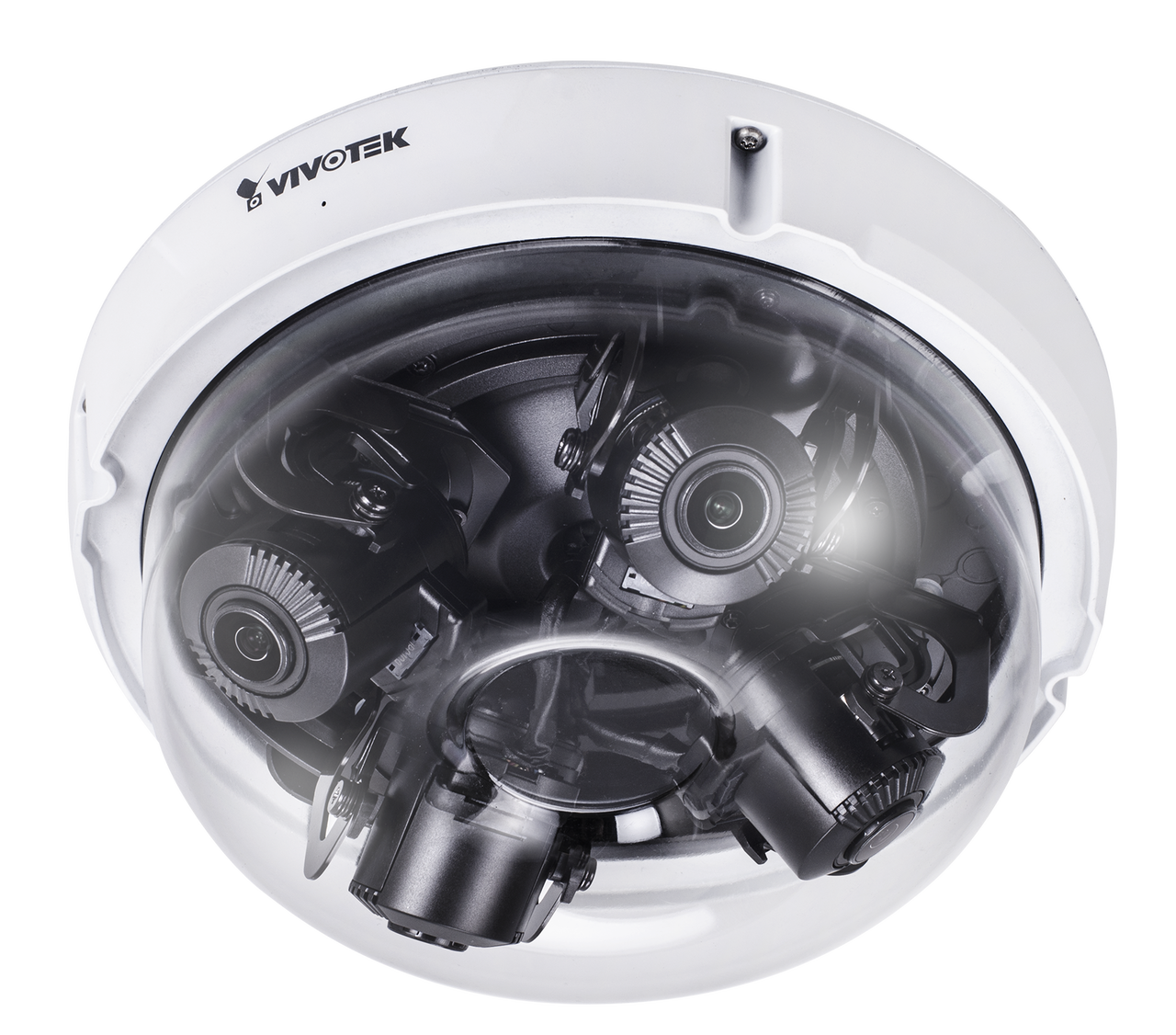

Vivotek MA8391-ETV 12MP (3MP x 4) Multi-Adjustable 360° Panoramic Dome Network Camera
Discontinued - Recommended Replacement: MA9321-EHTV
Choose options
Discontinued - Recommended Replacement: MA9321-EHTV
Discontinued - Recommended Replacement: MA9321-EHTV
Vivotek MA8391-ETV Features
- Max Resolution: 2048x1536 (12MP total, 4 x 3MP sensors)
- Image Sensor: 1/2.8" Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
- Minimum Illumination: 0.23 Lux @ F1.6 (Color) 0.01 Lux @ F1.6 (B/W)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Vari-Focal, Remote Focus
- Focal Length: f = 2.8 ~ 8 mm / F1.6
- Zoom: ePTZ; 48x digital zoom (4x on IE plug-in,12x built in)
- Focus: Auto
- Field of View: 51° ~ 105° (Horizontal), 37° ~ 72° (Vertical), 63° ~ 140° (Diagonal)
- Compression Styles: H.264 & MJPEG
-
Frame Rate: 7 fps @ 2048x1536
WDR Technology: WDR Enhanced - Image Settings: Adjustable resolution, quality and bitrate, Configurable video cropping for bandwidth saving; Smart Stream II, Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
- Built-in Microphone: Yes, 5m range
- Audio Capabilities: One-way via built-in mic only
- Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-board Storage: MicroSD/SDHC/SDXC card slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weather-proof IP66-rated, Vandal-proof IK10-rated
- Dimensions: Ø 210 x 110.4 mm, Ø 210 x 96.7 mm (without cover plate)
- Weight: 1,572 g
- Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
- Operating Humidity: 90% RH
- Power/Consumption: AC 24V IEEE 802.3at PoE Class 4 / Max 24W
- Warranty: 3 Years
- What's Included: MA8391-ETV, Screws / desiccant bag / double-side tape, Top mounting plate, Alignment sticker, Quick Installation Guide, T10 stardriver, Waterproof cable gland
- Please note: when connected to NVRs or VMS, multi-sensor cameras use as many channels as there are sensors in the unit
The MA8391-ETV is the most versatile product offering to date from VIVOTEK. The MA8391-ETV provides high resolution images through four independent sensors, with each sensor utilizing a remote focus lens. By having each sensor independent of each other, the MA8391-ETV can view four different regions simultaneously and therefore reduce the total number of cameras needed for surveillance, helping to reduce total installation time and costs.
Featuring four independent 3MP CMOS Sensors, the MA8391-ETV network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 2.8 to 8 mm remote focus lens and 3-axis design along a circular track to enable full 360° coverage. This enables the MA8391-ETV to capture every angle for comprehensive video coverage from a single IP address, making this camera ideally suited for surveillance in areas such as hallway intersections, building corners, parking garages/lots, and shopping malls.
In addition to its versatile coverage, the MA8391-ETV is armed with a robust IP66 and IK10-rated housing to enable the multidirectional camera to withstand rain and dust as well as to protect against vandalism or tampering.
