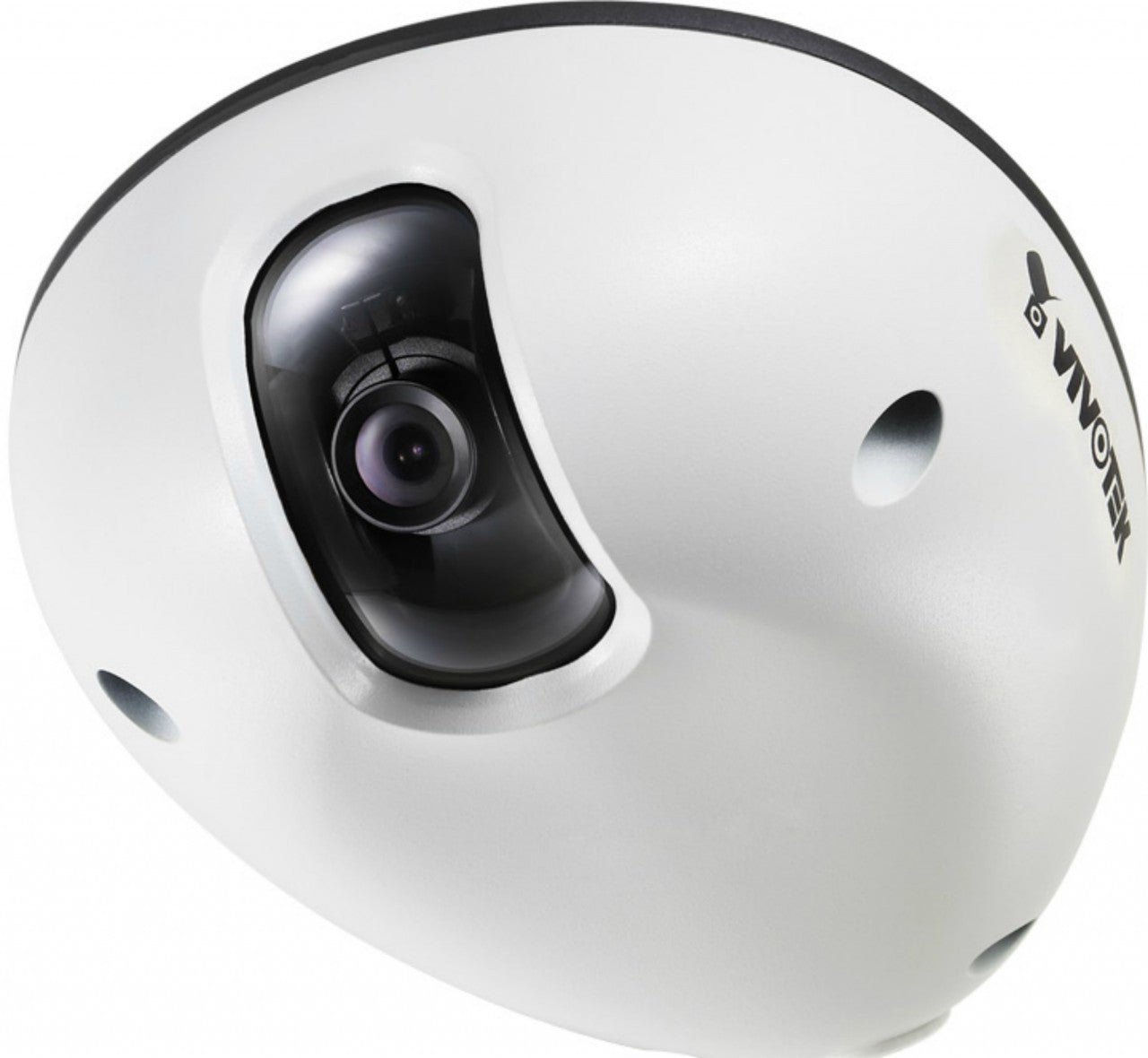

Vivotek MD7560 2 Megapixel Mobile Surveillance Camera

Discontinued, replaced by the MD8562.

Vivotek MD7560 Features

• Max Resolution: 1600x1200
• Image Sensor: 1/3.2" CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 0.6 Lux @ F2.0 (color)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed Board lens
• Focal Length: f=2.8 mm, F2.0
• Zoom: ePTZ
• Iris: N/A
• Focus: Manual
• Field of View: 98° (horizontal), 73° (vertical), 122° (diagonal)
• Compression Styles: MJPEG & MPEG-4
• Frame Rate: MPEG-4: Up to 20 fps at 1280x720, Up to 10 fps at 1600x1200, MJPEG: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200
• Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Supports privacy masks, BLC (Backlight compensation)
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: External microphone input, Supports audio mute
• Alarm/Event Management: Triple-window video motion detection, 1 D/I for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection, Temperature alarm trigger
• ONVIF: Yes
• Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
• Users: 10 clients on-line monitoring at the same time
• On-board Storage: Yes, MicroSD/SDHC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP67-rated housing, metal housing for vandal-proof
• Dimensions: 107mm (W) x 47mm (H) x 130mm (D)
• Weight: 450 g
• Operating Temperature: -25 ~ 50 °C (-13 ~ 122 °F)
• Operating Humidity: 90%
• Power: 802.3af Power-over-Ethernet (Class 1), Max. 4.3 W, Max. 7.5 W (with heater)
• Warranty: 2 Years
• What's Included: MD7560, screwdriver, screws, quick installation guide, alignment sticker, RJ45 female, software SD, warranty card

Vivotek MD7560 Overview

VIVOTEK MD7560 is a compact, 2-megapixel network camera geared toward transportation applications such as buses, trains, and other vehicles. With full EN50155 co-megapixelliance & IP67-rated design, the camera can withstand shock, vibration, humidity, dust, and te-megapixelerature fluctuations, maintaining stable and reliable video during vehicle movement. Furthermore, the vandal-proofmetal housing effectively provides robust protection from vandalism. As such, the combination of high resolution imaging and protective housing endows the MD7560 with the rugged reliability required to maximize passenger safety and optimize mobile surveillance. By utilizing high definition 1600x1200 resolution, the MD7560 can deliver extremely clear and detailed images, achieving accurate identification of people or objects with ease. Video footage of in-vehicle passenger activities or vehicle accidents captured with this camera can thus be used for post-event forensic evidence. With the tamper detection feature, the MD7560 becomes a truly robust and intelligent camera that keeps security staff notified once it suffers video loss from being blocked or spray-painted. PoE (Power-over-Ethernet) also allows the camera to be operated and powered with a single Ethernet cable, giving greater ease of installation. In order to facilitate on-board storage and data portability, the camera is also complete with a MicroSDHC card slot for local recording. The MD7560 also offers a broad spectrum of advanced features, including QoS for optimized bandwidth efficiency, IPv6 for next generation networks, te-megapixelerature alarm trigger, HTTPS encrypted data transmission, 802.1X authentication for secure network protection, and 32-CH ST7501 recording software.
