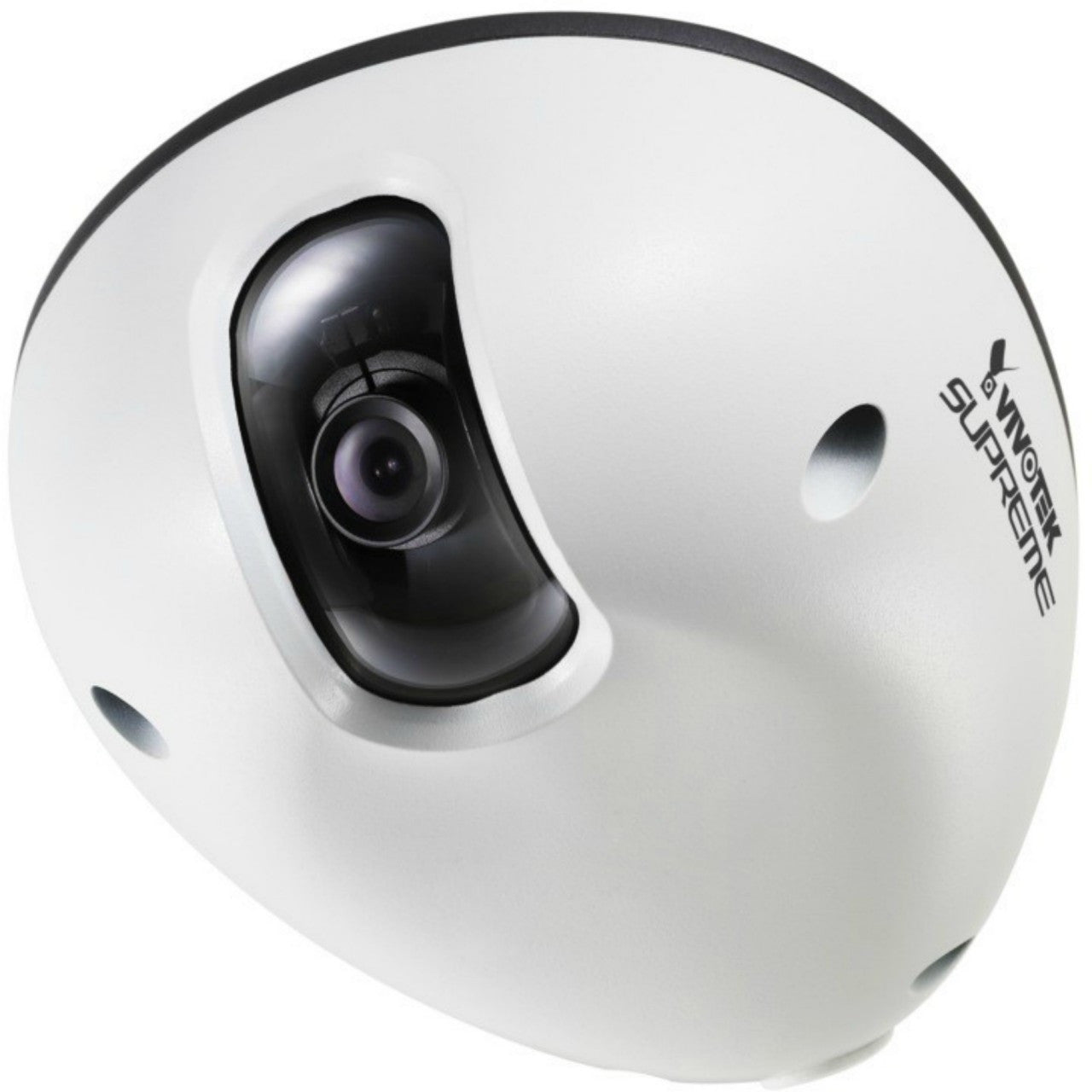

Vivotek MD8562 2MP Mobile Dome Network Camera

Sale price$365.00
Discontinued
SKU: MD8562

Discontinued; replaced by the MD8563-EH.

Vivotek MD8562 Features

  • Max Resolution: 1920x1080
  • Image Sensor: 1/2.7" progressive scan CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.2 Lux @ F2.0 (color)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Board Lens Fixed
  • Focal Length: f = 2.8 mm, F2.0
  • Zoom: ePTZ
  • Iris: N/A
  • Focus: Auto
  • Field of View: 110° (horizontal), 81.5° (vertical), 142° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30fps @ 1920x1080 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Supports privacy masks, BLC (Backlight compensation), WDR enhanced
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: External microphone input, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, MicroSD/SDHC Card Slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP67-rated housing, Vandal-proof IK10-rated metal housing
  • Dimensions: 130mm(D) x 107mm(W) x 47mm(H)
  • Weight: 450 g
  • Operating Temperature: -25 ~ 50 °C (-13 ~ 122 °F)
  • Operating Humidity: 90%
  • Power: 802.3af Power-over-Ethernet (Class 3), Max. 4.3 W (with heater 7.5 W)
  • Warranty: 3 Years
  • What's Included: MD8562, quick installation guide, software CD, warranty card

Vivotek MD8562 Overview

VIVOTEK MD8562 are compact, 2-Megapixel network cameras geared toward transportation applications such as buses, trains, and other vehicles. With full EN50155 compliance & IP67-rated design, the camera can withstand shock, vibration, humidity, dust, and temperature fluctuations, maintaining stable and reliable video during vehicle movement. Furthermore, the vandal-proof metal housing effectively provides robust protection from vandalism. As such, the combination of high resolution imaging and protective housing endows the MD8562 with the rugged reliability required to maximize passenger safety and optimize mobile surveillance. By utilizing high-definition 1920x1080 resolution, the MD8562 can deliver extremely clear and detailed images, achieving accurate identification of people or objects with ease. With WDR enhancement, users can identify image details in extremely bright or dark environments. Video footage of in-vehicle passenger activities or vehicle accidents captured with this camera can thus be used for post-event forensic evidence. With the tamper detection feature, the MD8562 are truly robust and intelligent cameras that keep security staff notified once suffering video loss from being blocked or spray-painted PoE (Power-over-Ethernet) also allows the MD8562 to be operated and powered with a single Ethernet cable, giving greater ease of installation. In order to facilitate on-board storage and data portability, the camera is also complete with a MicroSD/SDHC card slot for local recording. With such a broad spectrum of advanced features, the MD8562 are the best choices for mobile surveillance.
