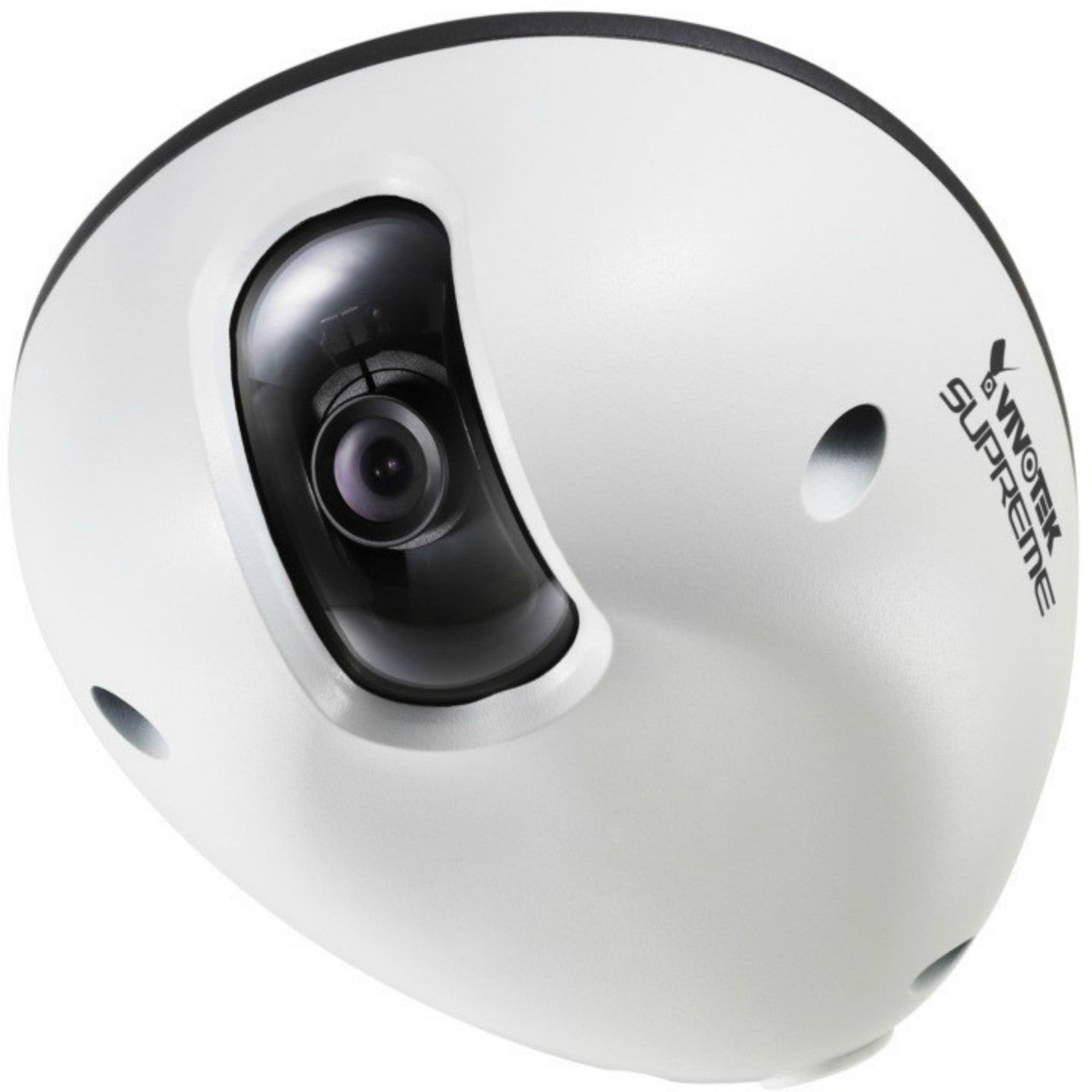

Vivotek MD8563-DEHF2 2MP DC Power Mobile Dome Network Camera

Vivotek MD8563-DEHF2 Features

• Max Resolution: 1920x1080
• Image Sensor: 1/2.7" progressive scan CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
• Minimum Illumination: 2.8mm: 0.21 Lux @ F1.8 (Color); 3.6mm: 0.23 Lux @ F2.0 (Color)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Board Lens Fixed
• Focal Length: 2.8mm / F1.8
• Zoom: ePTZ, 48x digital zoom (4x on IE plug-in,12x built in)
• Iris: N/A
• Focus: Auto
• Field of View: 14° (H), 65° (V), 119° (D)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 45 fps @ 1280x720
• Image Settings: Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3DNR, video rotation
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Audio input / Audio output (Full duplex) / Built-in microphone, External line output
• Alarm/Event Management: Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP67-rated housing, Vandal-proof IK10-rated metal housing, & EN50155 Compliance for Professional Mobile Surveillance
• Dimensions: 129 mm (D) x 107 mm (W) x 54 mm (H)
• Weight: 453g
• Operating Temperature: -40°C ~ 70°C (-40°F~ 158°F)
• Operating Humidity: 90%
• Power: DC 8~36V, Max. 4.2 W
• Warranty: 3 Years
• What's Included: MD8563-DEH, Quick installation guide, alignment sticker, screwdriver, accessories bag

Vivotek MD8563-EH Overview

VIVOTEK’s MD8563-EH is a compact 2-megapixel network camera geared toward transportation applications such as buses, trains, and other vehicles. With full EN50155 compliance & IP67-rated rugged design, the camera can withstand shocks, vibration, humidity, dust, and temperature fluctuations to maintain stable and reliable video during vehicle movement. Furthermore, the vandal-proof IK10-rated metal housing provides effective and robust protection from vandalism. This combination of high-resolution imaging and protective-housing endows the MD8563-EH with the rugged reliability required to maximize passenger safety and optimize mobile surveillance.

Featuring the Wide Dynamic Range Technology, WDR Pro, the MD8563-EH provides improved visibility in high-contrast lighting environments. In addition, 3D Noise Reduction Technology enables the camera to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise. Taken together, these features allow users to enjoy an increased level of image detail in bright as well as low-light environments.

Employing VIVOTEK’s Smart Stream II technology, the MD8563-EH can reduce both bandwidth and storage consumption by up to 50%* while maintaining high standards of image quality. PoE (Power-over-Ethernet) also allows the camera to be operated and powered with a single Ethernet cable, giving greater ease of installation. In order to facilitate on-board storage and data portability, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording. And to further add to the flexibility of this compact camera, in corridor scenarios, its video rotation feature can provide wider vertical coverage for more depth and a larger useful field of view.
