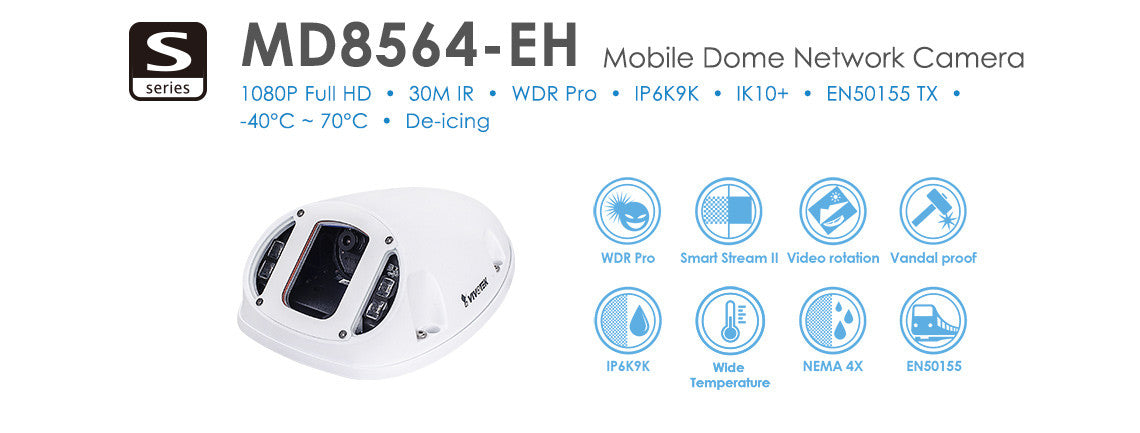

Vivotek MD8564-EH 2MP IR Mobile Dome Network Camera

The 6mm lens model is Special Order, please allow up to 4 weeks for shipment. Item is non-returnable, non-cancellable once ordered.

Vivotek MD8564-EH Features

• Max Resolution: 1920x1080
• Image Sensor: 1/2.7" progressive scan CMOS
• Day/Night: Yes

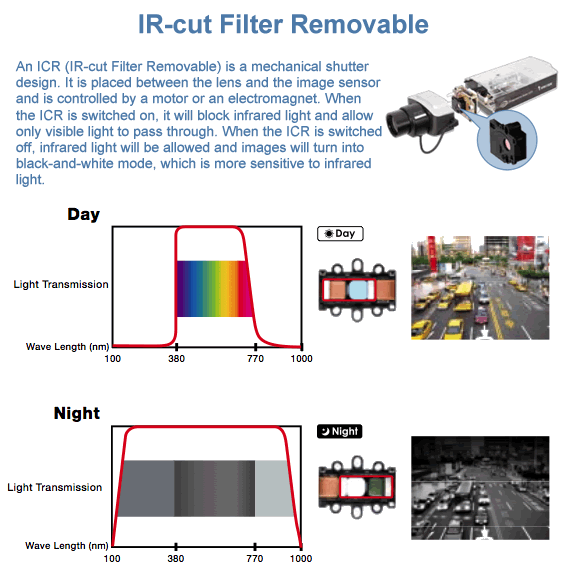

• Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
• Minimum Illumination: 0.18 Lux @ F2.0 (Color); 0.01 Lux @ F2.0 (B/W); 0 Lux with IR illumination on
• IR Illuminators: IR LED*4
• IR Illuminator Range: up to 30m
• Lens Type: Fixed
• Focal Length: f = 6 mm or 3.6 mm / F2.0
• Zoom: ePTZ, 48x digital zoom (4x on IE plug-in,12x built in)
• Iris: Fixed
• Focus: Auto
• Field of View: 57° (Horizontal), 30° (Vertical), 65° (Diagonal) (with 6mm lens)

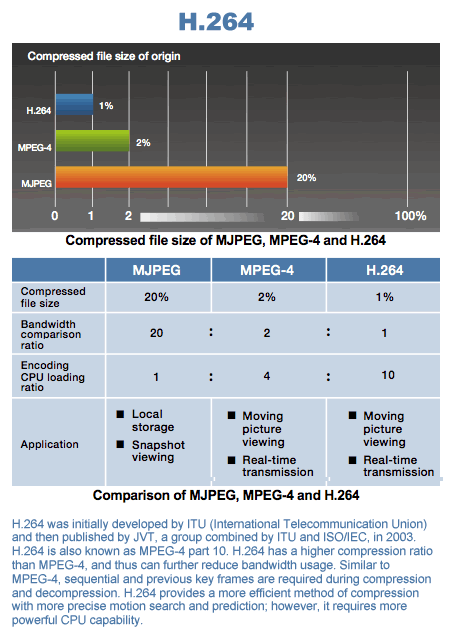

• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080, 45 fps @ 1280x720

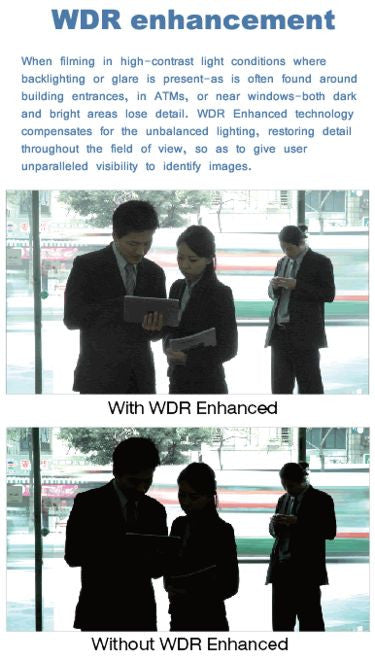

• WDR Technology: WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog
• Built-in Microphone: No
• Audio Capabilities: Two-way via External Microphone in / External line out
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD Card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD Card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients

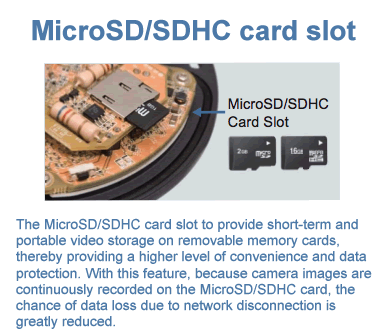

• On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP6K9K, IP68, IK10+, NEMA 4X
• Dimensions: 241.21 (D) x 161.77 (W) x 82.19 (H) mm
• Weight: 1,370 g (3.02 lb)
• Operating Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 90%
• Power: Camera: IEEE 802.3af PoE Class 0, Heater: DC 24V / Camera: Max. 10W/5.7W (IR on/off), Heater: 50W
• Warranty: 3 Years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker, screwdriver, accessories bag, software CD

Vivotek MD8564-EH Overview

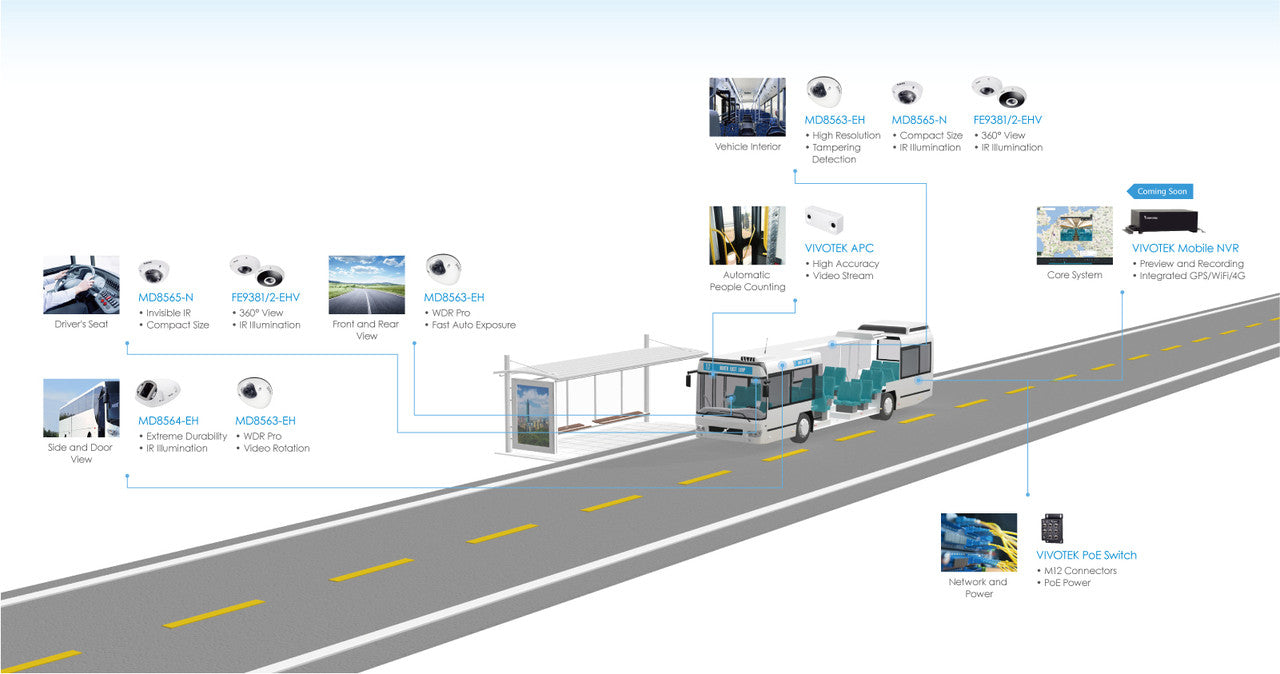

VIVOTEK’s MD8564-EH is a 2-megapixel network camera geared toward transportation applications and focused on rolling stock deployments. Designed specifically for mounting on a vehicle's exterior, the MD8564-EH functions either as a side-view camera (also known as a back-mirror camera or DOO camera) or a pantograph monitoring camera if mounted on the roof of the vehicle. In both options, the camera provides the driver with clear view of critical areas for incident monitoring and operational awareness. Armed with built-in IR illuminators, the MD8564-EH is also able to provide superior image quality for up to 30 meters in total darkness.

With full EN50155 TX compliance the camera can withstand shock, vibrations, humidity, and electromagnetic interference, maintaining reliable video preview and recording during all kinds of vehicle movement. Furthermore, the rugged metal housing provides effective and robust protection from harsh outdoor conditions; IK10+ rating guarantees high resistance to mechanical impact and IP6K9K rating ensures the camera is completely weather-proof. The MD8564-EH also features a wide operating temperature range -40°C ~ 70°C and a front glass heater for de-icing and de-frosting, making the camera suitable even for the harshest climates.

Finally, by deploying VIVOTEK’s Smart Stream II technology, the MD8564-EH can reduce both bandwidth and storage consumption by up to 50%* while maintaining high standards of image quality.
* Depending on scene monitored
