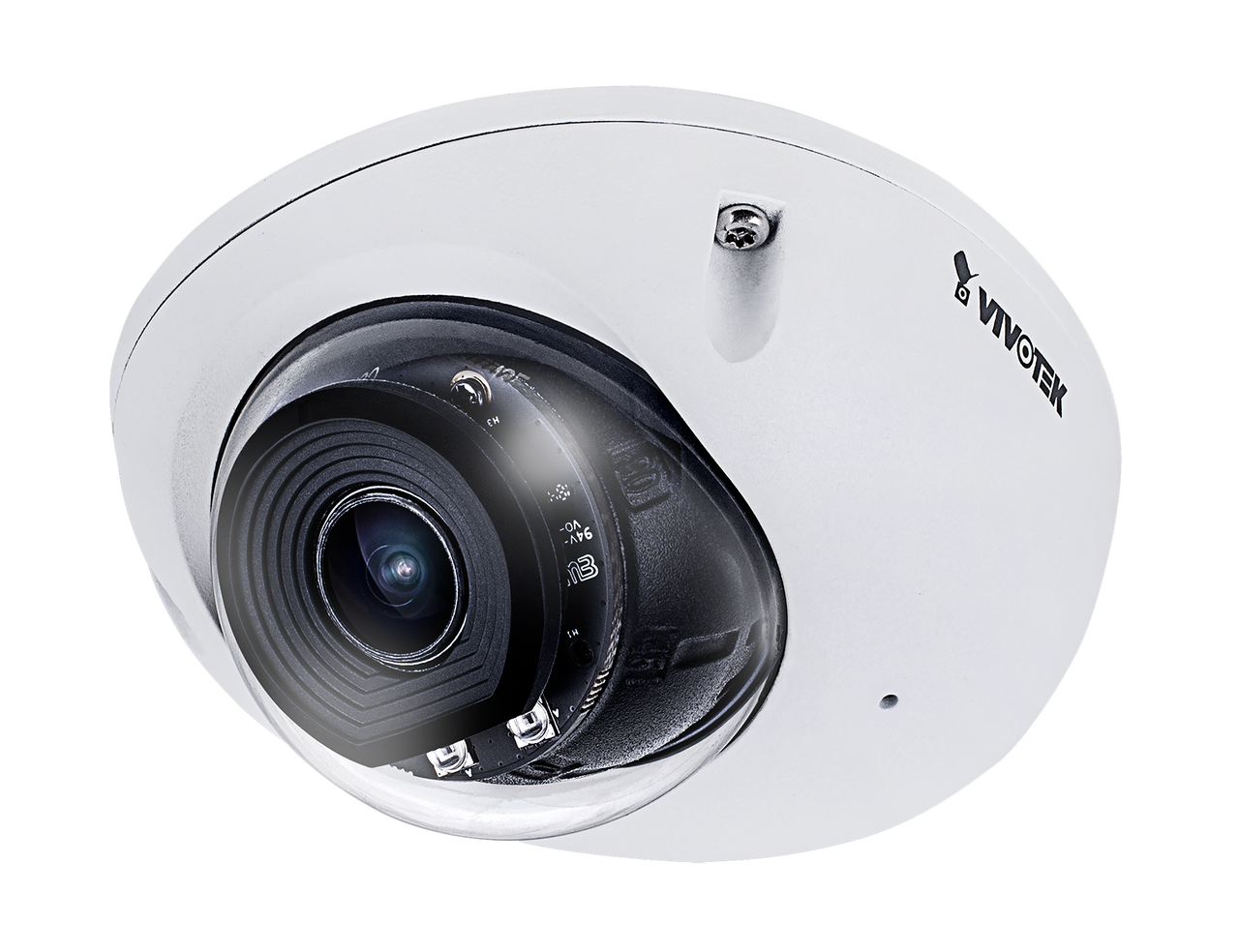

Vivotek MD9582-HF2 5MP, H.265, 20M IR, WDR Pro, IP67, IK10, EN50155

System Information

Model

MD9582-H(2.8mm)
MD9582-H(3.6mm)
MD9582-H(6mm)*
*Optional

CPU

Multimedia SoC (System-on-Chip)

Flash

1 GB

RAM

2 GB

Camera Features

Image Sensor

1/2.7" Progressive CMOS

Max. Resolution

2560x1920 (5MP)

Lens Type

Fixed-focal

Focal Length

MD9582-H(2.8mm): f = 2.8 mm
MD9582-H(3.6mm): f = 3.6 mm
MD9582-H(6mm)*: f= 6 mm
*Optional

Aperture

MD9582-H(2.8mm): F1.8
MD9582-H(3.6mm): F2.0
MD9582-H(6mm)*: F2.0
*Optional

Iris Type

Fixed Iris

Field of View

MD9582-H(2.8mm):
102° (Horizontal)
76° (Vertical)
129° (Diagonal)
MD9582-H(3.6mm):
83° (Horizontal)
61° (Vertical)
111° (Diagonal)
MD9582-H(6mm)*:
50° (Horizontal)
37° (Vertical)
63° (Diagonal)
*Optional

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

IR Illuminators

Built-in IR illuminators, effective up to 20 meters with Smart IR II, IR LED*2

Minimum Illumination

MD9582-H(2.8mm):
0.085 lux @ F1.8 (Color)
0.01 lux @ F1.8 (B/W)
0 lux with IR illumination on
MD9582-H(3.6mm):
0.1 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B/W)
0 lux with IR illumination on
MD9582-H(6mm)*:
0.1 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B/W)
0 lux with IR illumination on
*Optional

Pan Range

± 30°

Tilt Range

90°

Rotation Range

± 180°

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

Storage

Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)

Video

Video Compression

H.265, H264, MJPEG

Maximum Frame Rate

30 fps @ 2560x1920
60 fps @ 1920x1080

Maximum Streams

3 simultaneous streams (Up to 8 configurable profiles)

S/N Ratio

MD9582-H(2.8mm): 55 dB
MD9582-H(3.6mm:): 55 dB
MD9582-H(6mm:)*: 55 dB
*Optional

Dynamic Range

120 dB

Video Streaming

Adjustable resolution, quality and bit rate, Smart Stream III

Image Settings

General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, EIS, scene mode (Signal Light,Rail Track); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings

Audio

Audio Capability

One-way audio

Audio Compression

G.711, G.726

Audio Interface

Built-in microphone
External line input

Effective Range

5 meters

Network

Users

Live viewing for up to 10 clients

Security

Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

Protocols

802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP

Interface

10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded)

ONVIF

Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

Smart Motion Detection

Five-window video motion detection, people detection, time filter

Smart VCA

Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
*Optional, please contact transportation@vivotek.com for further support.

VADP Package

Trend Micro (3-year free trial), Deep Learning VCA (Smart Motion Detection, Smart VCA*)
*Optional

Alarm and Event

Event Trigger

Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

Event Action

Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP/SFTP, NAS server, SD card

System Requirements

Operating System

Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above
Internet Explorer 10/11

Other Players

VLC: 1.1.11 or above

Included Accessories

Packing Contents

Quick installation guide, alignment sticker, screwdriver, accessories bag
