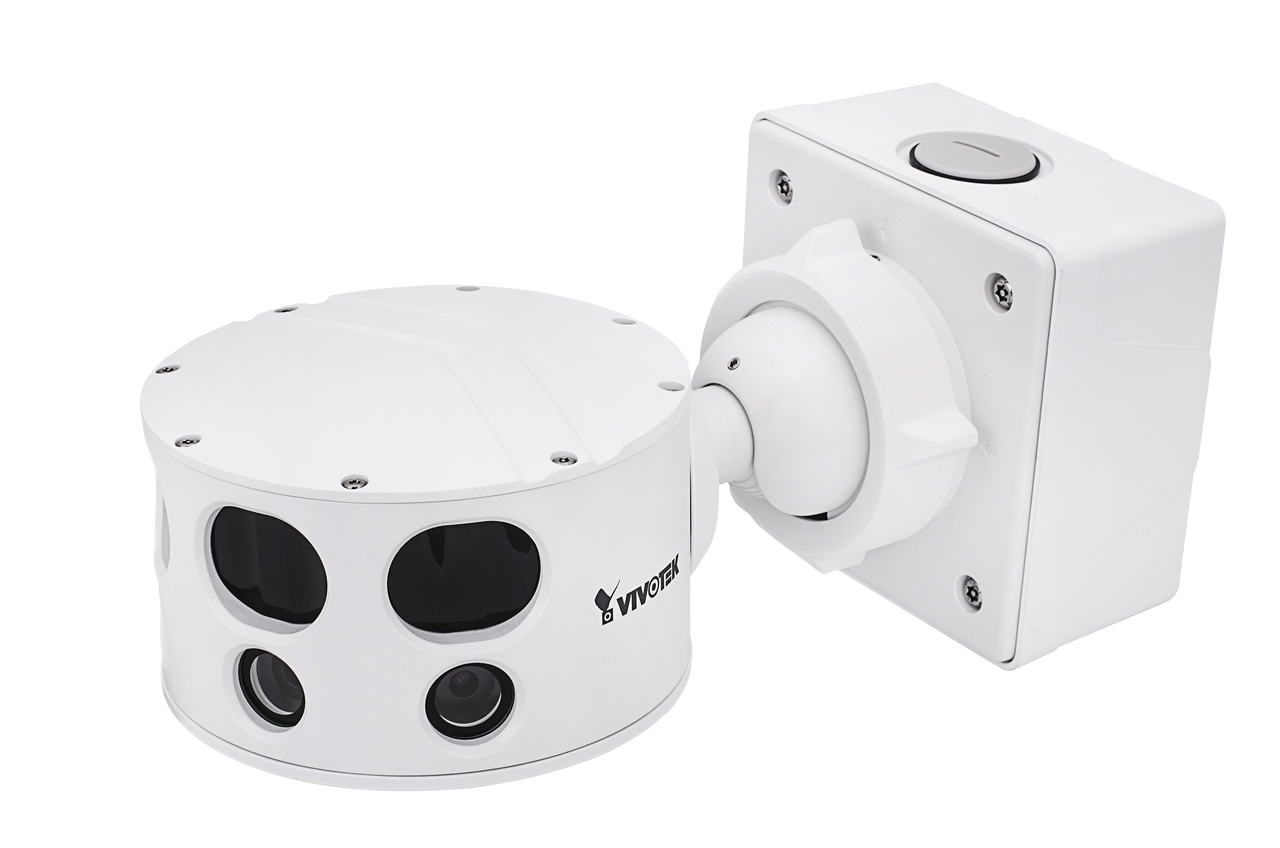

Vivotek MS8391-EV 12MP (3MP x 4) Multi-Sensor 180° Panoramic Network Camera
Discontinued - Recommended Replacement: MS9321-EHV
Choose options
Discontinued - Recommended Replacement: MS9321-EHV
Discontinued - Recommended Replacement: MS9321-EHV
Vivotek MS8391-EV Features
- Max Resolution: 7552x1416 (12MP total, 4 x 3MP sensors)
- Image Sensor: 1/2.8" Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
- Minimum Illumination: 0.23 Lux @ F1.6 (Color); 0.01 Lux @ F1.6 (B/W)
- IR Illuminators: Yes, 4 Built-in IR illuminators, effective up to 30 meters with Smart IR
- IR Illuminator Range: Up to 30m
- Lens Type: Fixed-focal
- Focal Length: f = 6 mm, F1.6
- Zoom: ePTZ; 48x digital zoom (4x on IE plug-in,12x built in)
- Iris: N/A
- Focus: Auto
- Field of View: 180° Horizontal & 34˚ (Vertical)
- Compression Styles: H.264 & MJPEG
-
Frame Rate: 7 fps @ 7552x1416
WDR Technology: Yes, WDR Enhanced - Image Settings: Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Smart Stream
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Audio input/output (full duplex), External microphone input & External line output
- Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection & audio detection; Event notification using HTTP, SMTP, FTP and NAS server, SD Card, File upload via HTTP, SMTP, FTP, NAS server and SD card
- ONVIF: N/A
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weather-proof IP66-rated, Vandal-proof IK10-rated
- Dimensions: N/A
- Weight: 2.8kg
- Operating Temperature: AC 24V: Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F) / PoE: -20°C ~ 60°C (-4°F ~ 140°F)
- Operating Humidity: 90% RH
- Power/Consumption: AC 24V: Max. 42.5W/14.7W (Heater on/off) / IEEE 802.3at PoE: Max. 22.5W/14.7W (Heater on/off)
- Warranty: 3 Years
- What's Included: Camera, AM-714 junction box, Screws / desiccant bag / double-side tape, Alignment sticker, Quick Installation Guide, Software CD, T25 L-wrench
- Please note: when connected to NVRs or VMS, multi-sensor cameras use as many channels as there are sensors in the unit
The VIVOTEK MS8391-EV is designed with multiple sensors providing higher resolution, maximizing the field of view and reducing the total number of cameras required, thereby saving on the installation costs. Featuring 4 x 3MP CMOS sensors, the multiple sensor network camera can monitor full horizontal views and deliver high-quality comprehensive coverage, making it an ideal outdoor surveillance solution with sharper images for more details. Covering a wide angle of 180 degrees, the MS8391-EV provides complete video security with no dead angles.
By having Multiple Sensors with 12-Megapixel resolution, users can ePTZ across the entire panoramic image for detailed views. With the powerful 3D Noise Reduction and Smart Stream technology, the MS8391-EV can also optimize quality for desired regions to maximize efficiency of bandwidth usage.
Additionally, as a professional day/night camera, it adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on the changes of light in the ambient environment. Finally, the MS8391-EV is armed with a robust IP66 and IK10-rated housing to enable the multisensor camera to withstand rain and dust as well as to protect against vandalism or tampering.
