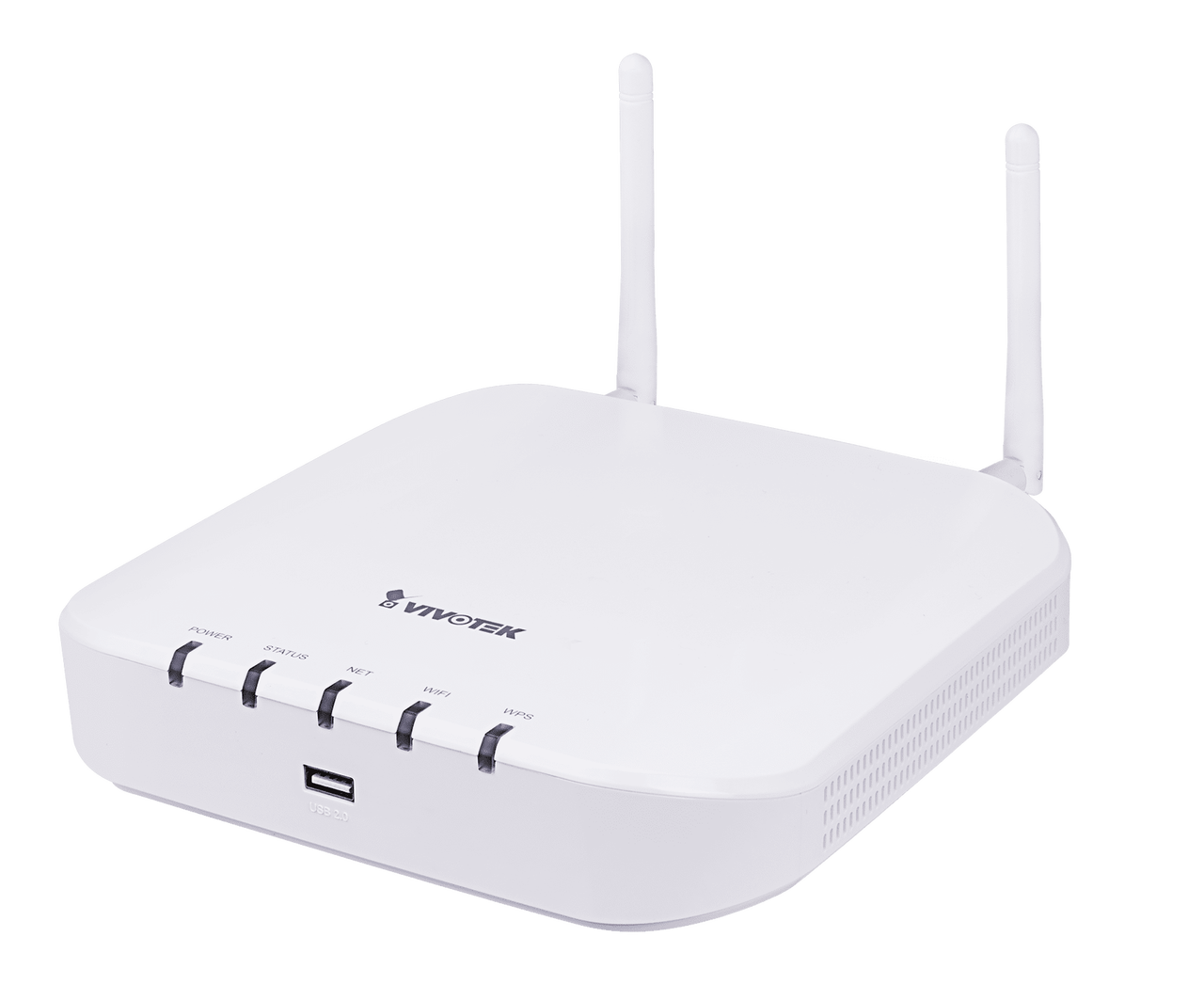

Vivotek ND8212W 4-CH Embedded Wi-Fi NVR

Vivotek ND8212W Features

System

• OS Embedded Linux
• CPU ARM Processor
• Flash 256 MB
• RAM 1 GB
• Watchdog Hardware + Software
• Power Restoration System Restart Automatically after Power Recovery

Recording

• Maximum Channel Up to 8 (4CH Wi-Fi + 4CH Wired)
• Record Throughput (MB) 24 Mbps, default settings: 1920X1080 @ 32 fps (4CH)
• Network Throughput (MB) 40 Mbps
• Audio Format G.711, G.726
• Video Format MJPEG, H.264
• Video Resolution UP to 8MP Camera

Storage

• HDD Max. Capacity 6 TB x 1 (not included)
• Disk Management Create, Format and Remove Disk
• HDD S.M.A.R.T

Video

• Video Output HDMI x 1
• Resolution 3840x2160, 1920x1080, 1280x720
• Graphics Decoder Hardware decoding
• Decoding Capacity H.264: 3840x2160 @ 30 fps (1CH), 1920x1080 @ 120 fps (4CH), 1280x720 @ 240 fps (8CH)
• Camera Position Change the viewcell position on the Live View screens

External Interface

• USB Interface Front: 1 (USB 2.0), Back: 1 (USB 2.0)
• Audio HDMI Audio Output

Network

• Network Interface 10/100Mbps Ethernet (RJ-45) x 1
• Wi-Fi 2.4Ghz 802.11 b/g/n
• Protocols IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter, WPS

Power

• Power Input DC 12V 3A
• Power Consumption Max. 15.6 W

LED Indicator

• LED Indicator Power, Status, NET, Wi-Fi, WPS

Mechanical

• Form Factor Desktop
• Operation Buttons Reset/WPS (Back)
• Dimensions 198 (W) x 200 (D) x 47(H) mm
• Weight 560 g (1.24 lb) (without HDD)
• Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
• Humidity 0 ~ 95%

General

• Safety Certifications CE, LVD, FCC, VCCI, C-Tick, MIC, NCC, BSMI
• Warranty 24 months

Accessories

• Power adaptor, QIG, 8 x HDD screw, 2 x HDD Brackets,1 x USB Mouse, 2 x 2.4Ghz Wi-Fi Antenna

Vivotek ND8212W Overview

VIVOTEK’s ND8212W is a H.264 4-CH Linux-based standalone Wi-Fi NVR that supports a single 3.5" HDD up to 6TB. The ND8212W supports remote access via VIVOTEK’s VIVOCloud and iViewer apps for both iOS and Android mobile devices, enabling users access to their video anytime, anywhere. The VIVOCloud app provides instant push notification and direct video playback functionalities when triggered by an alarm notification, providing seamless security for small-sized video surveillance applications.

Furthermore, the ND8212W is fully integrated with VIVOTEK’s VAST/VAST 2 VMS, so users can enjoy the easy-to-use IP surveillance system to protect lives and property more efficiently. With a compact size and fan-less design, the ND8212W is ideal for any small-scale video surveillance installation. It is incredibly flexible to install, supporting both wall mount and desktop placement, to increase efficiency of spatial utilization.

The free VIVOCloud app makes surveillance lightweight and portable, ensuring efficient operation. The latest P2P technology makes remote access even more convenient, by simply scanning the QR-code and installing the app, users can view live streams and play recorded clips with the intuitive interface anytime, anywhere. Armed with the Push Notification function, users will directly get an alert message on their Android/iOS mobile device and directly playback the video to check for any suspicious activity.

In order to provide users a highly intuitive experience, WPS allows for the IP cameras’ positions and connects to the NVR without entering long passphrases. Auto Setup Wizard then conveniently sets up a centralized configuration to reduce connection times to within 4 minutes.
