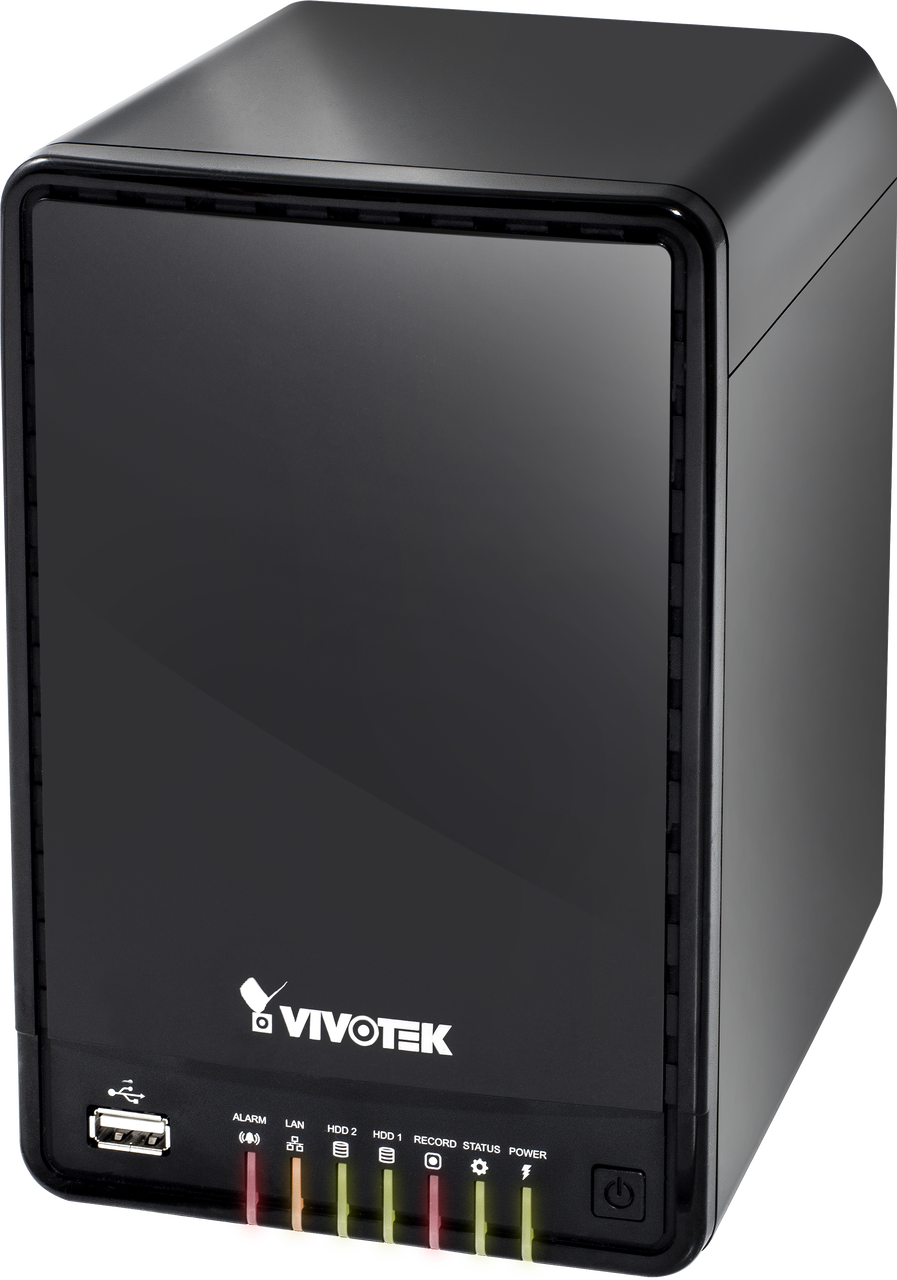

Vivotek ND8321 8-CH NVR Video Network Recorder

Vivotek

Vivotek ND8321 8-CH NVR Video Network Recorder

Sale price$335.00
Discontinued
SKU: ND8321

Contact

Discontinued; replaced by the ND8322P.

Vivotek ND8321 Features

  • CPU: ARM Processor
  • Camera Compatibility: Full integration with VIVOTEK network cameras
  • Maximum Number of Cameras/Channels: 8 channel selectable
  • Throughput: Max. 32 Mbps
  • Compression Styles: MJPEG, H.264 AVC
  • Video Export Formats: EXE
  • LiveView Display Layout: 8 Channel Multi Layout display: 1x1, 1x3 (Corridor Format), 2x2, 3x3, 1+5, 1+3, 1+1+3 (1P), 1+3+3 (1P)
  • Event Notification: Record, Email (Text), Email (Snapshot), FTP, Digital Output (Camera), Buzzer, PTZ Control (Go to Preset)
  • Alarm & Event Management: Motion Detecton, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full
  • Scheduled Recording: Yes
  • Event Recording: Yes
  • Manual Recording: Yes
  • Recording Frame Rate: Dependent on channels in use
  • Remote Access with PC Based Web Browser: Yes
  • Mobile App Support: iViewer for iOS & Android
  • PTZ Controls: Panel Control, Direction Control, Home, Iris, Preset, Patrol (Group)
  • Playback Features: Playback of recorded media with date calendar & storyboard
  • Hard Drive Bays: 2 x 3.5" HDD
  • Max TB per HD Bay: 4 TB
  • USB Ports: Front: 1 (USB 2.0), Back: 1 (USB 2.0)
  • Ethernet Ports: 1 x RJ-45 LAN Port
  • Display Port(s): 1 x HDMI for Full HD local display
  • Dimensions (W x H x D): 121 mm (W) X 167.67 mm (D) X 185.9 mm (H)
  • Weight: .92 kg (2.03 lb)
  • Operating Temperature: 0 ~ 40˚C
  • Operating Humidity: 0 ~ 95%
  • Power Source / Consumption: DC 12V 5A / Max. 60 W
  • Warranty: 2 years
  • What's Included: Power Adapter, Power Cord, Quick installation guide, Warranty card, H.D.D. Screws x 4, H.D.D. Brackets x 2, USB Mouse, CD (User's Manual, Quick Installation Guide (QIG), Installation Wizard 2, ST7501)

Vivotek ND8321 Overview

VIVOTEK ND8321 is a compact Linux embedded 8-CH standalone desktop NVR designed for any small-scale video surveillance installation. ND8321 achieves non-screwdriver installation, and facilitates "One Button Setup" with its plug & play and auto setup functionality. Supporting Full HD HDMI local video output, users can control the GUI OSD interface via mouse & keyboard, eliminating the need for a separate PC to view video or to playback from the NVR. The new local dislpay design - Auto Adaptive Stream will dynamically modify Stream 2 resolution of a camera to best fit the display resolution according to the layout type, performing an efficient display. Fisheye dewarp is also designed in ND8321. ND8321 supports software dewarp of VIVOTEK fisheye cameras, allowing seamless display in a fisheye surveillance scenario. Together with VAST CMS and ST7501 VMS, users can set up an easy-to-use IP surveillance system with ease. VIVOTEK also provides the mobile application, iViewer, for both iOS and Android handheld devices, enabling users to monitor live video anytime, anywhere.
